YOKOGAWA WT5000 User Manual

9-5
IM WT5000-02EN
Double Motor
4.

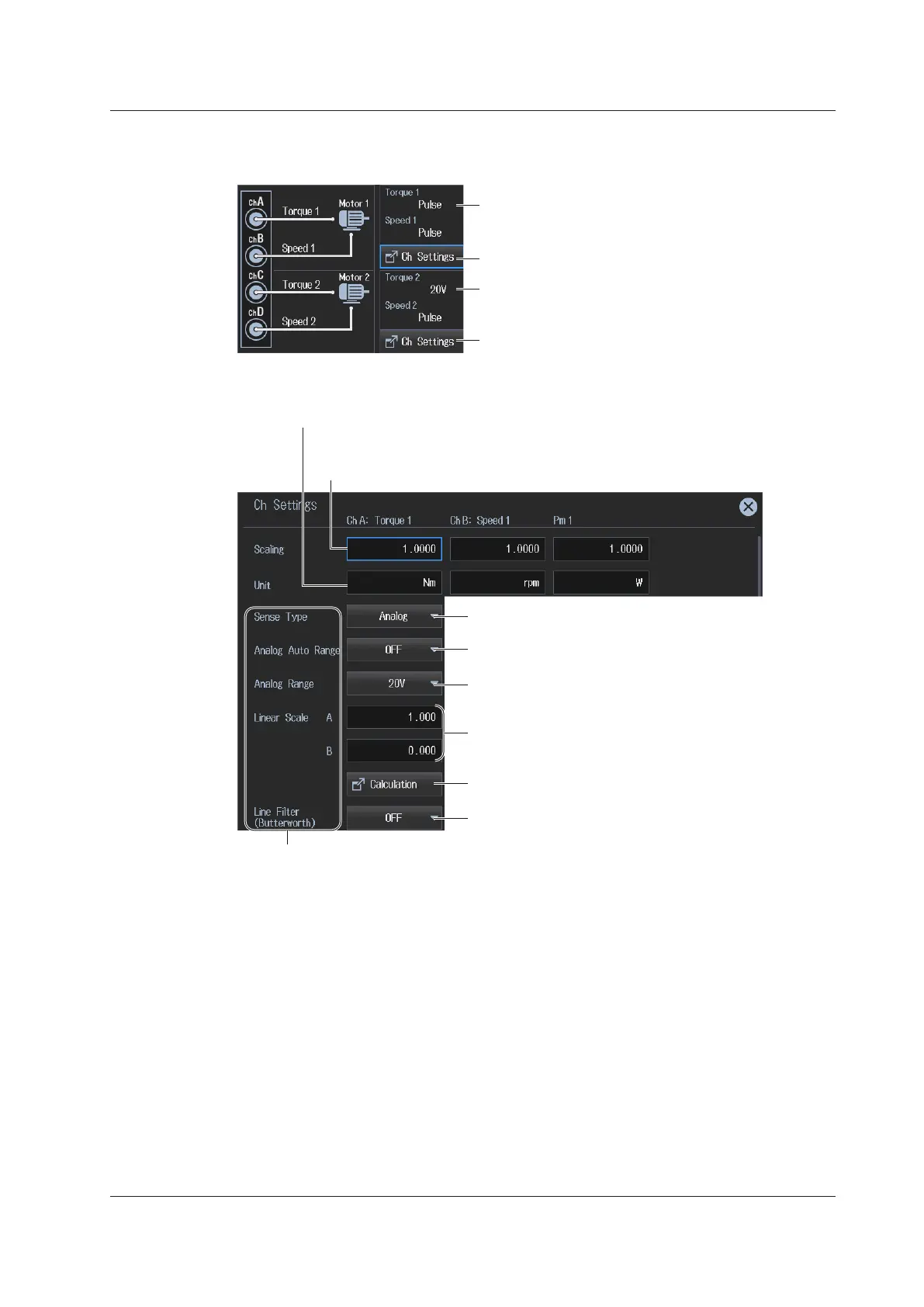

Tap Ch Settings. A double motor setup screen appears.
Motor1 Ch Settings button
Shows the Motor1’ s torque signal input range.
The torque signal appears when Sense Type is set to Analog.
Motor2 Ch Settings button
Shows the Motor2’ s torque signal input range.
The torque signal appears when Sense Type is set to Analog.
Double motor setup screen
Set the scaling factor (0.0001 to 99999.9999).
Set the scaling factor that is used to convert the signal from the revolution sensor or
torque meter to speed (rotating speed), torque, and Pm (motor output).
Set the unit (up to 8 characters).
Set the speed, torque, and Pm units.
Set the input signal type (Analog, Pulse).
Set the type of signal (Torque) applied from the torque meter.
Turns auto range on and off
Set the fixed range (20V, 10V, 5V, 2V, 1V).
You can set these when Sense Type is set to Analog.
Set the linear scale
(A: 1.000 m to 1.000 M; B: −1.000 M to 1.000M).
Set A (the slope) and B (the offset).
Computes A and B
Set the line filter (OFF, 1kHz, 500Hz, 100Hz).
9.1 Configuring Motor Evaluation and Auxiliary Input Settings

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
