YOKOGAWA WT5000 User Manual

1-3
IM WT5000-02EN
Note
• You can also display the input settings overview screen by moving the cursor on the Input (Basic) tab
using the arrow keys and then pressing SET.
• You can also display the setup menu screen from the navigation window that appears immediately after
power-on.
Displays the setup menu screen
Navigation window

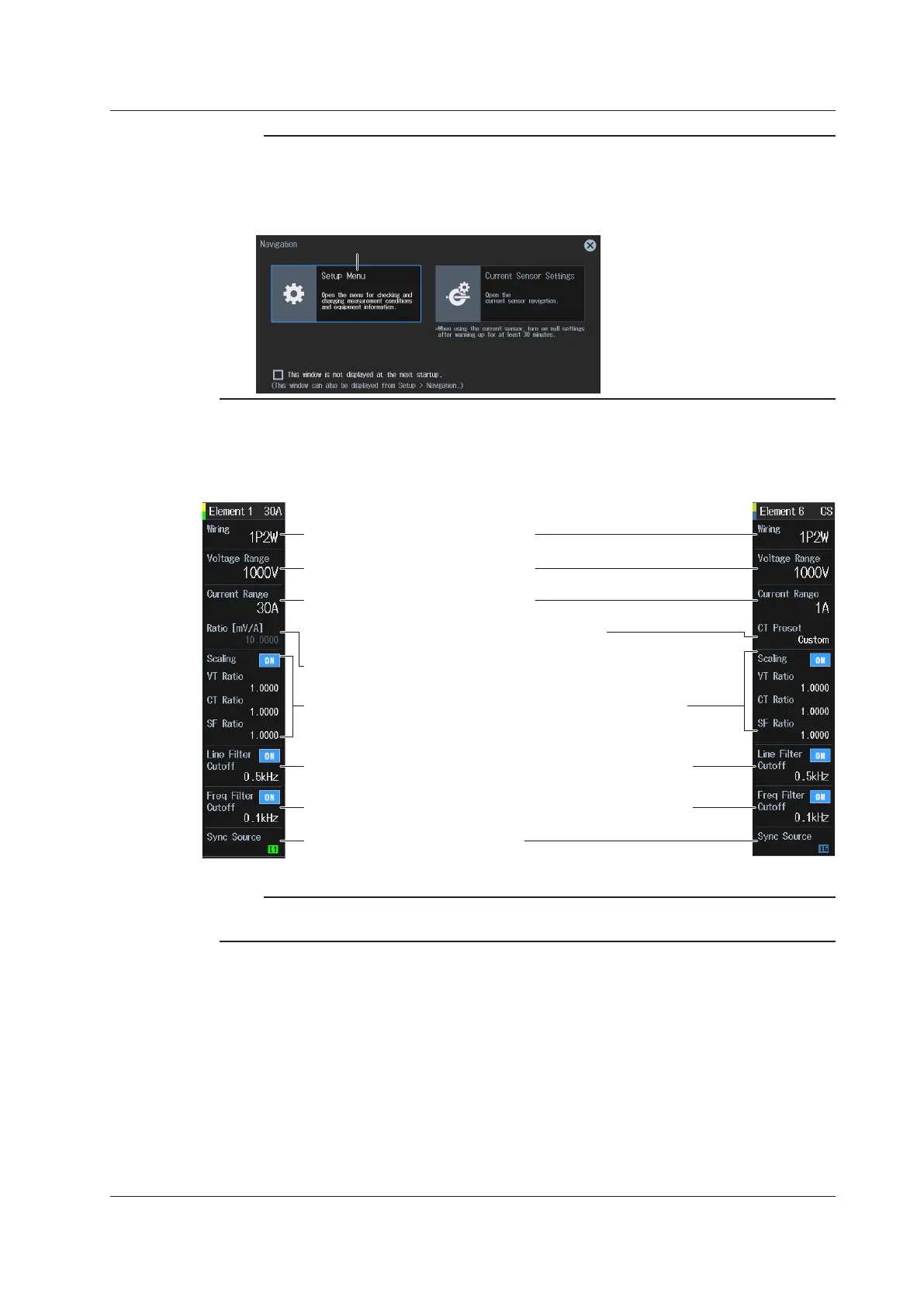

Configuring Input Elements
You can edit settings by tapping the setting buttons in each input element area of the overview screen.
Set the sync source (see section 2.8).
►
“Measurement Period (Sync Source)” in the features guide
Set the wiring system (see section 2.1).
► “Wiring System (Wiring)” in the features guide
Set the voltage range (see section 2.2).
► “Voltage Range (Voltage)” in the features guide
Set the current range (see section 2.2).
► “Current Range (Current)” in the features guide
Configure the external current sensor (see section 2.3).
► “External Current Sensor On/Off (Ext Sensor)” in the features guide
Set the voltage transformer (VT) and current transformer (CT) ratios
(see section 2.4). ► “Scaling (Scaling)” in the features guide
Configure the line filter and frequency filter settings (see section 2.7).
► “Line Filter (Line Filter)” in the features guide
Configure the line filter and frequency filter settings (see section 2.7).
► “Frequency Filter (Freq Filter)” in the features guide
Configure the current sensor (see section 2.2).
► “Current Measurement Terminal (Terminal)” in the features guide
When the input element is 760901 or 760902 When the input element is 760903
Note
You can also edit the settings by moving the cursor on each setting button using the arrow keys and then
pressing SET.
1.2 Input Settings Overview

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
