YOKOGAWA WT5000 User Manual

2-12
IM WT5000-02EN
2.3 Configuring the Current Sensor
Procedure Using the Menu Icons
You can also use the menu icons shown on the right side of the screen to set the external current
sensor range.
1.
Tap the Range menu icon . A Range menu appears in the sub menu area on the right side
of the screen.
By tapping the displayed items, you can specify the same settings as when using the keys explained
earlier.
Note
For details on the Range menu, see page viii.

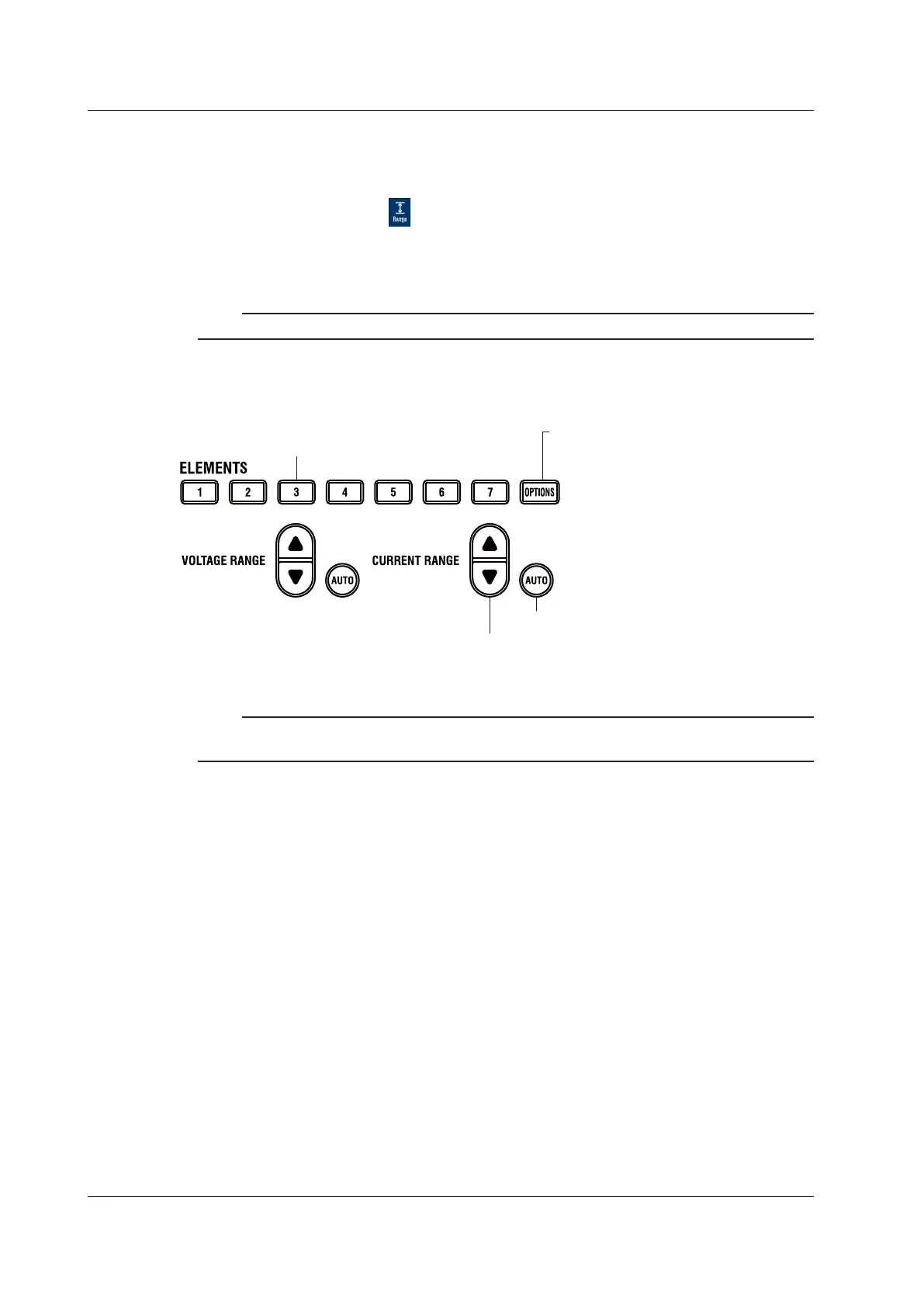

Procedure Using Keys
You can also use the front panel keys to set the external current sensor range.
Select the element to be configured (1 to 7).
Select the external current sensor range (fixed).
You can select from the valid measurement ranges
selected in section 2.5.
Set the external current sensor range to auto.
Select options.
See “Procedure Using Keys” in section 9.1.
(This is not used in this section.)
Note
To turn the external current sensor on and off or set the sensor conversion ratio and other details, use the
Setup menu.

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
