YOKOGAWA WT5000 User Manual

v
IM WT5000-02EN

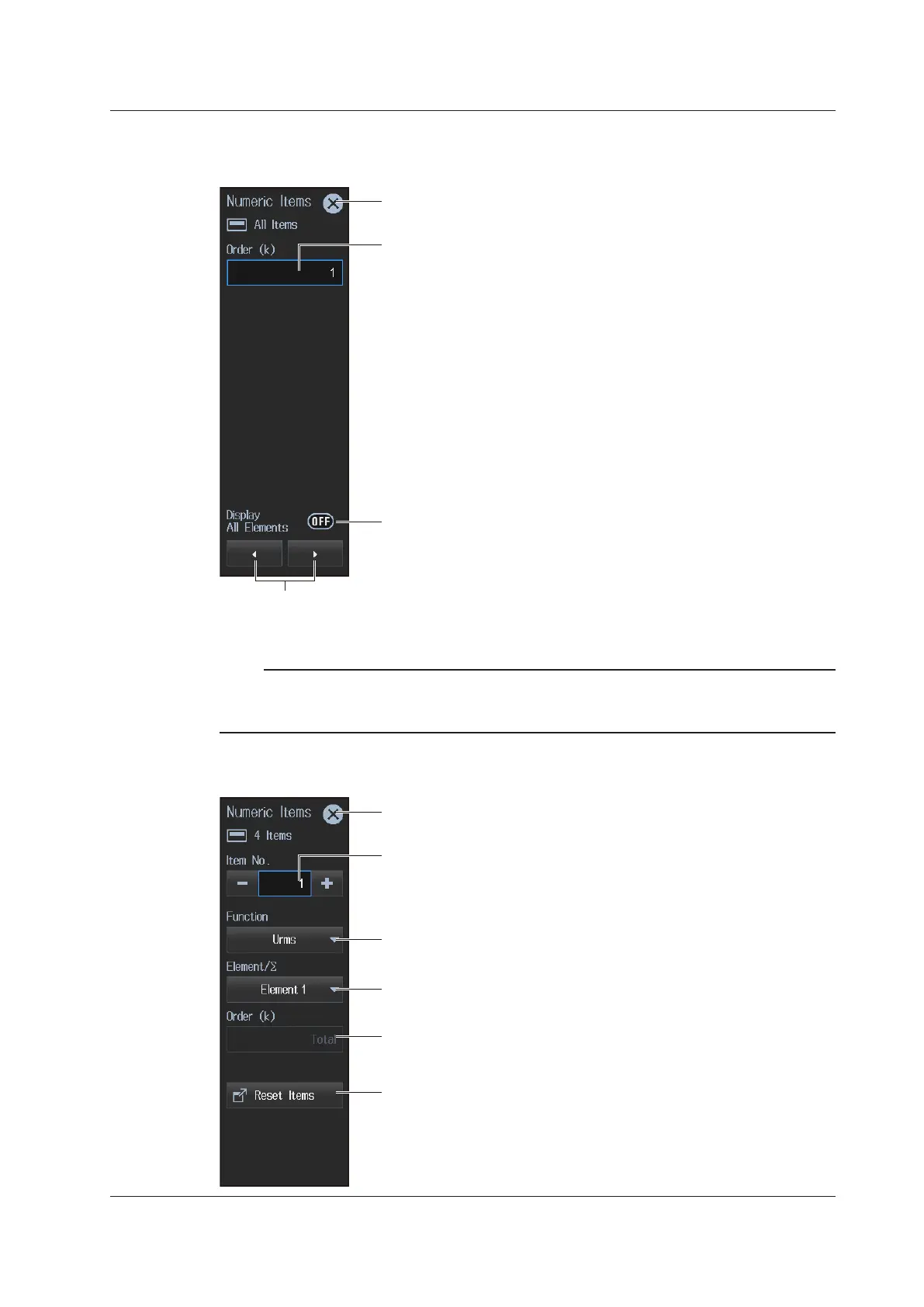

Switching the Displayed Items (Item)
On the All Items Display
Set the harmonic order (Total, 0-500).
You can set this setting only when you have selected the page of a
measurement function that includes a harmonic order (pages 9 and 10).
For details on how to switch pages, see page 3-1.
Closes the menu
Turns the display of numeric data of all elements or all wiring units on
and off
If the total number of elements or wiring units is 8 or more, set this to ON
when you want to display the numeric data of all elements or all wiring units.
Turns the display frame on and off
Scroll the screen horizontally to change the displayed element or wiring unit. You can
use these when Display All Elements is set to OFF.
Note
On the All Items display, you cannot select individual displayed items and change their measurement
function, element, or wiring unit. If you switch to the Matrix display, you can change the measurement
functions, elements, and wiring units using the displayed table (see the previous page).
On the 4-, 8-, and 16-Value Displays
Select the displayed item number.
On the 4-, 8-, and 16-value displays, the number increases from the upper
left to the lower right of the screen.
You can also tap the measurement display screen (see page vii).
Closes the menu
Set the displayed item.
Set the displayed measurement function (see section 3.1).
Selects the input element or wiring unit to be configured
Selects the harmonic order to be set
This is for the harmonic display (see section 5.2).
Resets the displayed items.
(See page vii.)
Menu Icons

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
