YOKOGAWA WT5000 User Manual

vi
IM WT5000-02EN

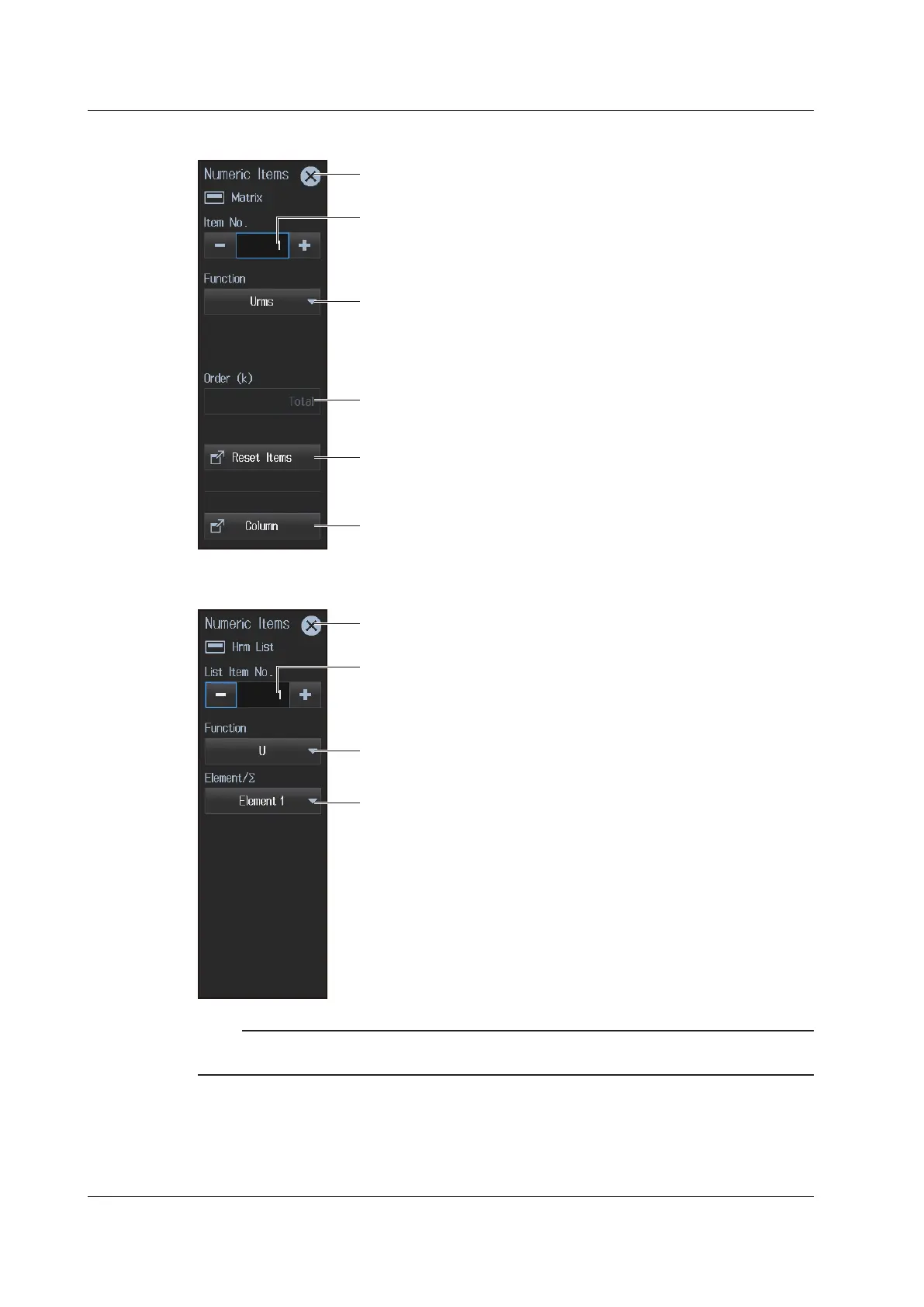

On the Matrix Display
Select the displayed item number (displayed row).
The number increases from top to bottom on the matrix display.
Example: If you select 3, the third row from the top is displayed.
You can also tap the measurement display screen (see page vii).
Closes the menu
Selects the harmonic order to be set
This is for the harmonic display (see section 5.2).
Resets the displayed items.
(See page vii.)
Configure the columns to display.
Set the number of columns to display the matrix. (See section 3.1.)
Set the displayed item.
Set the displayed measurement function (see section 3.1).
On the Hrm List Single or Hrm List Dual Display
Select the displayed harmonic data column.
This is for Hrm List Dual.
Select 1 (left column) or 2 (right column).
You can also tap the measurement display screen (see page vii).
Closes the menu
Selects the input element (Element1 to Element7) or
wiring unit (ΣA, ΣB, ΣC) to be configured
Set the displayed item.
Set the displayed measurement function (see section 3.1).
Note
On the harmonics list displays, you can change the measurement function, element, and wiring unit for the
selected list, but you cannot change these settings for each individual displayed item.
Menu Icons
