On the Hrm List Single or Hrm List Dual Display

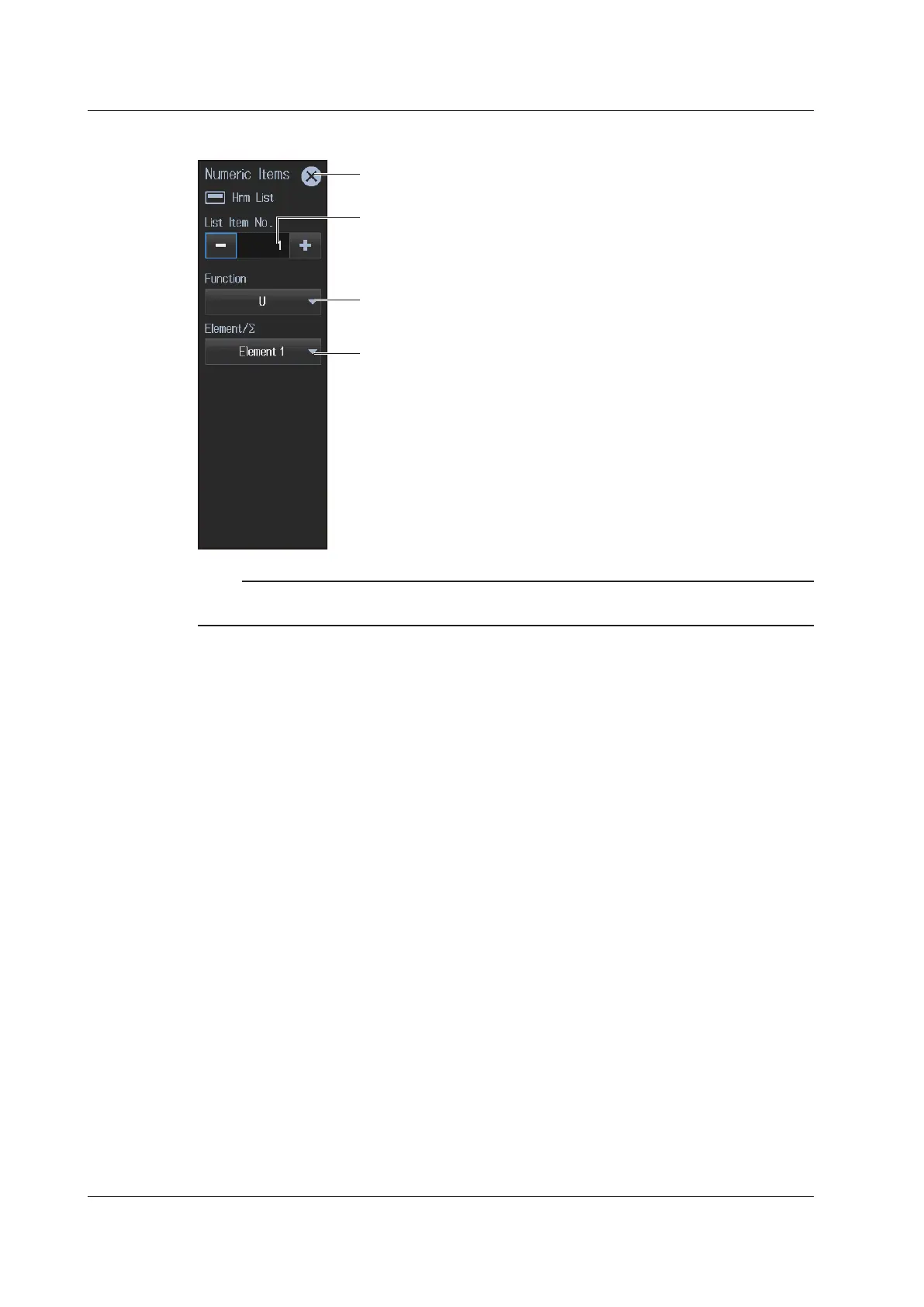

Select the displayed harmonic data column.
This is for Hrm List Dual.
Select 1 (left column) or 2 (right column).
Closes the menu
Set the displayed items.
You can set the following items for displaying measurement functions.
• Harmonics: See section 5.2
Selects the input element or wiring unit to be configured
• Input element options
When the displayed item is set to something other than motor evaluation:
Element1 to Element7
When the displayed item is set to motor evaluation: Motor1 to Motor4
• Wiring unit options: ΣA, ΣB, ΣC
Note
On the harmonics list displays, you can change the measurement function, element, and wiring unit for the
selected list, but you cannot change these settings for each individual display item.
3.1 Setting the Display Format

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
