Resetting the Displayed Items
You can clear the displayed items (no data “----”) or return them to the preset displayed items.
Closes the menu
Set the reset pattern (Element Origin, Function Origin,
Clear Current Page, Clear All Pages).
Executes reset

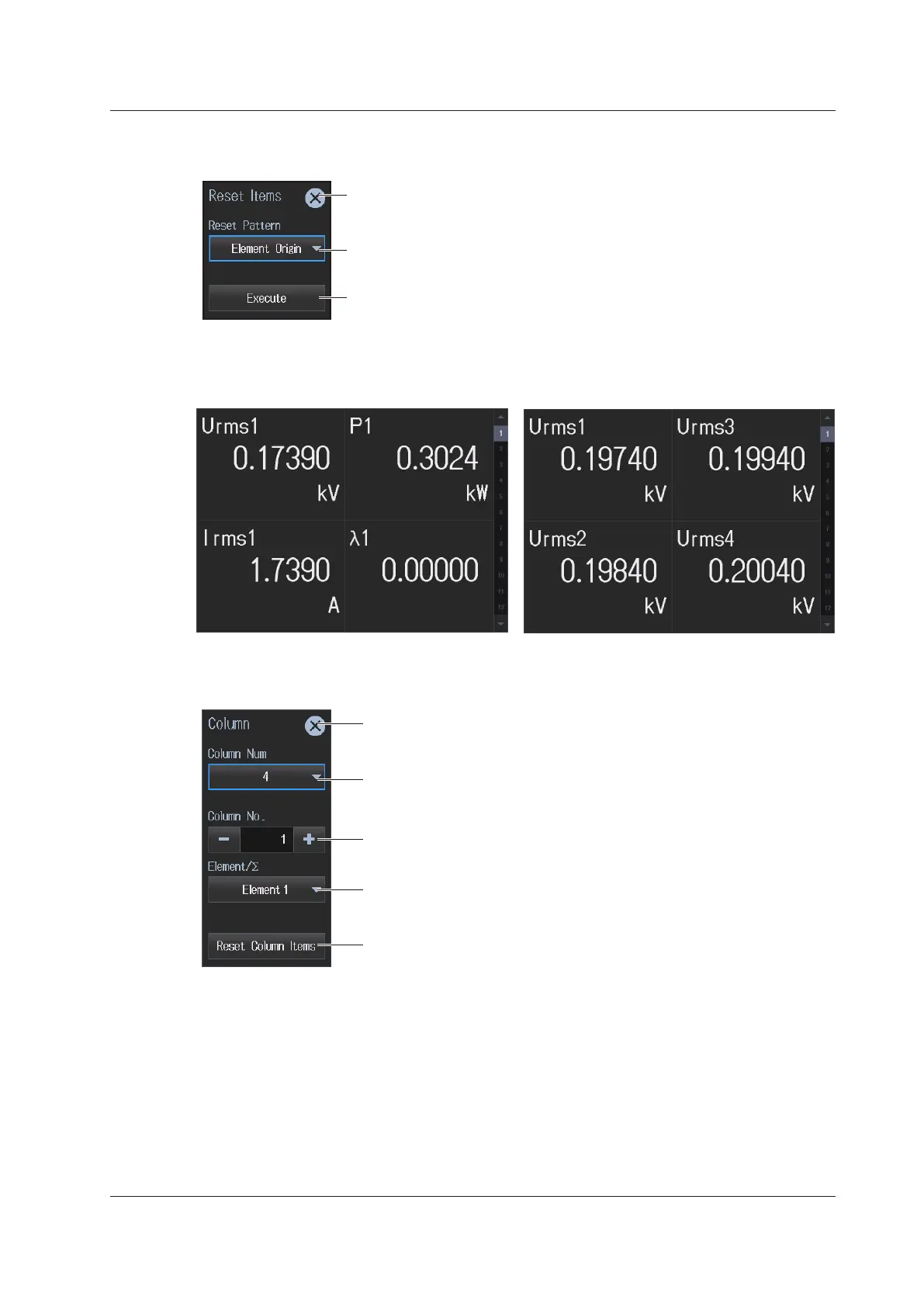

Reset Patterns
Element Origin pattern (1 element on 1 page) Function Origin pattern (1 function on 1 page)
The screen is a display example of element 1. The screen is a display example of voltage.
Configuring the Columns to Display
You can configure this on the Matrix display.
Select the displayed item number (displayed column).
The number increases from left to right on the matrix display.
Example: If you select 3, the third column from the left is displayed.
Closes the menu
Resets displayed items
Selects the input element (Element1 to Element7) or
wiring unit (ΣA, ΣB, ΣC) to be configured
Set the number of columns (4, 7).
