11.4. Recorder – Internal Recorder Data Extraction
Recorder is used to download binary data files from the optional internal recorder. Note: This
software was formerly named SonRecW.
• Recorder establishes communication and displays a directory of the files currently stored on
the ADVField’s internal recorder.
• You select the files you wish to download and where to place them.
• Recorder enters a special download mode at a higher baud rate (usually 115200) and
downloads the specified files.
The Recorder window is divided into several areas (Figure 14).
• The top area shows communication parameters.
• The gray area on the left displays program status.
• The white area on the right displays a directory of the files on the internal recorder.
• The area on the lower right contains control buttons and shows the destination path.

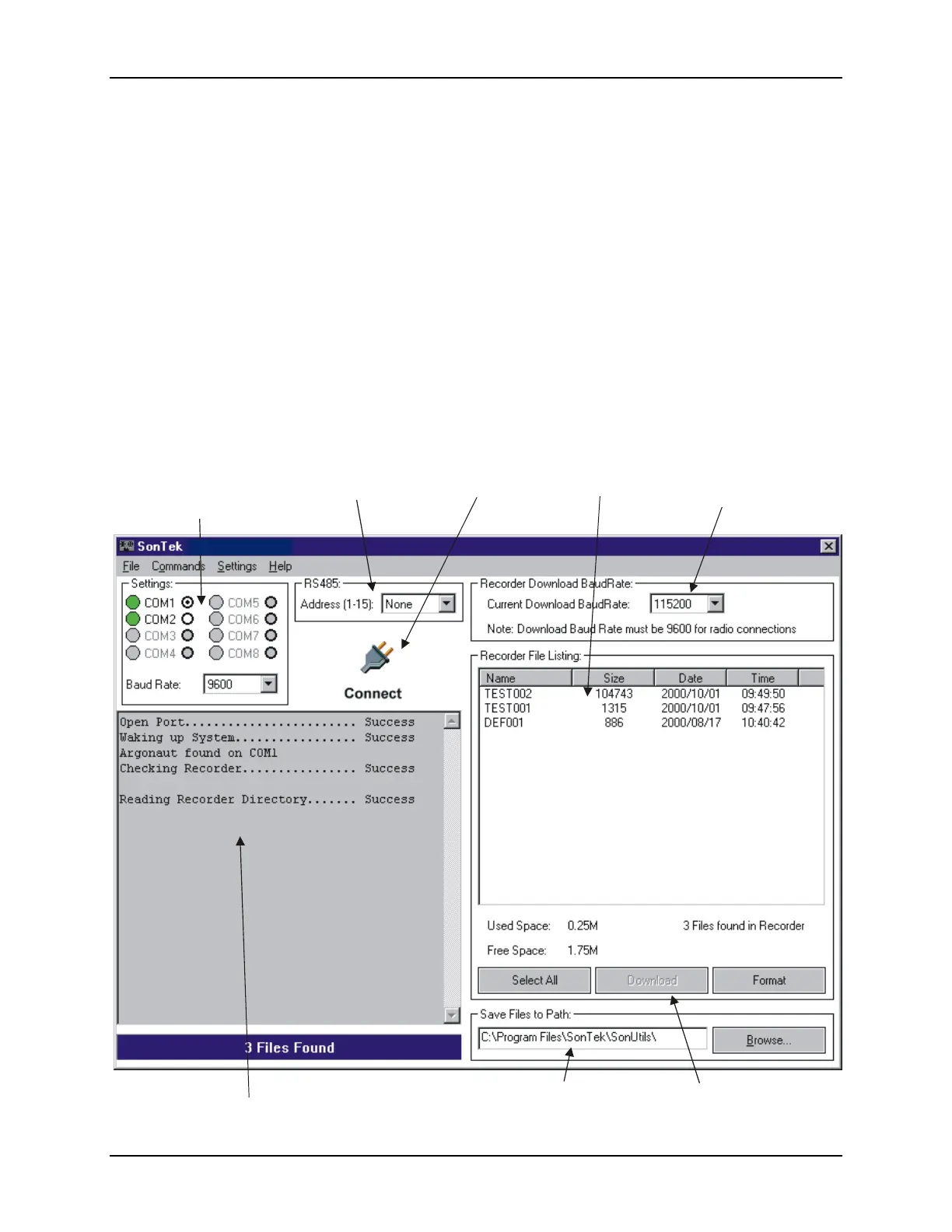

Figure 14 – Recorder (Internal Recorder Data Extraction) Main Window
Recorde
r
Directory
Recorde
r
Download
Speed
Rs485
Address Setting
Basic
Communication
Parameters
Connect
Icon
Program Status Display
Download File
Director
y
Location
Main Program
Functions
Recorder
