SonTek/YSI
50
ADVField Operation Manual (September 1, 2001)
Recorder/External Pressure Sensor Board
Figure 12 shows the layout of the
Recorder board with important
features labeled. The optional
Recorder board is used for internal
data storage during autonomous
deployments.
• PCMCIA/Compass Flash Card –
The recorder uses this non-
volatile memory for data storage.
Presently, recorder sizes from
10 MB to 1.2 GB are available
(call SonTek for latest
information).
• Card Release Switch – This switch ejects the PCMCIA card from its mounting fixture. When
assembled, the card is physically secured using an external bracket. The card should not need
to be removed during normal operation.
• Full-Length Card Connector – This 64-pin connector mates to a connector on the bottom of
the CPU board.
SONTEK INC. Recorder REV. B 11/96 MADE IN USA
F
u
L
e
n
g
t
h
C
a
r
d
C
o
n
n
e
c
t
o
r
PCMCIA
Flash Card
Car
Re
ease Sw
tc

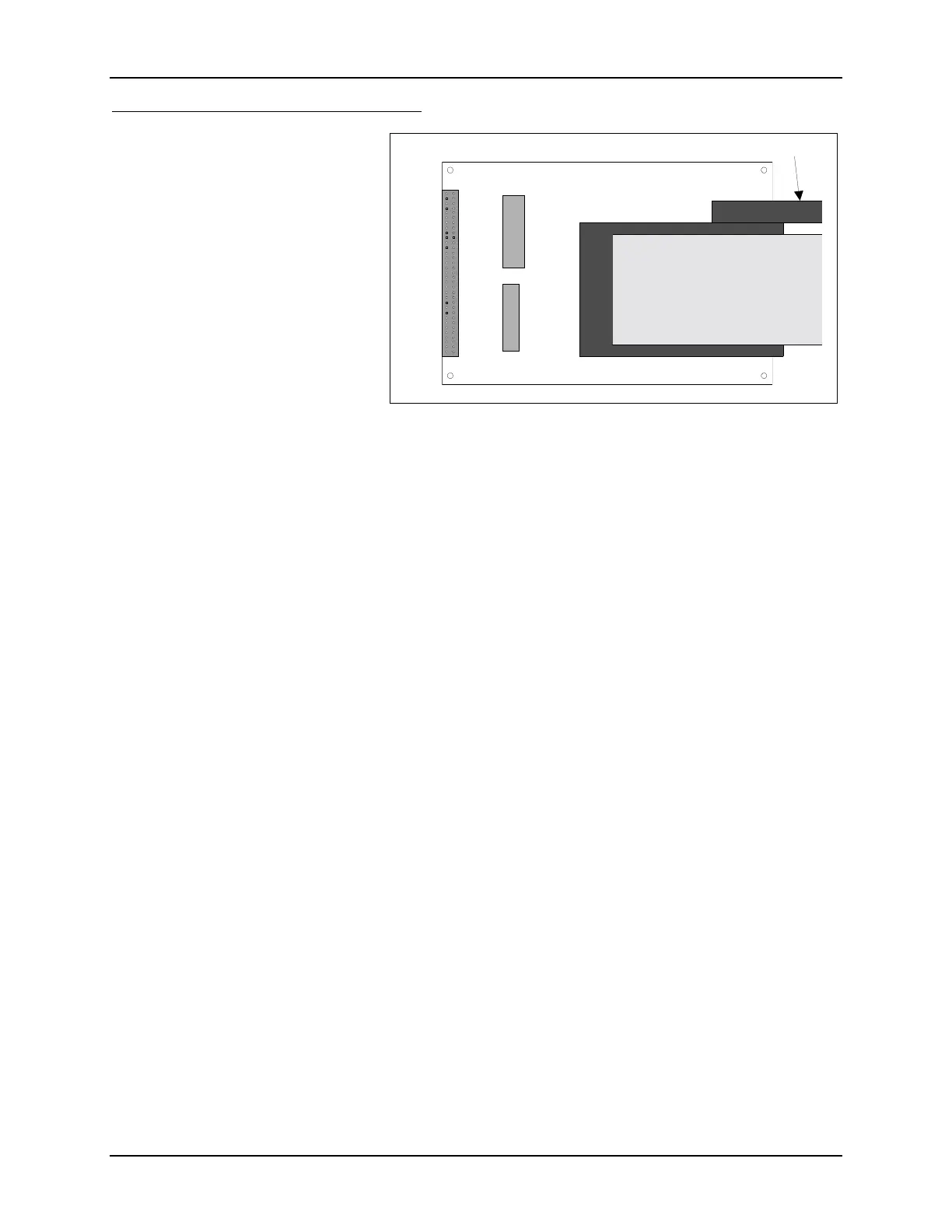

Figure 12 - ADV Recorder/Ext. Pressure Sensor Board
