5 - 22 DS3608 Digital Scanner Product Reference Guide
Signature Capture Width
Parameter # 366 (SSI # F4h F0h 6Eh)
The aspect ratio of the Signature Capture Width and Signature Capture Height parameters must match that of the
signature capture area. For example, a 4 x 1 inch signature capture area would require a 4 to 1 aspect ratio of
width to height.
To set the width of the signature capture box, scan the Signature Capture Width bar code, followed by 4 bar
codes from Appendix G, Numeric Bar Codes corresponding to a value in the range of 016 to 1280 decimal.
Signature Capture Height
Parameter # 367 (SSI # F4h F0h 6Fh)
To set the height of the signature capture box, scan the Signature Capture Height bar code, followed by 3 bar
codes from Appendix G, Numeric Bar Codes corresponding to a value in the range of 016 to 800 decimal.
NOTE Signature capture only applies to the DS3608-HP.

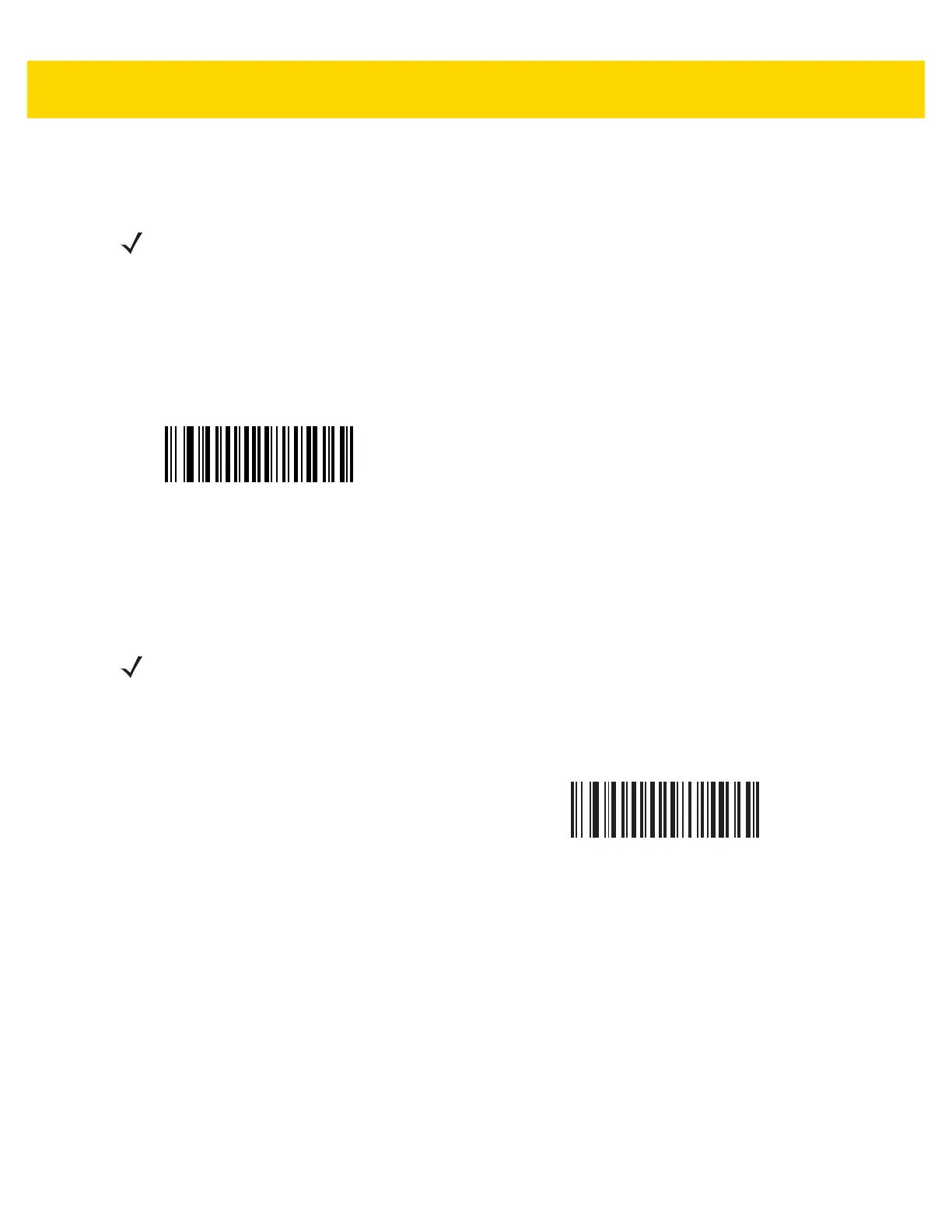

Signature Capture Width
(Default: 400)
(016 - 1280 Decimal)
NOTE Signature capture only applies to the DS3608-HP.
Signature Capture Height (Default: 100)
(016 - 800 Decimal)
