9 - 2 DS3608 Digital Scanner Product Reference Guide
Connecting to an IBM 468X/469X Host
Connect the digital scanner directly to the host interface.

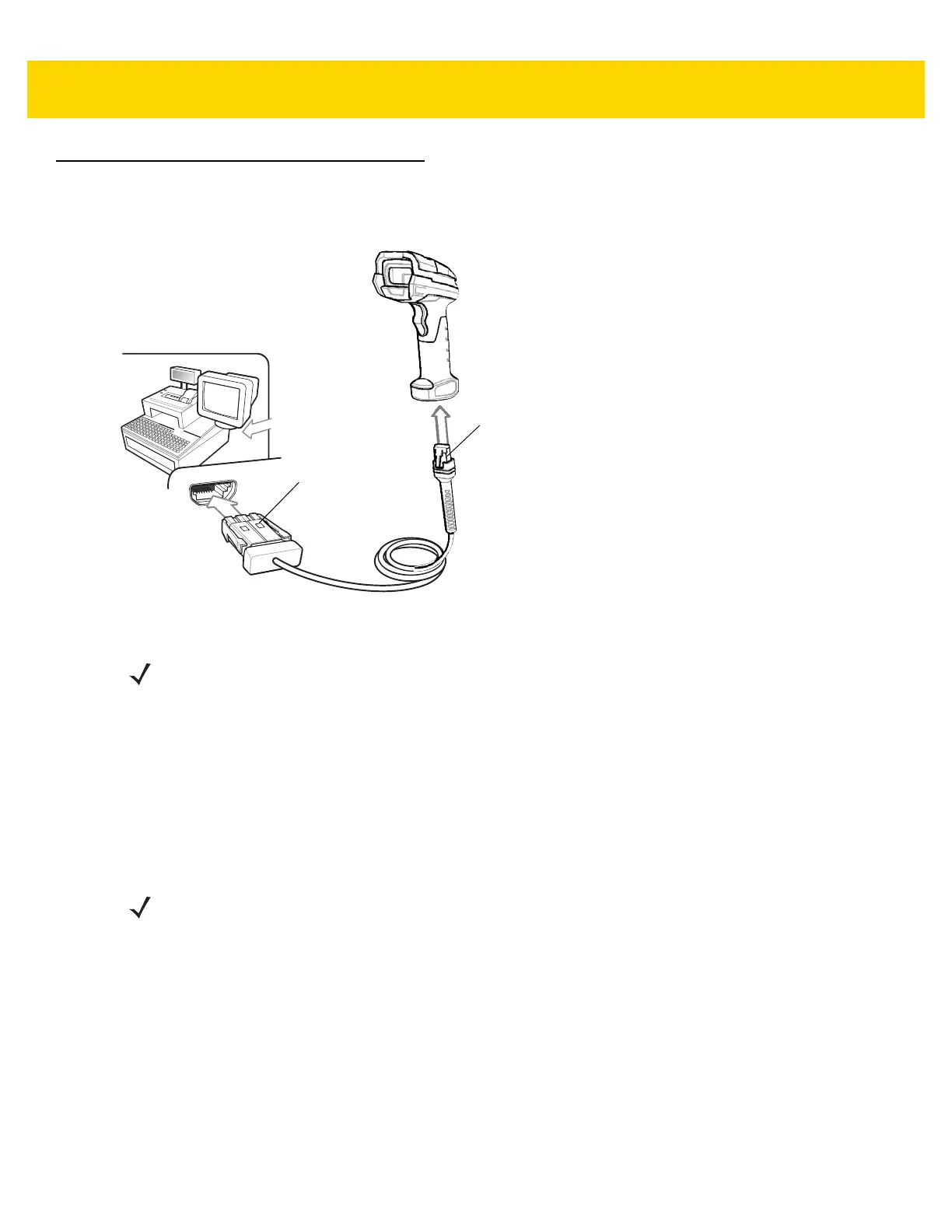

Figure 9-1 IBM Direct Connection
1. Attach the modular connector of the IBM 46XX interface cable to the cable interface port on the digital scanner.
See Installing the DS3608 Interface Cable on page 1-3.
2. Connect the other end of the IBM 46XX interface cable to the appropriate port on the host (typically Port 9).
3. The digital scanner automatically detects the host interface type, but there is no default setting. Scan the port
address by scanning the appropriate bar code from Port Address on page 9-4.
4. To modify any other parameter options, scan the appropriate bar codes in this chapter.
Host port
connector
Interface cable
NOTE Interface cables vary depending on configuration. The connectors illustrated in Figure 9-1 are examples
only. The connectors may be different than those illustrated, but the steps to connect the digital scanner
are the same.
NOTE The only required configuration is the port address. The IBM system typically controls other digital scanner
parameters.

Table of Contents

Other manuals for Zebra DS3608

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Zebra DS3608 and is the answer not in the manual?

Zebra DS3608 Specifications

General IconGeneral
TypeHandheld bar code reader
Wavelength655 nm
Sensor typeLaser
Scanner type1D/2D
Tilt reading angle0 - 360 °
Pitch reading angle0 - 65 °
Light levels (direct sunlight)0 - 108000 lx
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, MSI, U.P.C., UPC-A, UPC-E
Optical sensor resolution (W x H)1280 x 960 pixels
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage4.5 - 5.5 V
Power source typeRS-232, USB
CertificationRoHS EN 50581: 2012
Product colorBlack, Grey
LED indicatorsYes
International Protection (IP) codeIP65
Standard interfacesKeyboard wedge, RS-232, USB
Connectivity technologyWired
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-30 - 50 °C
Operating relative humidity (H-H)5 - 95 %
Harmonized System (HS) code84716070
Weight and Dimensions IconWeight and Dimensions
Depth132 mm
Width77 mm
Height185 mm
Weight304 g
