Zebra DS3608 Product Reference Guide

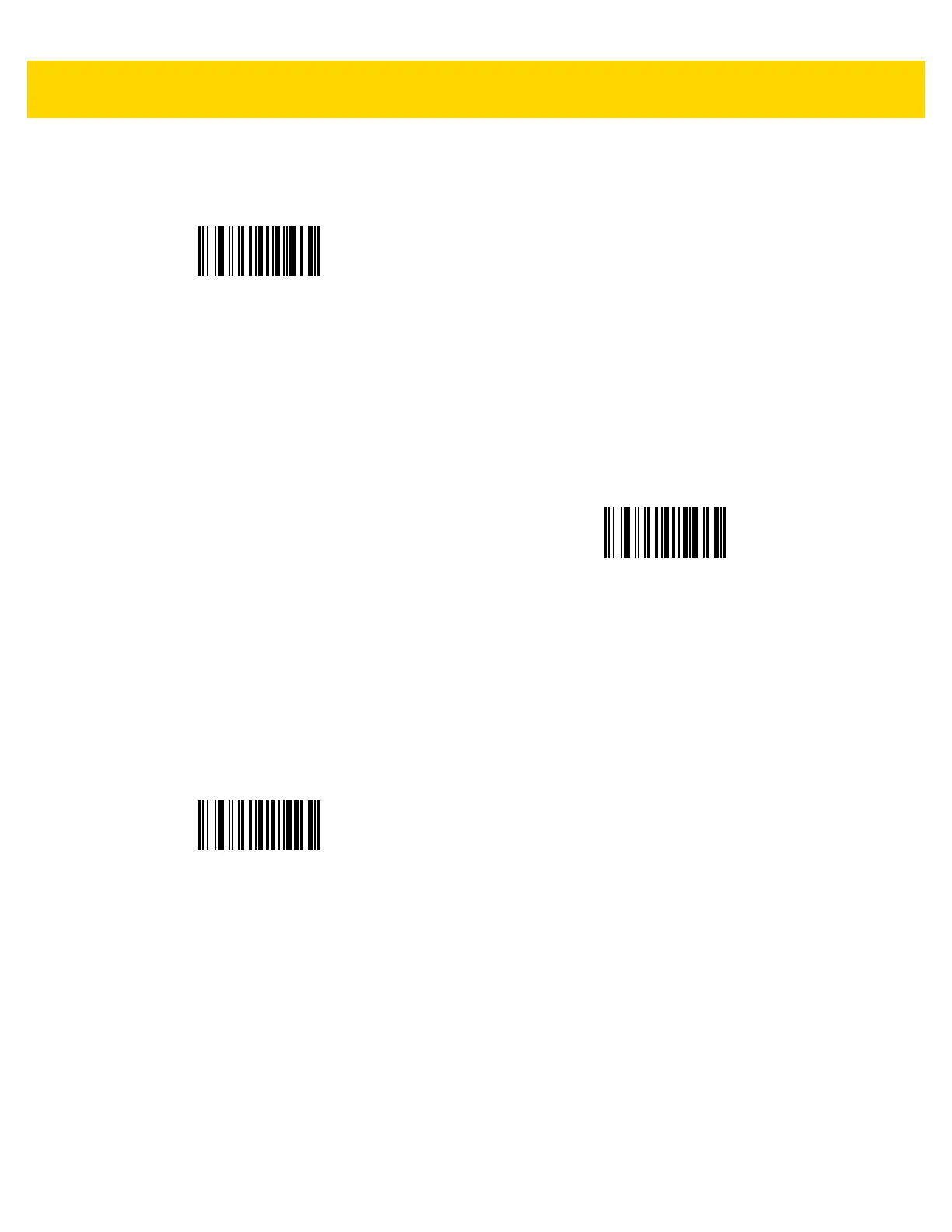

OCR Programming 13 - 17
Alpha or Digit (3)
The data validator requires an alphanumeric character in this position to validate the incoming data.
Template Valid data Valid data Invalid data
33333 12ABC WXY34 12AB<
Any Including Space & Reject (4)
The template accepts any character in this position, including space and reject. Rejects are represented as an
underscore (_) in the output. This is a good selection for troubleshooting.
Template Valid data Valid data
99499 12$34 34_98
Any except Space & Reject (5)
The template accepts any character in this position except a space or reject.
Template Valid data Valid data Invalid data
55999 A.123 *Z456 A BCD
3
4
5

Zebra DS3608 Specifications

General

Type	Handheld bar code reader
Wavelength	655 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Light levels (direct sunlight)	0 - 108000 lx
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, MSI, U.P.C., UPC-A, UPC-E
Optical sensor resolution (W x H)	1280 x 960 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage	4.5 - 5.5 V
Power source type	RS-232, USB
Certification	RoHS EN 50581: 2012
Product color	Black, Grey
LED indicators	Yes
International Protection (IP) code	IP65
Standard interfaces	Keyboard wedge, RS-232, USB
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	132 mm
Width	77 mm
Height	185 mm
Weight	304 g
