Zebra DS3608 Product Reference Guide

11 - 76 DS3608 Digital Scanner Product Reference Guide
Composite TLC-39
Parameter # 371 (SSI # F0h 73h)

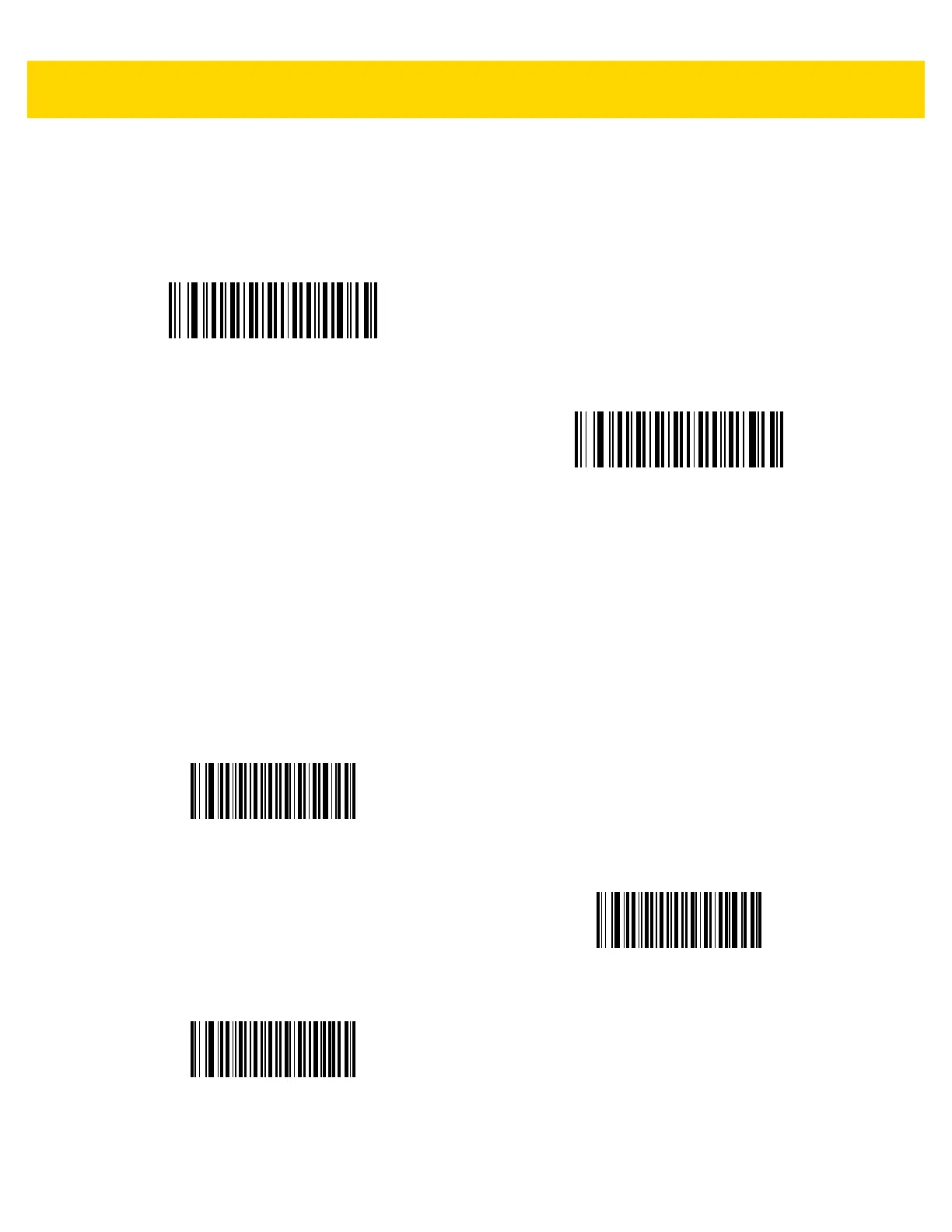

Scan a bar code below to enable or disable Composite bar codes of type TLC-39.
UPC Composite Mode
Parameter # 344 (SSI # F0h 58h)
Select an option for linking UPC symbols with a 2D symbol during transmission as if they were one symbol:
• Select UPC Never Linked to transmit UPC bar codes regardless of whether a 2D symbol is detected.
• Select UPC Always Linked to transmit UPC bar codes and the 2D portion.
If 2D is not present, the UPC bar code does not transmit.
• If you select Autodiscriminate UPC Composites, the digital scanner determines if there is a 2D portion,
then transmits the UPC, as well as the 2D portion if present.
Enable TLC39
(1)
*Disable TLC39
(0)
*UPC Never Linked
(0)
UPC Always Linked
(1)
Autodiscriminate UPC Composites
(2)

Zebra DS3608 Specifications

General

Type	Handheld bar code reader
Wavelength	655 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Light levels (direct sunlight)	0 - 108000 lx
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, MSI, U.P.C., UPC-A, UPC-E
Optical sensor resolution (W x H)	1280 x 960 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage	4.5 - 5.5 V
Power source type	RS-232, USB
Certification	RoHS EN 50581: 2012
Product color	Black, Grey
LED indicators	Yes
International Protection (IP) code	IP65
Standard interfaces	Keyboard wedge, RS-232, USB
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	132 mm
Width	77 mm
Height	185 mm
Weight	304 g
