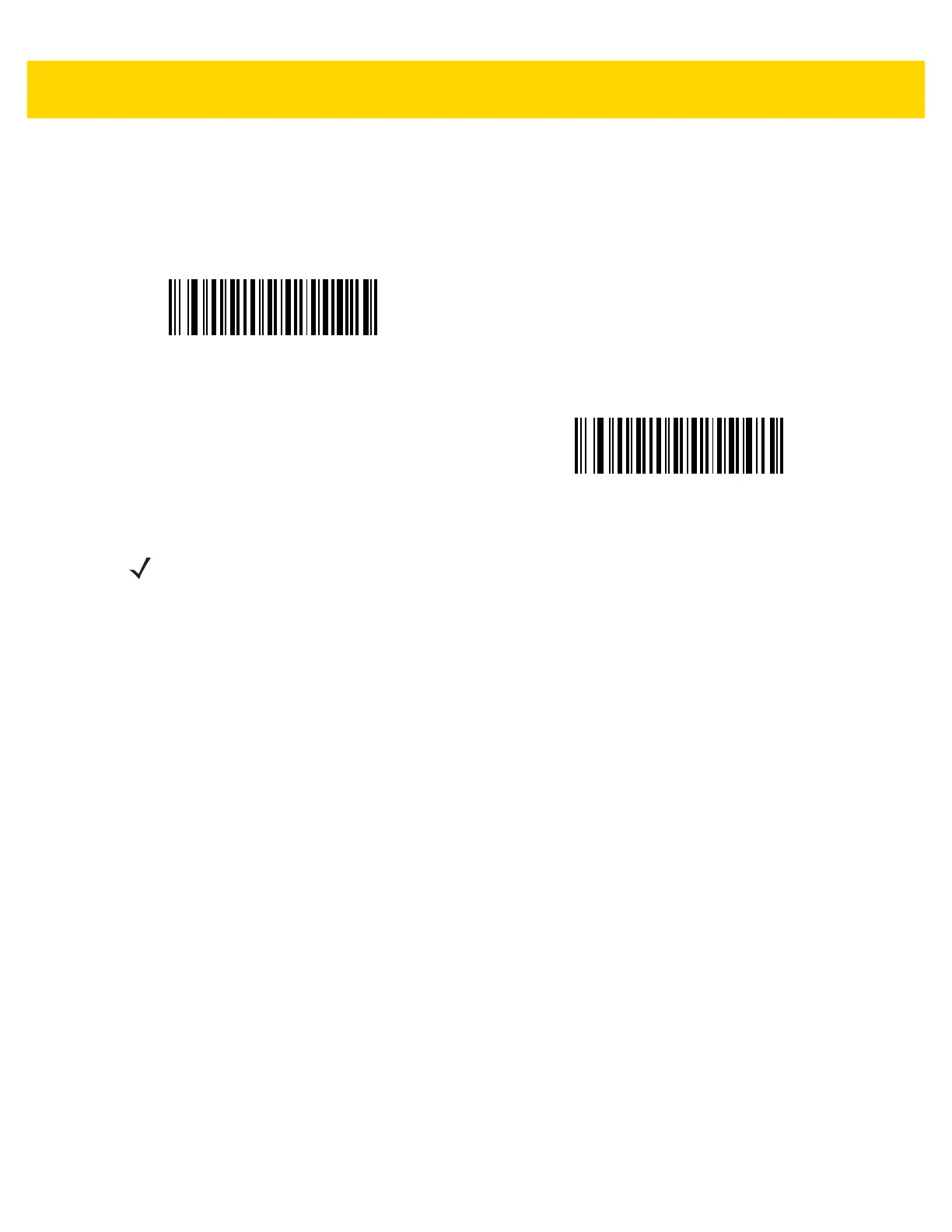

11 - 46 DS3608 Digital Scanner Product Reference Guide

Transmit Code 11 Check Digits

Parameter # 47 (SSI # 2Fh)

This feature selects whether or not to transmit the Code 11 check digit(s).

Transmit Code 11 Check Digit(s) (Enable)

(1)

*Do Not Transmit Code 11 Check Digit(s) (Disable)

(0)

NOTE Code 11 Check Digit Verification must be enabled for this parameter to function.
