Zebra DS3608 Product Reference Guide

Imaging Preferences 5 - 5
Image Capture Illumination
Parameter # 361 (SSI # F0h 69h)
Selecting Enable Image Capture Illumination causes illumination to turn on during every image capture. Disable
illumination to prevent the digital scanner from using illumination.
Enabling illumination usually results in superior images. The effectiveness of illumination decreases as the
distance to the target increases.
Image Capture Autoexposure
Parameter # 360 (SSI # F0h 68h)
Select Enable Image Capture Autoexposure to allow the digital scanner to control gain settings and exposure
(integration) time to best capture an image for the selected operation mode.
Select Disable Image Capture Autoexposure to manually adjust the gain and exposure time (see the following
pages). This option is only recommended for advanced users with difficult image capture situations.

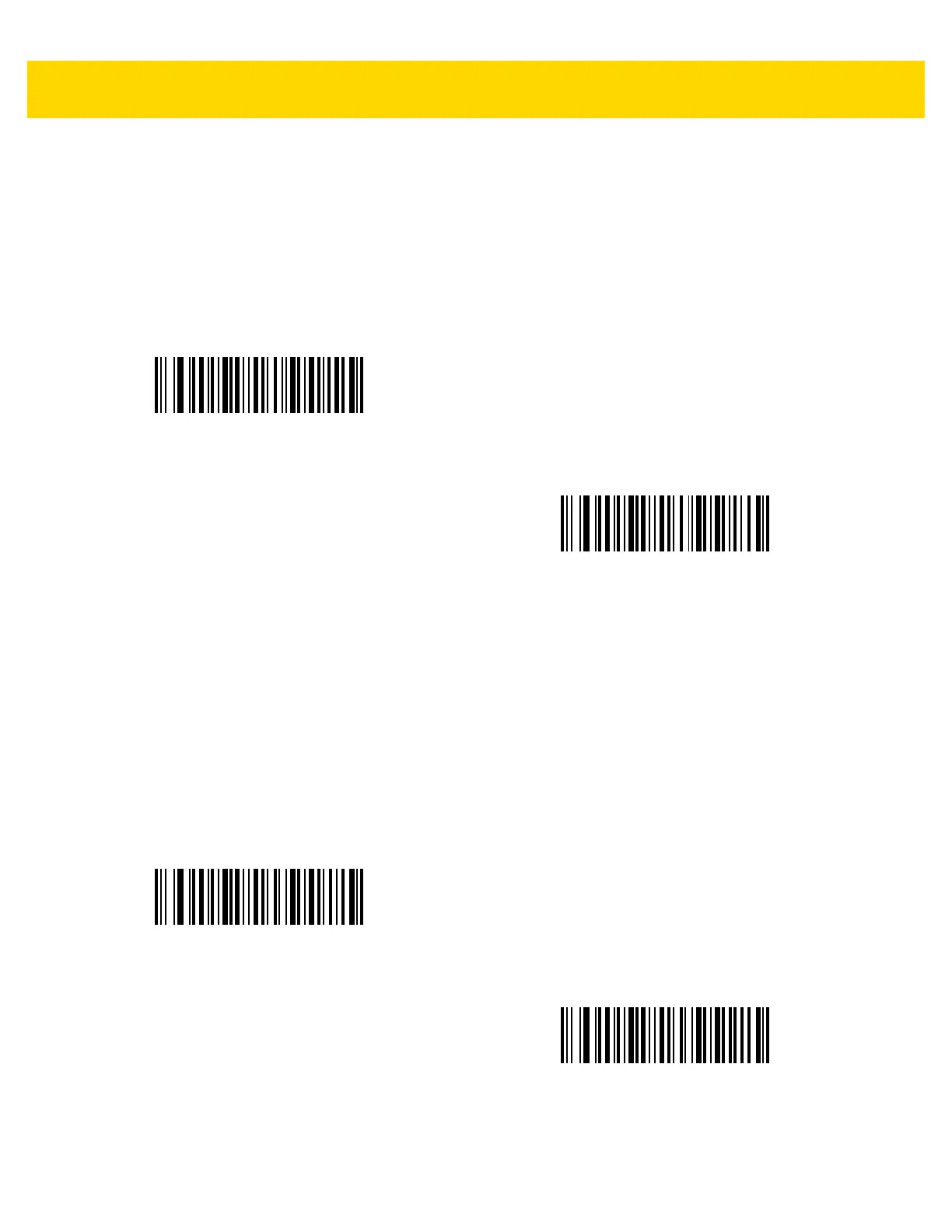

*Enable Image Capture Illumination
(1)
Disable Image Capture Illumination
(0)
*Enable Image Capture Autoexposure
(1)
Disable Image Capture Autoexposure
(0)

Zebra DS3608 Specifications

General

Type	Handheld bar code reader
Wavelength	655 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Light levels (direct sunlight)	0 - 108000 lx
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, MSI, U.P.C., UPC-A, UPC-E
Optical sensor resolution (W x H)	1280 x 960 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage	4.5 - 5.5 V
Power source type	RS-232, USB
Certification	RoHS EN 50581: 2012
Product color	Black, Grey
LED indicators	Yes
International Protection (IP) code	IP65
Standard interfaces	Keyboard wedge, RS-232, USB
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	132 mm
Width	77 mm
Height	185 mm
Weight	304 g
