Zebra DS3608

To Next Page

To Previous Page

Symbologies 11 - 85

Han Xin Inverse

Parameter # 1168 (SSI # F8h 04h 90h)

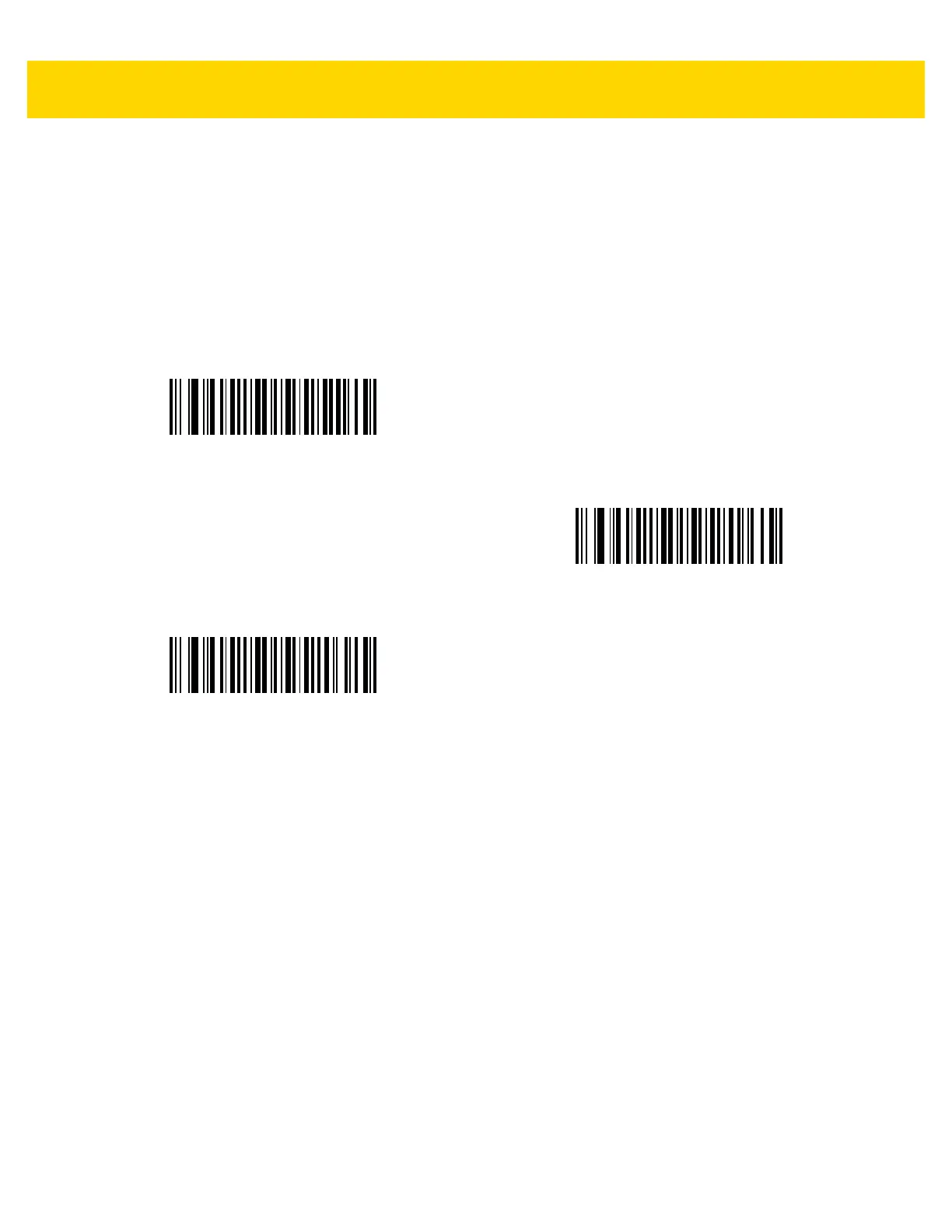

Select a Han Xin inverse decoder setting:

•

Regular Only - the decoder decodes Han Xin bar codes with normal reflectance only.

•

Inverse Only - the decoder decodes Han Xin bar codes with inverse reflectance only.

•

Inverse Autodetect - the decoder decodes both regular and inverse Han Xin bar codes.

*Regular

(0)

Inverse Only

(1)

Inverse Autodetect

(2)
