Zebra DS3608 Product Reference Guide

Intelligent Document Capture 12 - 9
IDC Aspect
Parameter Name: DocCap_ASPECT
Parameter # 595 (SSI # F1h 53h)
Specify the bar code's aspect ratio of a thin bar or space. The bar code's height is divided by this value to get the
unit in the y-axis. The aspect value is calculated automatically if this parameter is set to zero.
This parameter only applies when IDC Operating Mode is set to Anchored.
Scan the bar code below, followed by three bar codes from Appendix G, Numeric Bar Codes in the range of 000 to
255. The default is 000.
IDC File Format Selector
Parameter Name: DocCap_FMT
Parameter # 601 (SSI # F1h 59h)
Select a document capture file format appropriate for your system (BMP, TIFF, or JPEG). The decoder stores
captured areas in the selected format.

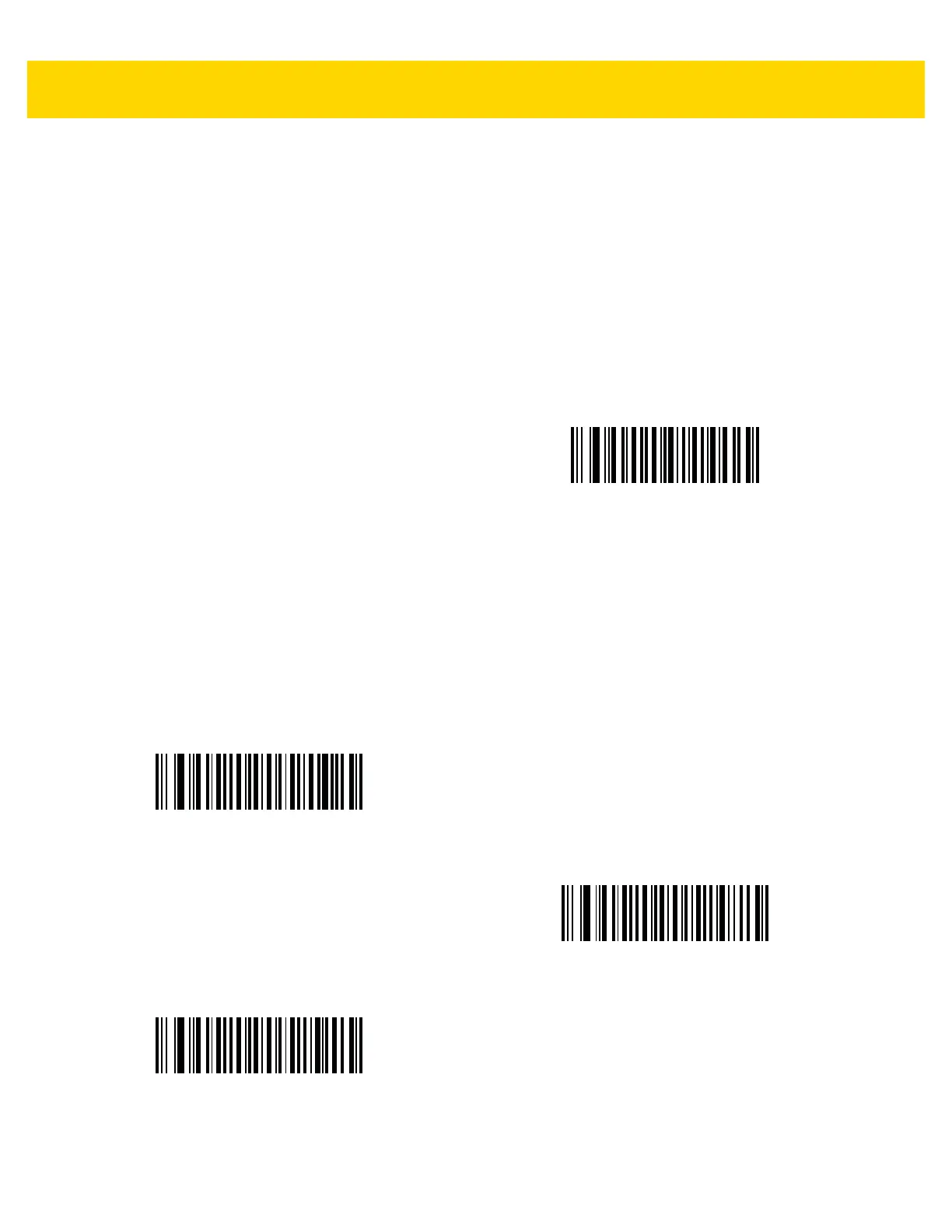

IDC Aspect
*JPEG
(1)
BMP
(3)
TIFF
(4)

Zebra DS3608 Specifications

General

Type	Handheld bar code reader
Wavelength	655 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Light levels (direct sunlight)	0 - 108000 lx
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, MSI, U.P.C., UPC-A, UPC-E
Optical sensor resolution (W x H)	1280 x 960 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage	4.5 - 5.5 V
Power source type	RS-232, USB
Certification	RoHS EN 50581: 2012
Product color	Black, Grey
LED indicators	Yes
International Protection (IP) code	IP65
Standard interfaces	Keyboard wedge, RS-232, USB
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	132 mm
Width	77 mm
Height	185 mm
Weight	304 g
