Zebra DS3608 Product Reference Guide

5 - 24 DS3608 Digital Scanner Product Reference Guide
Video View Finder Image Size
Parameter # 329 (SSI # F0h 49h)
Select the number of 100-byte blocks. Values range from 800 to 12,000 bytes. Selecting a smaller value transmits
more frames per second; selecting a larger value increases video quality.

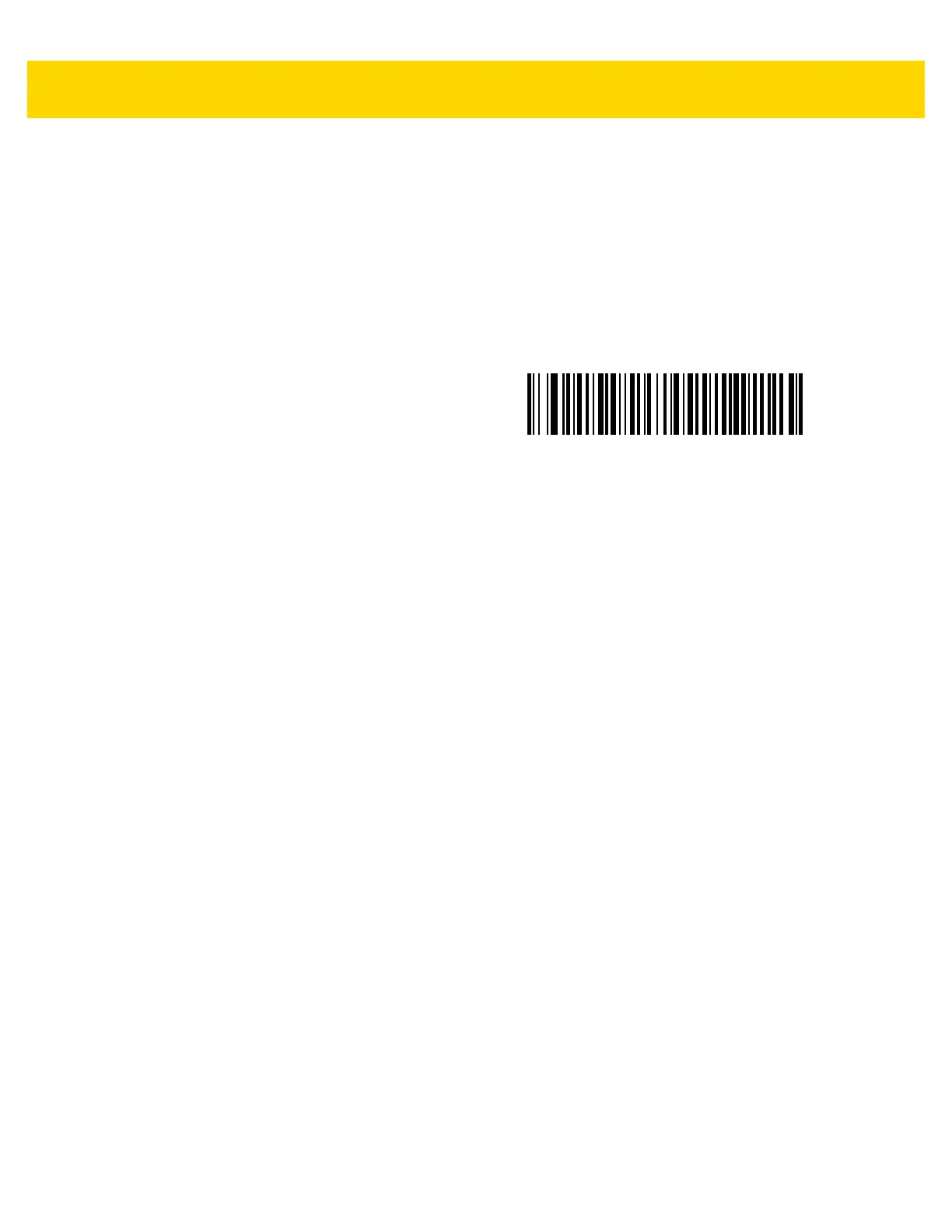

To set the Video View Finder Image Size, scan the bar code below followed by three bar codes from Appendix G,
Numeric Bar Codes corresponding to the 100-byte value from 800 to 12,000 bytes. For example, to select 1500
bytes, enter 0, 1, 5. To select 900 bytes, enter 0, 0, 9. The default is 1700 bytes.
Video View Finder Image Size

Zebra DS3608 Specifications

General

Type	Handheld bar code reader
Wavelength	655 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Light levels (direct sunlight)	0 - 108000 lx
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, MSI, U.P.C., UPC-A, UPC-E
Optical sensor resolution (W x H)	1280 x 960 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage	4.5 - 5.5 V
Power source type	RS-232, USB
Certification	RoHS EN 50581: 2012
Product color	Black, Grey
LED indicators	Yes
International Protection (IP) code	IP65
Standard interfaces	Keyboard wedge, RS-232, USB
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	132 mm
Width	77 mm
Height	185 mm
Weight	304 g
