Intelligent Document Capture 12 - 19
Linked Mode Demo
Set IDC Operating Mode to Linked.
The examples from Free-Form mode also work in Linked mode except that the last one (with the bar code covered)
does not decode the bar code or capture an image.
What this demonstrates:
The Intelligent Document Capture Linked mode captures an image whose size and position are determined by
a rectangular border on the page. The IDC firmware requires that a bar code is present in order to capture an
image, decodes it, and uses it to adjust the image to the upright orientation
Other Suggestions
Hold the decoder at an angle (up/down or side to side) to the page instead of perpendicular to it. The IDC firmware
de-skews and adjusts the brightness (enabled by default) to produce a quality image when the decoder is held at
less than ideal conditions.

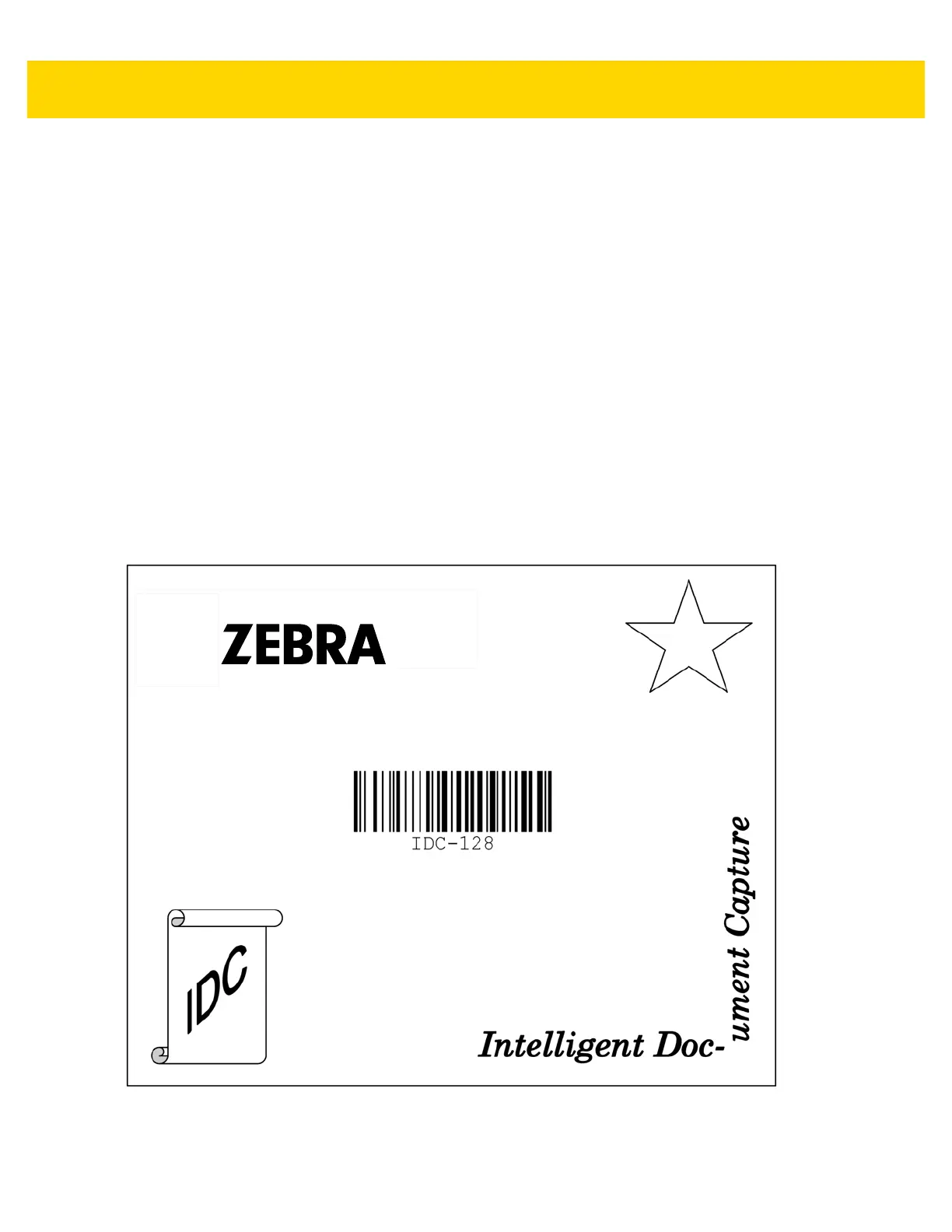

Quick Start Form
Figure 12-1 Quick Start Form
