Zebra DS3608 Product Reference Guide

Intelligent Document Capture 12 - 11
IDC Find Box Outline
Parameter Name: Sig_FINDBOX
Parameter # 727 (SSI # F1h D7h)
Select Enable Find Box Outline to instruct the firmware to search for a rectangular border during document
capture. This parameter only applies when IDC Operating Mode is set to Anchored.
IDC Minimum Text Length
Parameter Name: DocCap_MIN_TEXT
Parameter # 656 (SSI # F1h 90h)
Specify the minimum number of characters encoded in a bar code for the IDC firmware to use it as an anchored or
linked bar code. Set this to zero (the default) to disable all checking and use all bar codes.

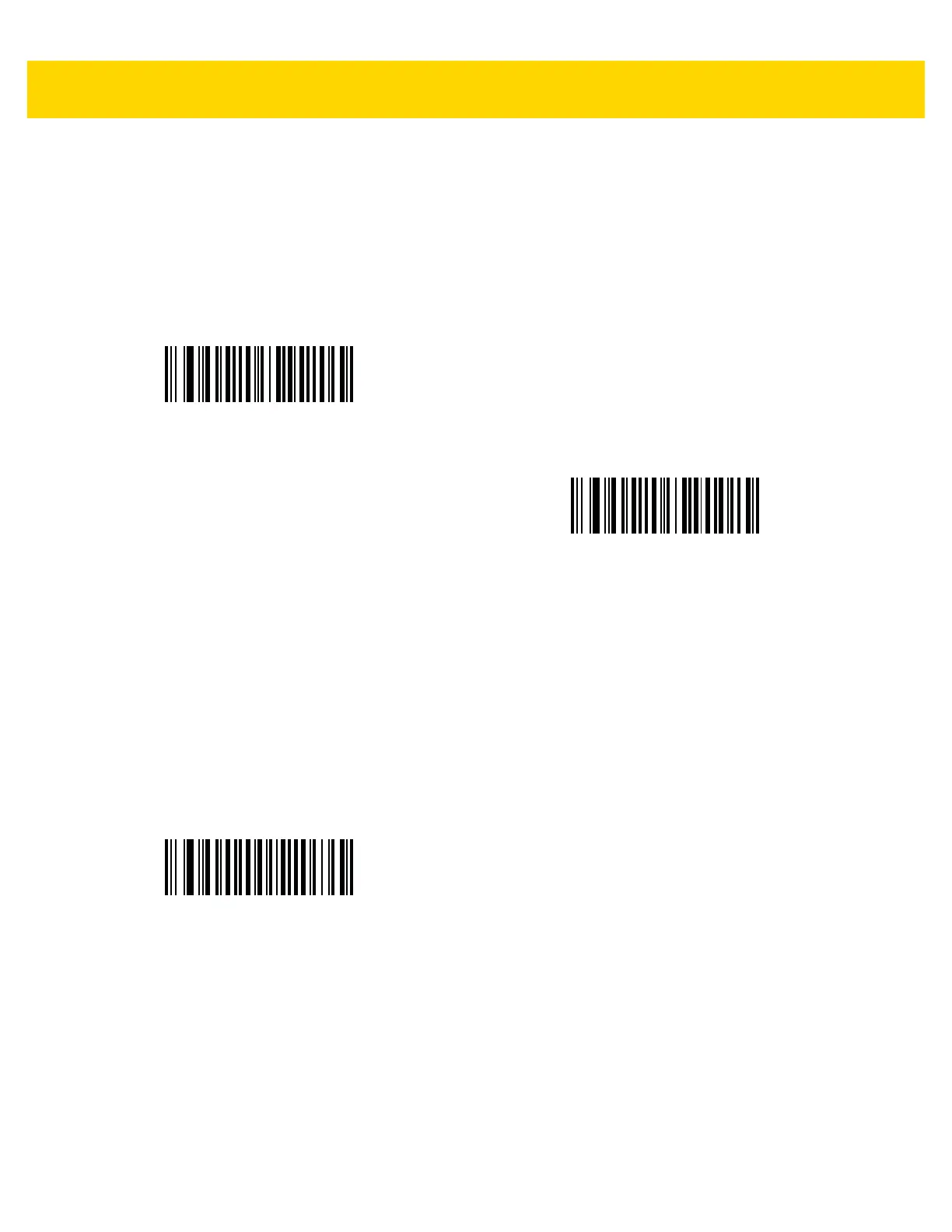

Scan the bar code below, followed by two bar codes from Appendix G, Numeric Bar Codes in the range of 00 to 55
decimal. The default is 00.
*Disable Find Box Outline
(0)
Enable Find Box Outline
(1)
IDC Minimum Text Length

Zebra DS3608 Specifications

General

Type	Handheld bar code reader
Wavelength	655 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Light levels (direct sunlight)	0 - 108000 lx
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, MSI, U.P.C., UPC-A, UPC-E
Optical sensor resolution (W x H)	1280 x 960 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage	4.5 - 5.5 V
Power source type	RS-232, USB
Certification	RoHS EN 50581: 2012
Product color	Black, Grey
LED indicators	Yes
International Protection (IP) code	IP65
Standard interfaces	Keyboard wedge, RS-232, USB
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	132 mm
Width	77 mm
Height	185 mm
Weight	304 g
