Zebra DS3608 Product Reference Guide

SSI Interface 7 - 19
Multipacket Option
Parameter # 334 (SSI # F0h 4Eh)
This parameter controls ACK/NAK handshaking for multi-packet transmissions.
• Multi-Packet Option 1: The host sends an ACK / NAK for each data packet during a multi-packet
transmission.
• Multi-Packet Option 2: The digital scanner sends data packets continuously, with no ACK/NAK handshaking
to pace the transmission. The host, if overrun, can use hardware handshaking to temporarily delay digital
scanner transmissions. At the end of transmission, the digital scanner waits for a CMD_ACK or CMD_NAK.
• Multi-Packet Option 3: Option 3 is the same as option 2 with the addition of a programmable interpacket
delay.

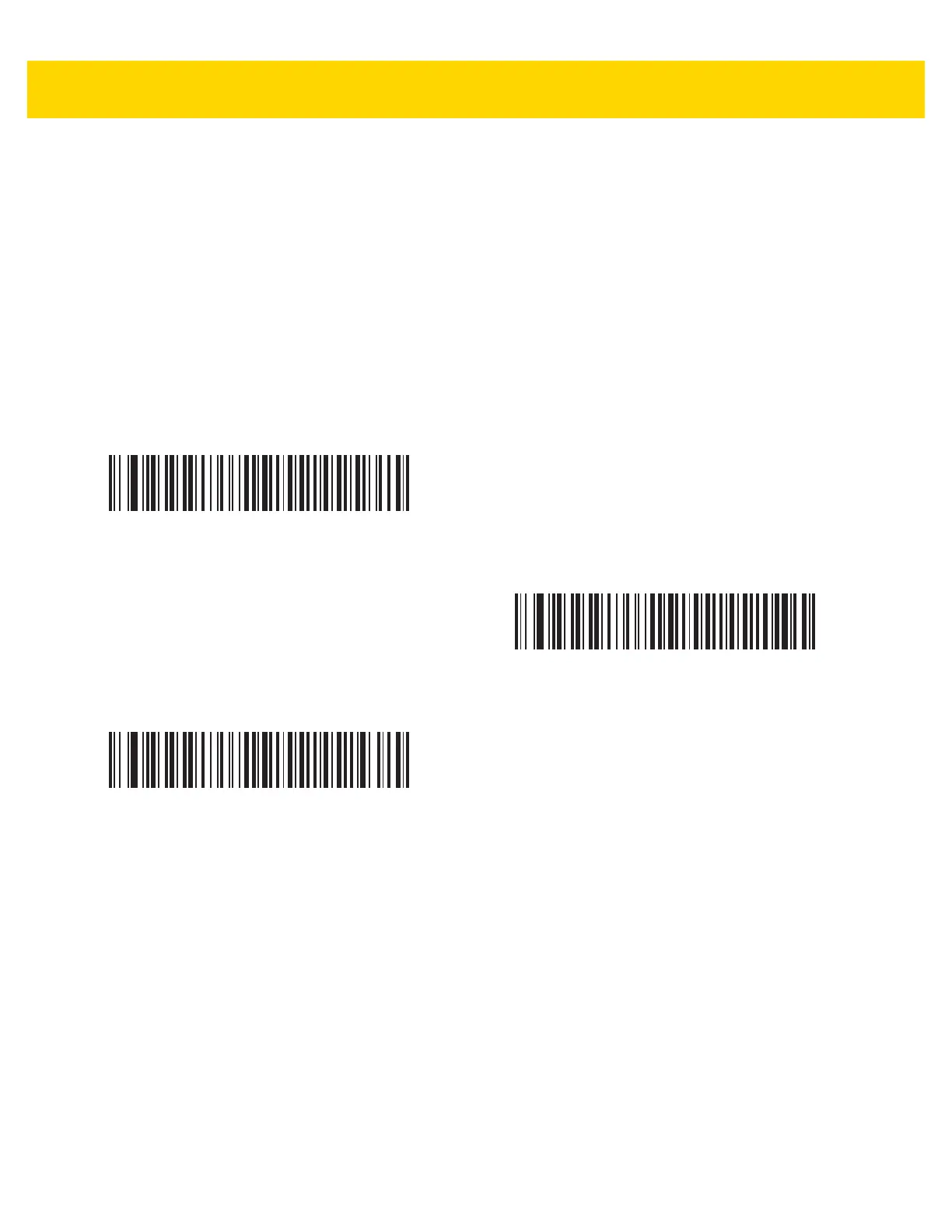

*Multipacket Option 1
(0)
Multipacket Option 2
(1)
Multipacket Option 3
(2)

Zebra DS3608 Specifications

General

Type	Handheld bar code reader
Wavelength	655 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Light levels (direct sunlight)	0 - 108000 lx
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, MSI, U.P.C., UPC-A, UPC-E
Optical sensor resolution (W x H)	1280 x 960 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage	4.5 - 5.5 V
Power source type	RS-232, USB
Certification	RoHS EN 50581: 2012
Product color	Black, Grey
LED indicators	Yes
International Protection (IP) code	IP65
Standard interfaces	Keyboard wedge, RS-232, USB
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	132 mm
Width	77 mm
Height	185 mm
Weight	304 g
