Zebra LI4278 - Report Version; Parameter Bar Code Scanning

To Next Page

To Previous Page

USER PREFERENCES & MISCELLANEOUS SCANNER OPTIONS 5 - 5

Report Version

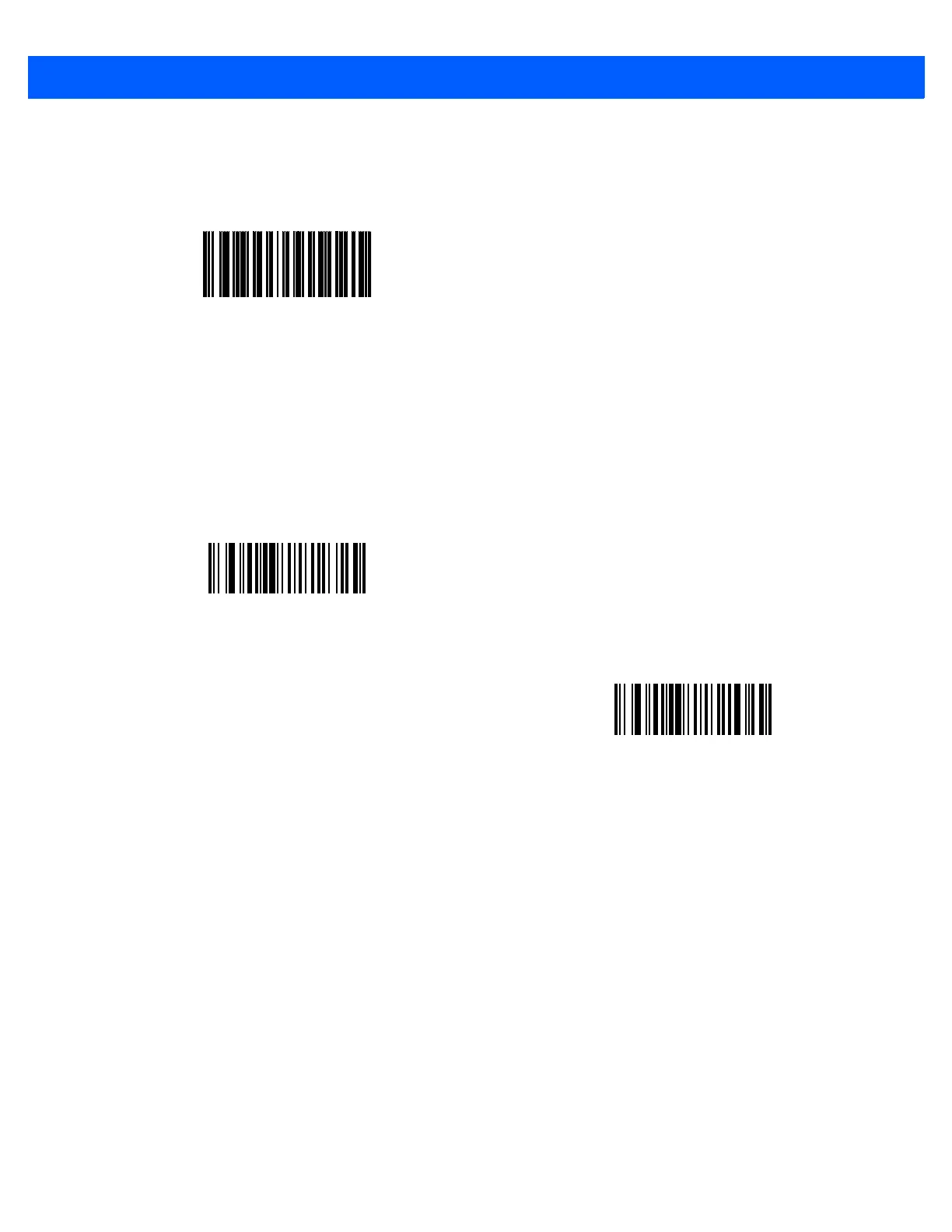

Scan the bar code below to report the version of software installed in the linear imager scanner.

Parameter Bar Code Scanning

Parameter # 236

To disable the decoding of parameter bar codes, including the Set Defaults parameter bar codes, scan the

Disable Parameter Scanning bar code below. To enable decoding of parameter bar codes, scan Enable

Parameter Scanning.

Report Software Version

*Enable Parameter Bar Code Scanning

(01h)

Disable Parameter Bar Code Scanning

(00h)
