Wall Mount Bracket Template
For your convenience, a wall mount bracket can be purchased from Zebra. Use the mounting holes on the Wall
Mount Bracket or use the template in Figure 1-14 to determine the location of the screw holes.

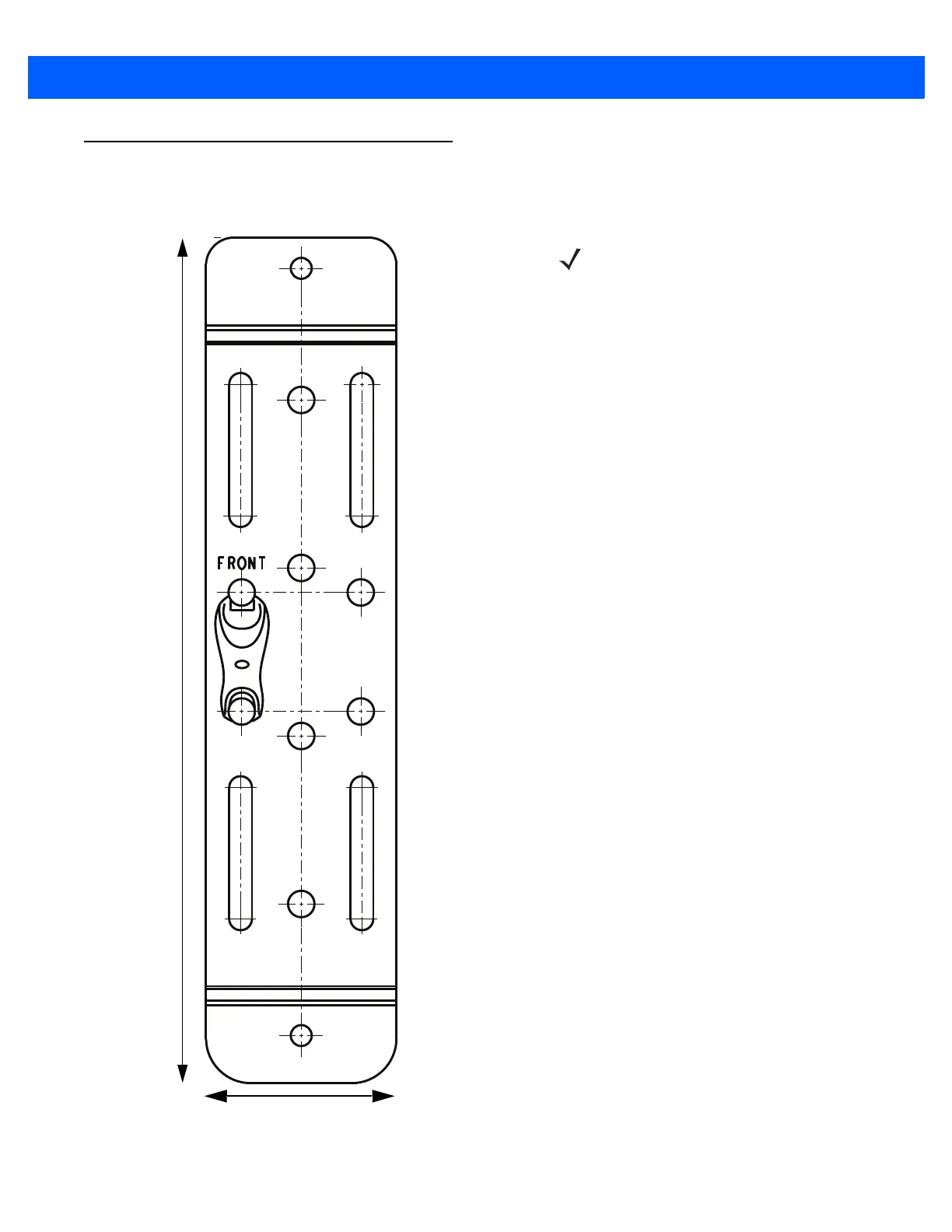

Figure 1-14 Wall Mount Bracket Template
7.55 in. (191.77mm)
1.7 in. (43.18mm)
NOTE Cradle mounting only applies to the
CR0078-S/CR0008-S cradle (not the CR0078-P
cradle). For detailed instructions on mounting the
cradle, refer to the CR0078-S/CR0008-S Quick
Reference Guide (p/n 72-135874-xx).
