Zebra LI4278 - Cradle Signal Descriptions

MAINTENANCE, TROUBLESHOOTING & TECHNICAL SPECIFICATIONS 3 - 13
Cradle Signal Descriptions
The signal descriptions in Table 3-5 apply to the connector on the linear imager scanner and are for reference
only.

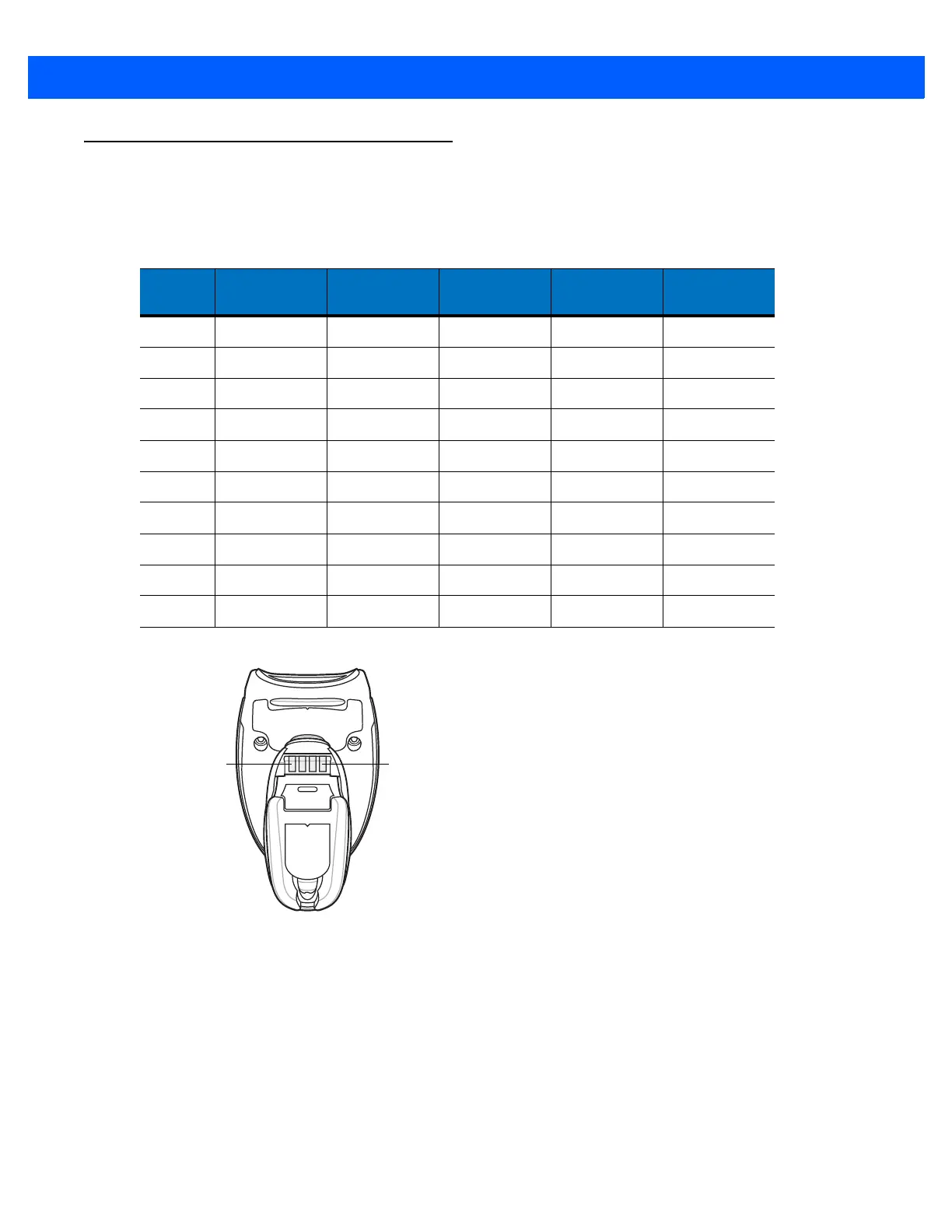

Figure 3-1 illustrates the positions of the cradle pins.
Figure 3-1 Cradle Pin Assignments
Table 3-5 Cradle Signal Pin-outs
Pin IBM Synapse RS-232
Keyboard
Wedge
USB
1 Reserved SynClock Reserved Reserved Jump to Pin 6
2 Power Power Power Power Power
3 Ground Ground Ground Ground Ground
4 IBM_A(+) Reserved TxD KeyClock Reserved
5 Reserved Reserved RxD TermData D +
6 IBM_B(-) SynData RTS KeyData Jump to Pin 1
7 Reserved Reserved CTS TermClock D -
8 Reserved Reserved Reserved Reserved Reserved
9 N/A N/A N/A N/A N/A
10 N/A N/A N/A N/A N/A
Pin 1
Pin 4
