Zebra LI4278 - UPC;EAN; Enable;Disable UPC-A; Enable;Disable UPC-E

To Next Page

To Previous Page

11 - 6 LI4278 Product Reference Guide

UPC/EAN

Enable/Disable UPC-A

Parameter # 1

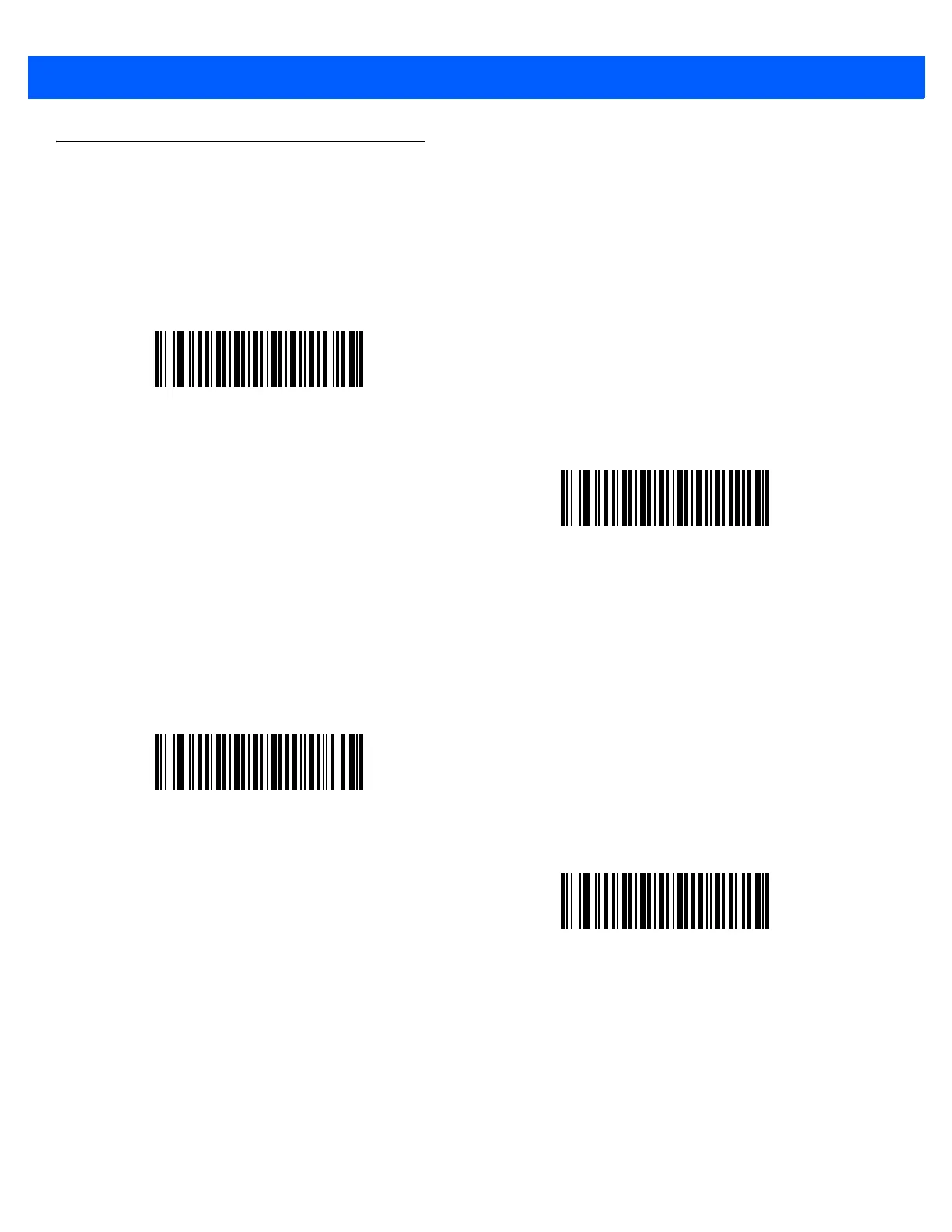

To enable or disable UPC-A, scan the appropriate bar code below.

Enable/Disable UPC-E

Parameter # 2

To enable or disable UPC-E, scan the appropriate bar code below.

*Enable UPC-A

(1)

Disable UPC-A

(0)

*Enable UPC-E

(01h)

Disable UPC-E

(00h)
