2 - 6 LI4278 Product Reference Guide
Scanning
To program the linear imager scanner, see the appropriate host chapter, Chapter 4, RADIO
COMMUNICATIONS and Chapter 11, SYMBOLOGIES. (In addition to the parameters included in the chapters
mentioned, user preference and miscellaneous linear imager scanner option parameters are also available in
this guide.)
Aiming
When scanning, the linear imager scanner projects a red illumination which allows positioning the bar code
within its field of view. See Decode Ranges on page 2-8 for the proper distance to achieve between the linear
imager scanner and a bar code.
Hand-Held Scanning
To scan:
1. Ensure all connections are secure (see appropriate host chapter).
2. Aim the linear imager scanner at the bar code.
3. Press the trigger.

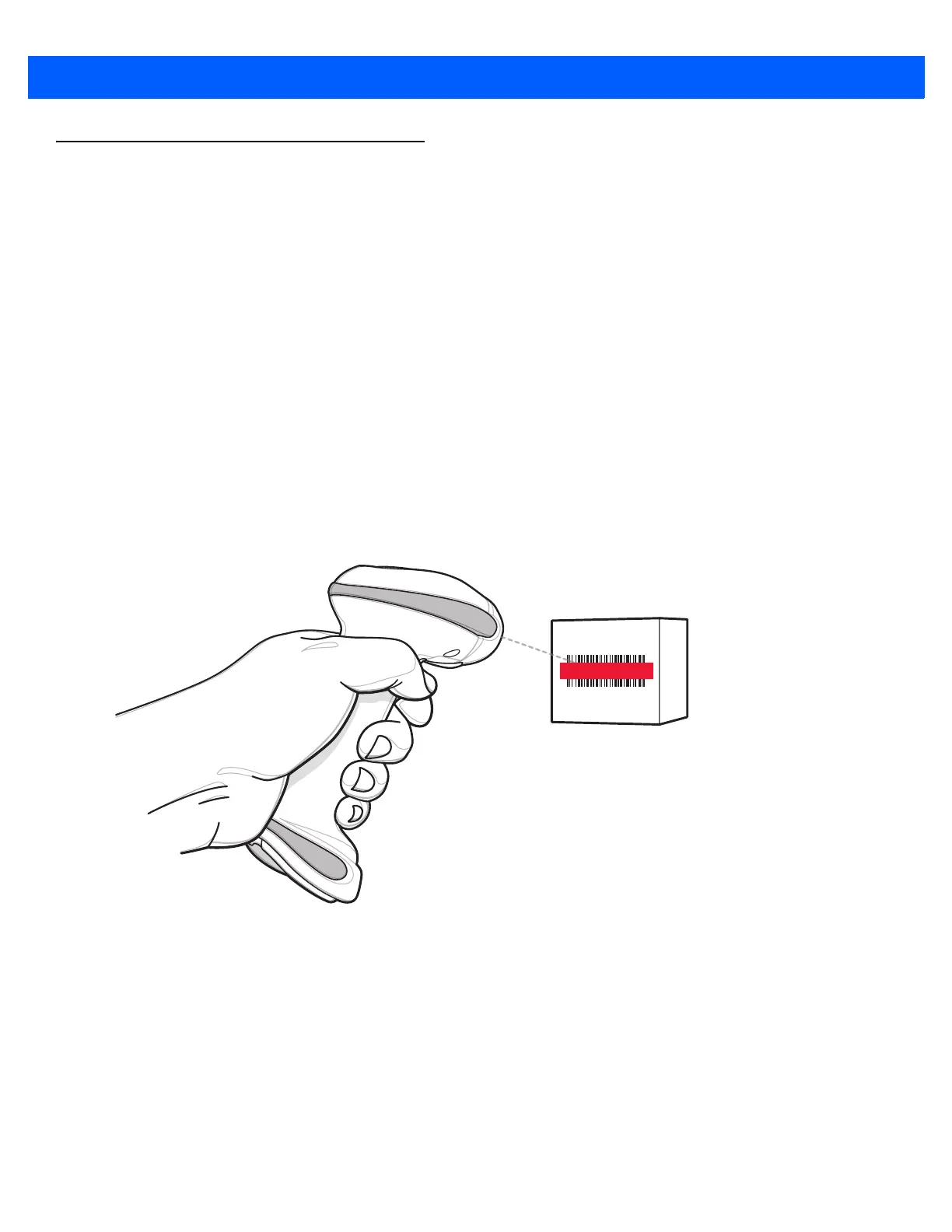

Figure 2-1
Scanning
4. Upon successful decode, the linear imager scanner beeps and the LED displays a single green flash. (For
more information about beeper and LED definitions, see Table 2-1 and Table 2-2.)
