Zebra MC67 Integrator Guide

B - 2 MC67 Integrator Guide
where:
dword:0 = Enable threshold change
Warm boot the MC67 to have the registry setting take effect.
1. Tap > Settings > Power > BatteryMgmt tab.

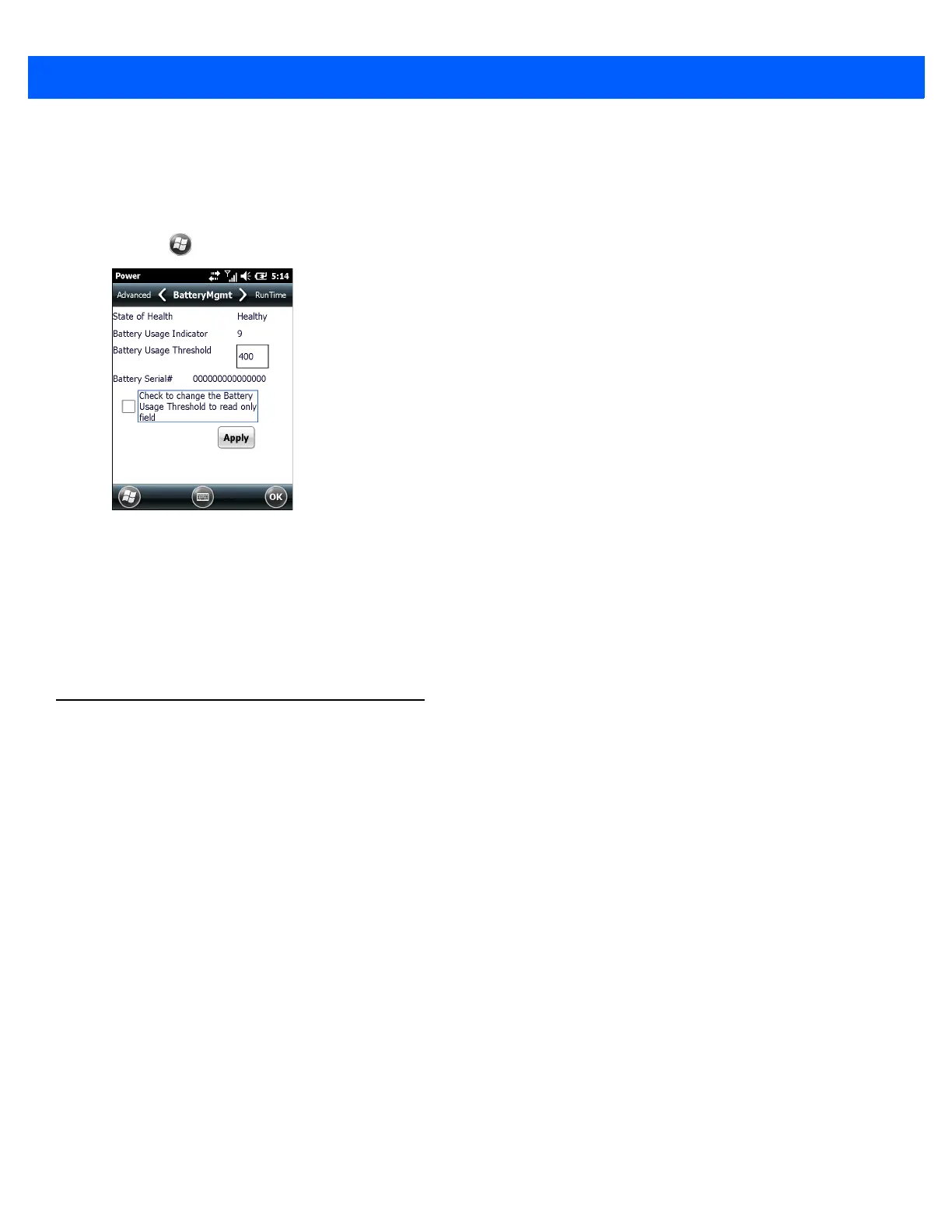

Figure B-2 BatteryMgmt Tab with Threshold Change Checkbox
2. In the Battery Usage Threshold text box, enter a new value.
3. Select the Check to change the Battery Age Threshold to read only field checkbox.
4. Tap Apply.
5. Tap ok. The new value is set and then the registry key is deleted.
Bluetooth Configuration Setting
The MC67 supports both the Microsoft Bluetooth stack and the StoneStreet One Bluetooth stack. Only one
Bluetooth stack can be used at a time. By default, the Microsoft Bluetooth stack is enabled. A registry key on
the MC67 can be modified to disable the Microsoft stack and enable the StoneStreet One stack.
Using a registry editor, navigate to the following:
[HKEY_LOCAL_MACHINE\Software\SymbolBluetooth
Edit the following key:
“SSStack”=dword:1
where:
0 = enable Microsoft stack and disable StoneStreet One stack (default)
1 = enable StoneStreet One stack and disable Microsoft stack
After setting the registry key, warm boot the MC67.

Zebra MC67 Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	-
Flash memory	2 GB
Internal memory	0.512 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	Instruments OMAP
Processor frequency	0.8 GHz
Processor manufacturer	Texas Instruments
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3600 mAh
Data network	4G, HSPA+
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Keyboard layout	QWERTY
Operating system installed	Windows Mobile 6.5

Weight and Dimensions

Depth	33.5 mm
Width	77 mm
Height	162.2 mm
Weight	385 g
