Zebra MC67 Integrator Guide

2 - 32 MC67 Integrator Guide
Handstrap Replacement
Removal
To remove a handstrap from the MC67:
1. If the MC67 is in suspend mode, press the red Power button to wake the MC67.
2. Press the red Power button. The Power Action Key window appears.
3. Tap Safe Battery Swap. The Data Capture LED lights red.
4. When the LED turns off, remove the handstrap.

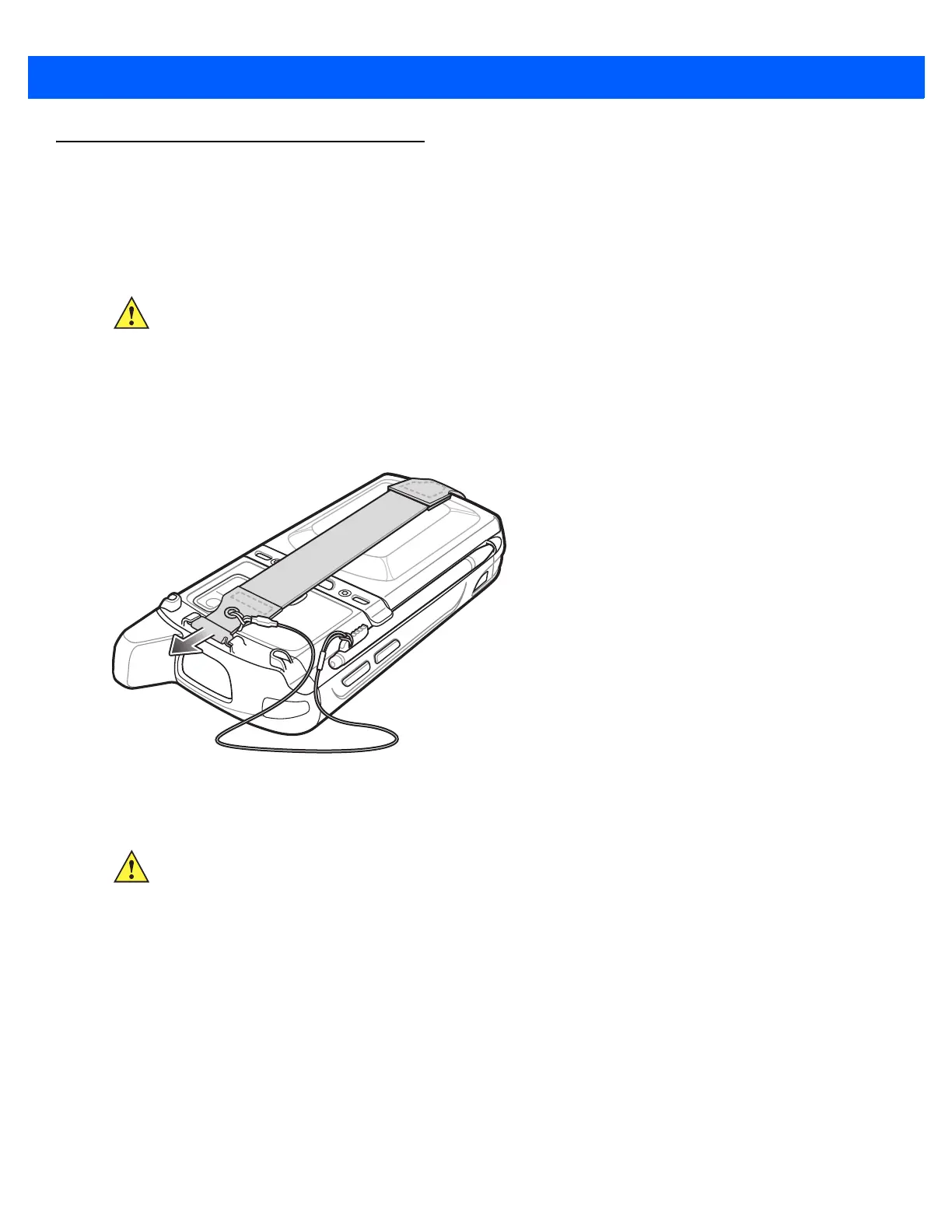

Figure 2-35 Handstrap Clip Removal
5. Remove the battery.
6. Using a small flat screwdriver, push the head of the screwdriver between the handstrap pin and the bottom
of the housing as shown below.
7. Pry the handstrap and pin up and out of the handstrap mount area.
CAUTION Close all running applications prior to replacing the handstrap. The backup battery maintains data for
up to 15 minutes. If replacement takes longer than 15 minutes data may be lost.
CAUTION When removing handstrap pin, be careful not to damage handstrap mounting area.

Zebra MC67 Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	-
Flash memory	2 GB
Internal memory	0.512 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	Instruments OMAP
Processor frequency	0.8 GHz
Processor manufacturer	Texas Instruments
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3600 mAh
Data network	4G, HSPA+
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Keyboard layout	QWERTY
Operating system installed	Windows Mobile 6.5

Weight and Dimensions

Depth	33.5 mm
Width	77 mm
Height	162.2 mm
Weight	385 g
