2 - 16 MC67 Integrator Guide
Wall Mount Bracket
Use the optional Wall Mount Bracket to mount a four slot cradle to a wall. To attach the Wall Mount Bracket:
1. Use the Wall Mount Bracket as a template and mark the locations of the four mounting screws.
2. Mount the fasteners to the wall. The screw heads should protrude about a half of an inch from the wall.
3. Slip the Wall Mount Bracket over the screw heads and slide the bracket down over the screw heads.
4. Tighten the screws to secure the bracket to the wall.

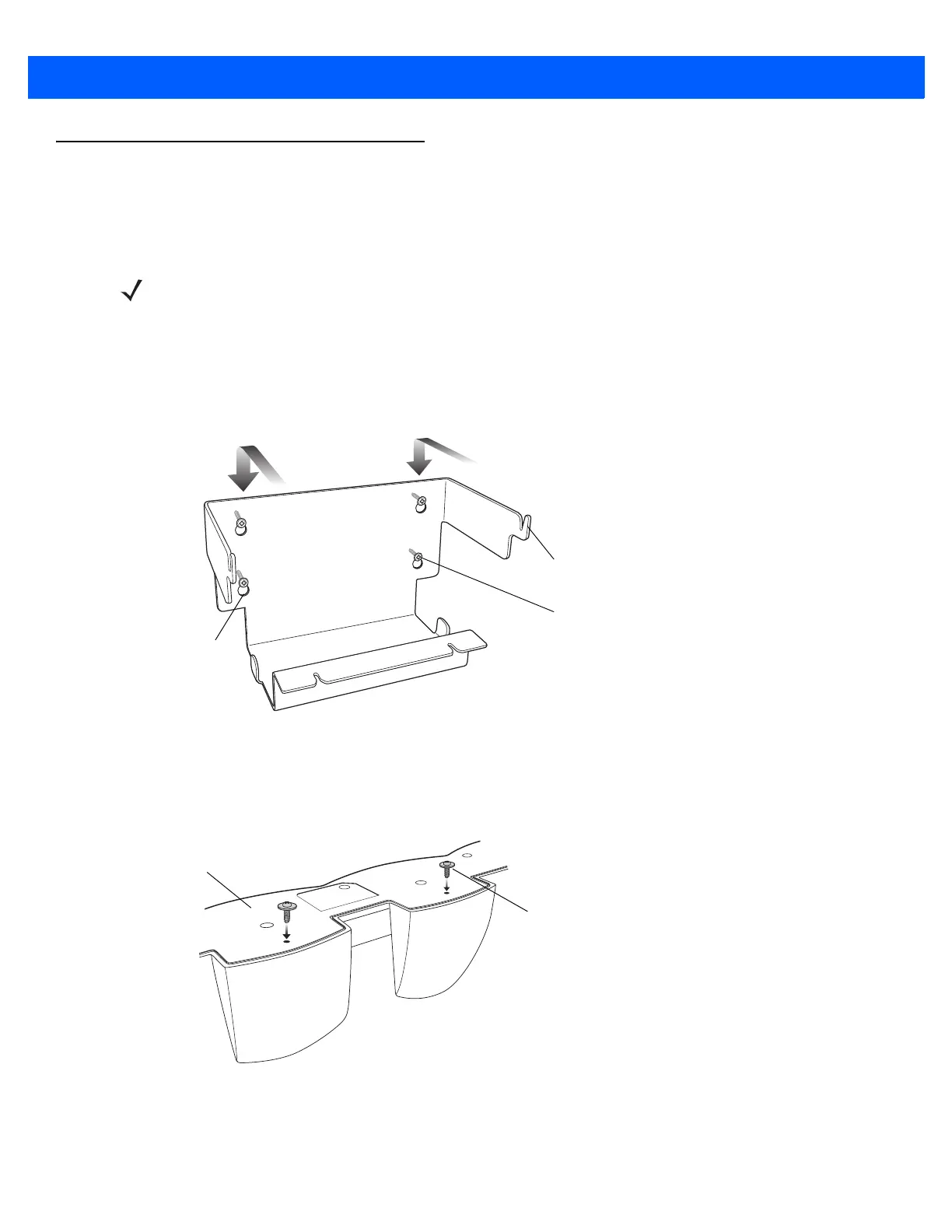

Figure 2-17
Wall Mount Bracket
To mount a four slot cradle:
1. Screw the supplied screws into the bottom of the four slot cradle. The screw heads should protrude about
a quarter of an inch from the cradle.
Figure 2-18
Cradle Mounting Screws
2. Align the Wall Mount Bracket mounting tabs with the mounting slots in the back of the four slot cradle. Slip
the two mounting tabs into mounting slots.
NOTE Use fasteners appropriate for the type of wall and the Wall Mount Bracket mounting slots. The Wall Mount
Bracket mounting slots are designed for a fastener with a #8 pan head. Fasteners must be able to hold a
minimum of 4.9 Kg (10.8 lbs).
Mounting Screw (4)
Mounting Tab (2)
Mounting Slot
Mounting Screw (2)
Four Slot
Cradle Bottom
