Accessories 2 - 9
Four Slot Ethernet Cradle
This section describes how to set up and use a Four Slot Ethernet cradle with the MC67.
The Four Slot Ethernet cradle:
•
Provides 5.4 VDC power for operating the MC67.
•
Connects the MC67 (up to four) to an Ethernet network.
•
Simultaneously charges up to four MC67s.
The user cannot ActiveSync using the Four Slot Ethernet cradle. To ActiveSync with a host computer, use the
Single Slot USB/Serial cradle, USB Charging cable or Serial Charging cable.

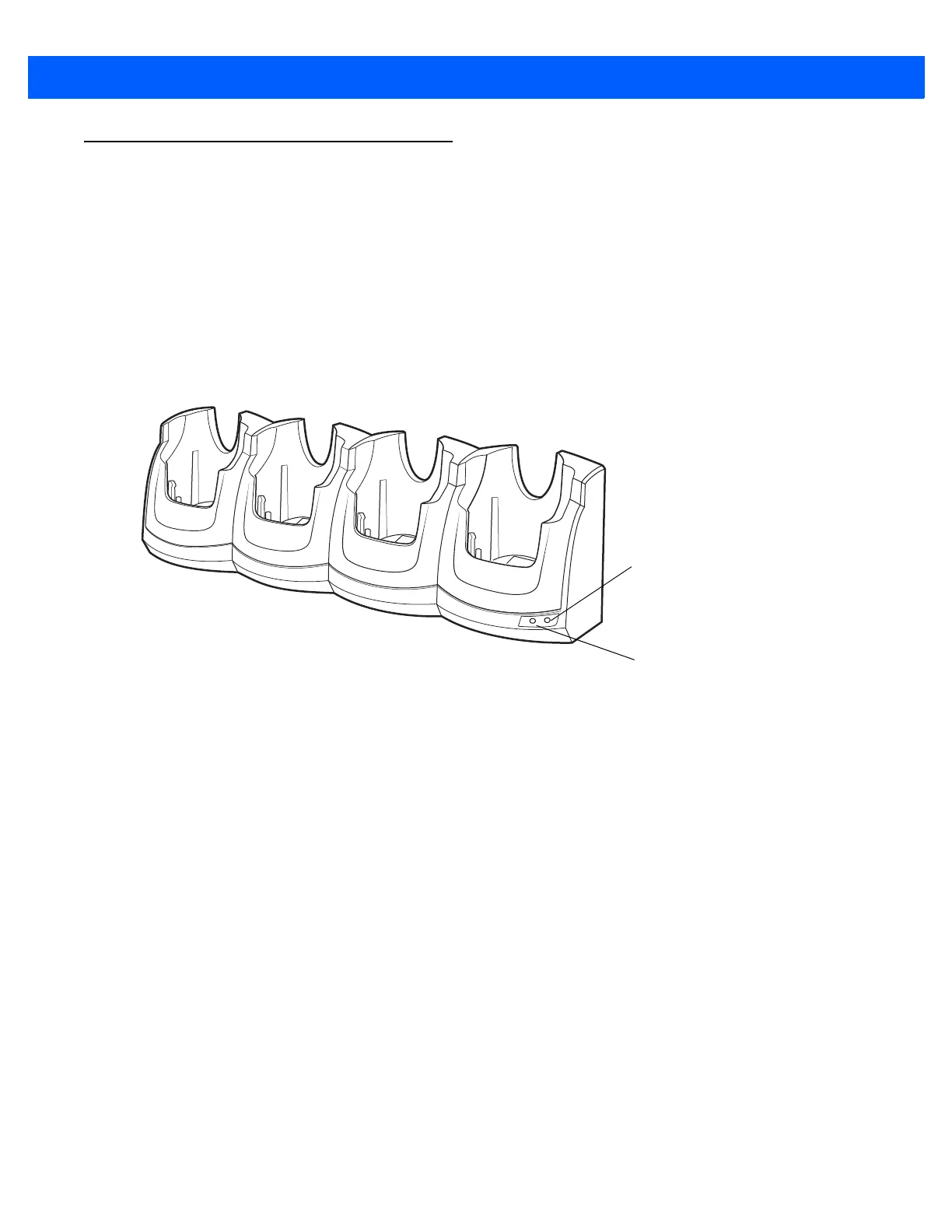

Figure 2-7
Four Slot Ethernet Cradle
CRD5500-4000ER Setup
Connect the Four Slot Ethernet cradle to a power source and to an Ethernet switch, router, or hub, or a port on
the host device.
Yellow Link LED (CRD5500-4000ER)
Green 100 LED (CRD5501-4001ER)
Green Speed LED (CRD5500-4000ER)
Green 1000 LED (CRD5501-4001ER)
