2 - 6 MC67 Integrator Guide
Single Slot Ethernet/Modem/USB Cradle
This section describes how to set up and use a Single Slot Ethernet/Modem/USB cradle with the MC67. For
USB communication setup procedures see Chapter 3, Synchronization.
The Single Slot Ethernet/Modem/USB cradle:
•
Provides 5.4 VDC power for operating the MC67.
•
Connects the MC67 to a host computer using USB, a dial-up network using the modem or an Ethernet
network.
•
Charges the MC67’s battery.
•
Charges a spare battery.
Country Settings
The modem defaults to operation with US telephone networks. To operate the modem with other country
telephone networks, it must be configured using an application on the MC67. Download the Cradle Modem
Country Configurator Application Software for MC55xx package from the Zebra Support Central web site:
http://www.zebra.com/support.
Following the instructions with the software package to install the application on the MC67. The application
includes country selections for all supported countries and automatically programs the modem and adjust its
operating parameters to comply with the telephone network in the selected country.
Setup

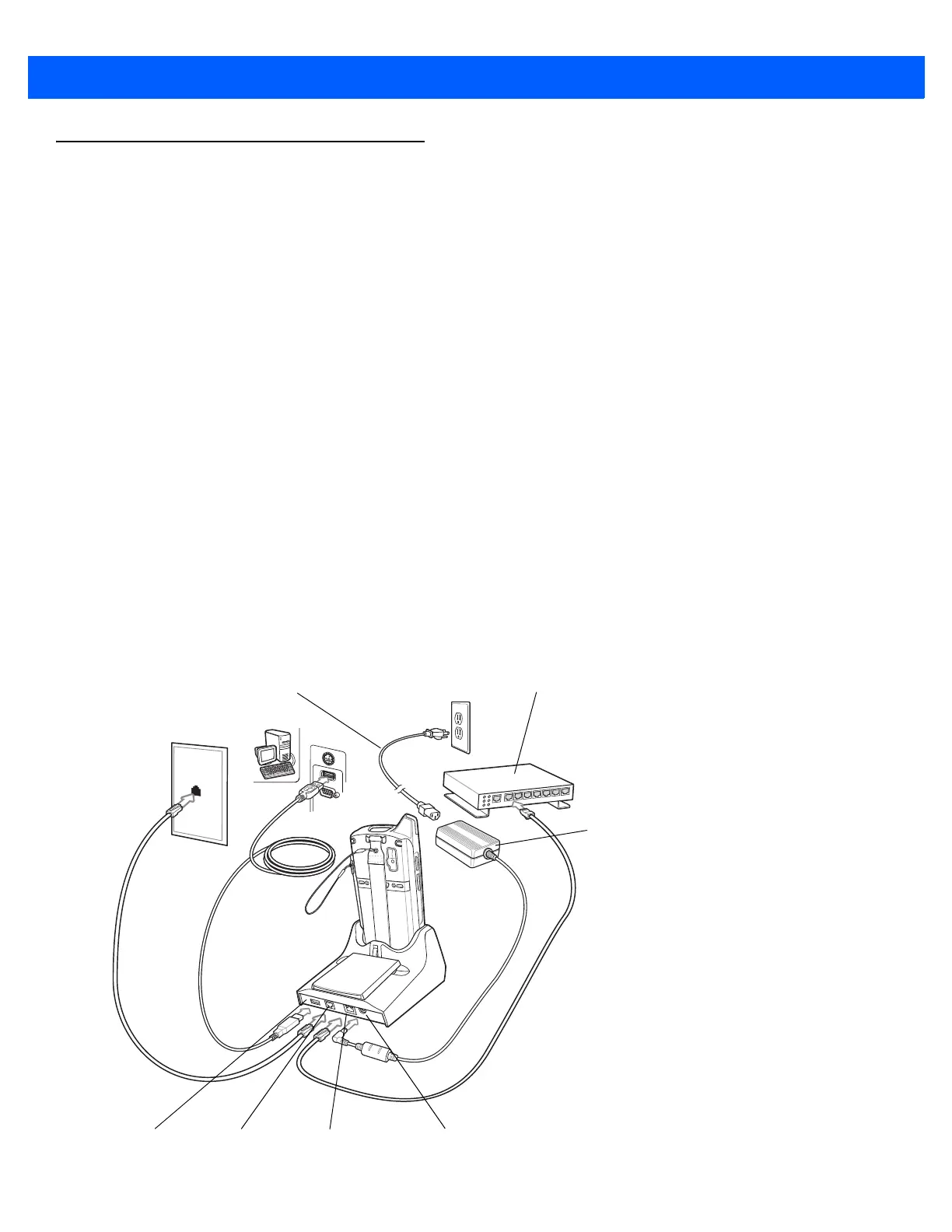

Figure 2-4
Cradle Setup
Power Supply
Ethernet Port Power Port
AC Line Cord
USB Port Phone Port
Ethernet Hub
To Next Page
