2 - 10 MC67 Integrator Guide

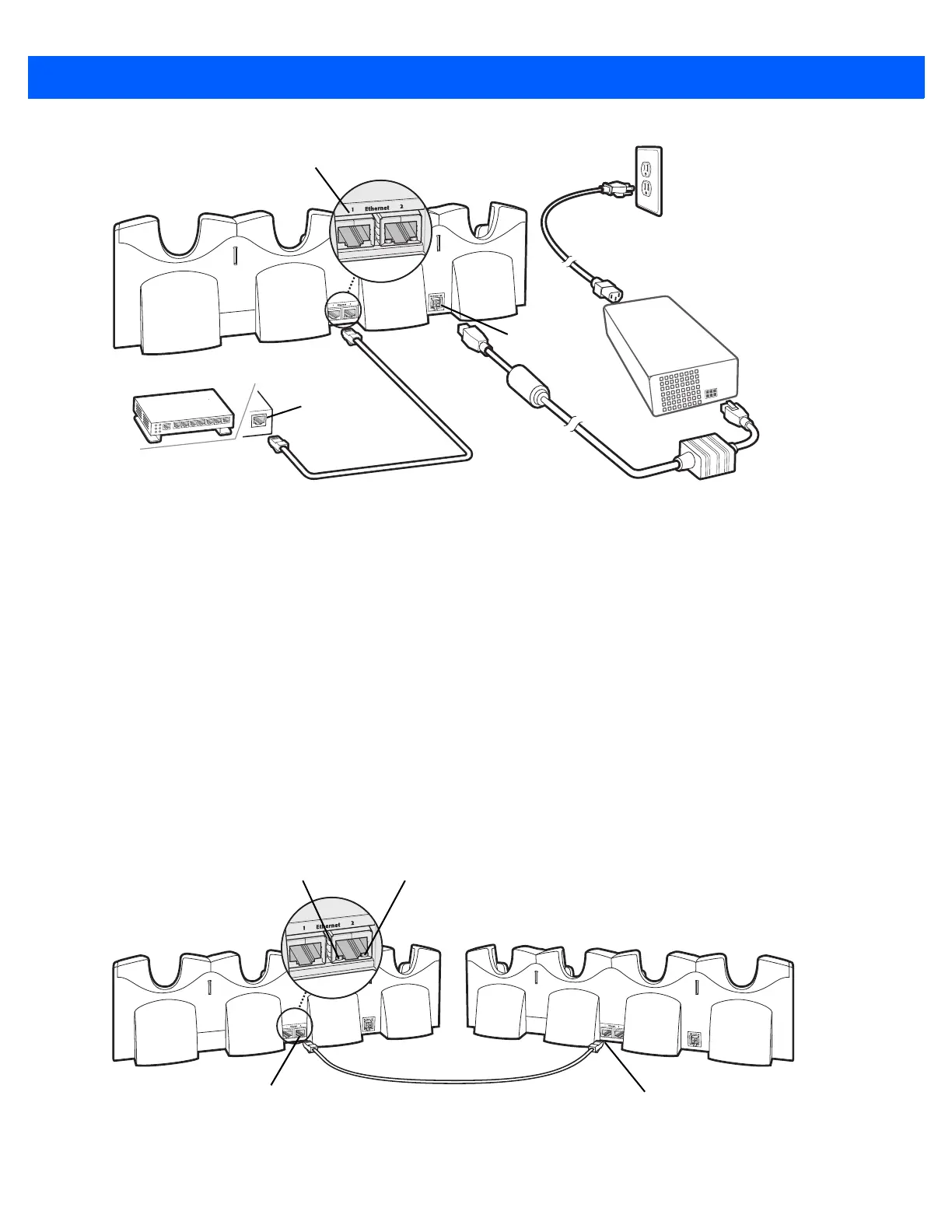

Figure 2-8 CRD5500-400ER Four Slot Ethernet Cradle Connection
Daisychaining Ethernet Cradles
Daisychain up to four Ethernet cradles to connect several cradles to an Ethernet network. Use either a straight
or crossover cable. Daisy-chaining should not be attempted when the main Ethernet connection to the first
cradle is 10 Mbps as throughput issues will almost certainly result.
To daisychain more than one Four Slot Ethernet cradle:
1. Connect power to each Four Slot Ethernet cradle.
2. Connect an Ethernet cable to the Ethernet 1 port of the first cradle and to the Ethernet switch. See Figure
2-8.
3. On the first Four Slot Ethernet cradle, connect a second Ethernet cable to the Ethernet 2 port. See Figure
2-9.
4. Connect the other end of the Ethernet cable to the Ethernet 1 port of the second Four Slot Ethernet cradle.
5. Connect additional cradles as described in step 3 and 4.
Figure 2-9 Daisychaining Four Slot Ethernet Cradles
Power Port
Ethernet Switch,
Router, or Hub
Connection
Ethernet 1Port
Ethernet 1 Port
Ethernet 2 Port
Right LED
Left LED

Zebra MC67 Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	-
Flash memory	2 GB
Internal memory	0.512 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	Instruments OMAP
Processor frequency	0.8 GHz
Processor manufacturer	Texas Instruments
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3600 mAh
Data network	4G, HSPA+
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Keyboard layout	QWERTY
Operating system installed	Windows Mobile 6.5

Weight and Dimensions

Depth	33.5 mm
Width	77 mm
Height	162.2 mm
Weight	385 g
