Input DIO2 is used as a digital input. 1
Freq output DIO2 is used as a frequency output. 3
14.07 DIO2 out src Selects a drive signal to be connected to digital output DIO2
(when 14.06 DIO2 conf is set to Output).
Brake cmd 03.16 Brake command (see page 115). 1073742608
Ready Bit 0 of 06.01 Status word1 (see page 116). 1073743361
Enabled Bit 1 of 06.01 Status word1 (see page 116). 1073808897
Started Bit 2 of 06.01 Status word1 (see page 116). 1073874433
Running Bit 3 of 06.01 Status word1 (see page 116). 1073939969
Alarm Bit 7 of 06.01 Status word1 (see page 116). 1074202113
Ext2 active Bit 8 of 06.01 Status word1 (see page 116). 1074267649
Fault Bit 10 of 06.01 Status word1 (see page 116). 1074398721
Fault(-1) Bit 12 of 06.01 Status word1 (see page 116). 1074529793
Ready relay Bit 2 of 06.02 Status word2 (see page 117). 1073874434
RunningRelay Bit 3 of 06.02 Status word2 (see page 117). 1073939970
Ref running Bit 4 of 06.02 Status word2 (see page 117). 1074005506
Charge ready Bit 9 of 06.02 Status word2 (see page 117
). 1074333186
Neg speed Bit 0 of 06.03 Speed ctrl stat (see page 118). 1073743363
Zero speed Bit 1 of 06.03 Speed ctrl stat (see page 118). 1073808899
Above limit Bit 2 of 06.03 Speed ctrl stat (see page 118). 1073874435
At setpoint Bit 3 of 06.03 Speed ctrl stat (see page 118). 1073939971
Supervision1 Bit 0 of 06.13 Superv status (see page 119). 1073743373
Supervision2 Bit 1 of 06.13 Superv status (see page 119). 1073808909
Supervision3 Bit 2 of 06.13 Superv status (see page 119). 1073874445
Const Bit pointer setting (see Terms and abbreviations on page
102).
-
Pointer

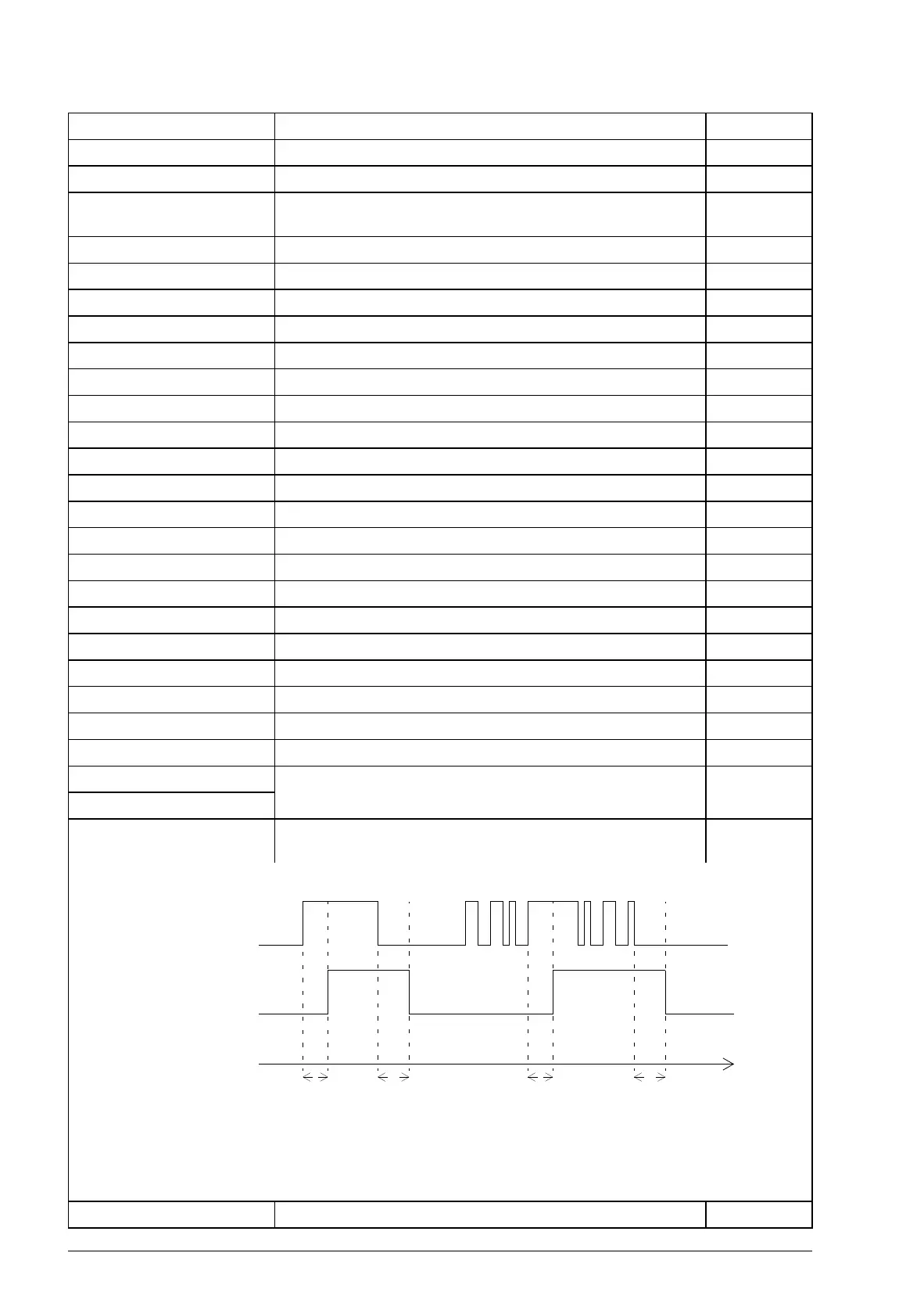

14.08 DIO2 Ton Defines the on (activation) delay for digital input/output DIO2
when 14.06 DIO2 conf is set to Output.
0.0 … 3000.0 s On (activation) delay for DIO2 when set as an output. 10 = 1 s
No. Name/Value Description FbEq
1
0
1
0
t
On
t
Off
t
On
t
Off
t
On
14.08 DIO2 Ton
t
Off
14.09 DIO2 Toff
Drive status
DIO2 status
Time
