30 The ACS850 control panel
How to change the value of bit pointer parameter to fixed 0 (FALSE) or 1 (TRUE)
The bit pointer parameter can be fixed to constant value of 0 (FALSE) or 1 (TRUE).
When adjusting a bit pointer parameter on the control panel, CONST is selected in
order to fix the value to 0 (displayed as C.FALSE) or 1 (C.TRUE).

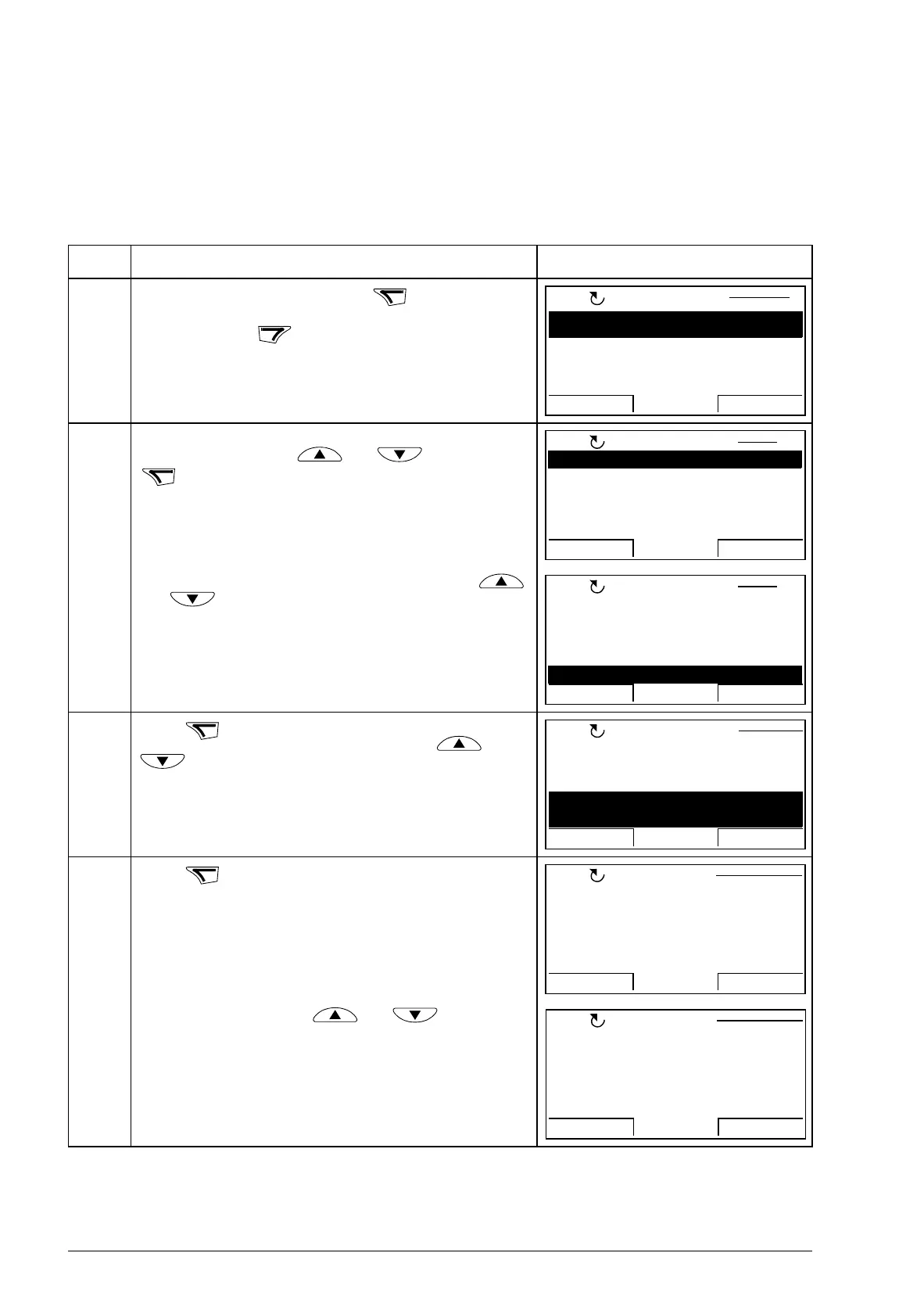

Step Action Display
1. Go to the Main menu by pressing if you are in the
Output mode.
Otherwise press repeatedly until you get to the
Main menu.
2. Go to the Parameters option by selecting PARAMETERS
on the menu with keys and , and pressing
.
Select the appropriate parameter group with keys
and . Here the bit pointer parameter 14.07 DIO2
out src is used as an example.
3. Press to select the appropriate parameter group.
Select the appropriate parameter with keys and
. Current value of each parameter is shown below
its name.
4. Press .
Select CONST with keys and .
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER
00:00
MAIN MENU 1
LOC
ENTER
01 Actual values
02 I/O values
03 Control values
04 Appl values
06 Drive status
EXIT
SEL00:00
PAR GROUPS 01
LOC
10 Start/stop/dir
11 Start/stop mode
12 Operating mode
13 Analogue inputs
14 Digital I/O
EXIT SEL
00:00
PAR GROUPS 14
LOC
SEL
1404 DIO1 Ton9901
1405 DIO1 Toff
1406 DIO2 conf
1407 DIO2 out src
P.06.02.03
PARAMETERS
EXIT EDIT00:00
LOC
EDIT
1407 DIO2 out src
PAR EDIT
Pointer
CANCEL NEXT
00:00
LOC
1407 DIO2 out src
PAR EDIT
Const
CANCEL NEXT00:00
LOC
