4.5.3. Replacement of spherical roller bearing, balancing device
2933HAC026876-001 Revision: F
© Copyright 2007-2010 ABB. All rights reserved.

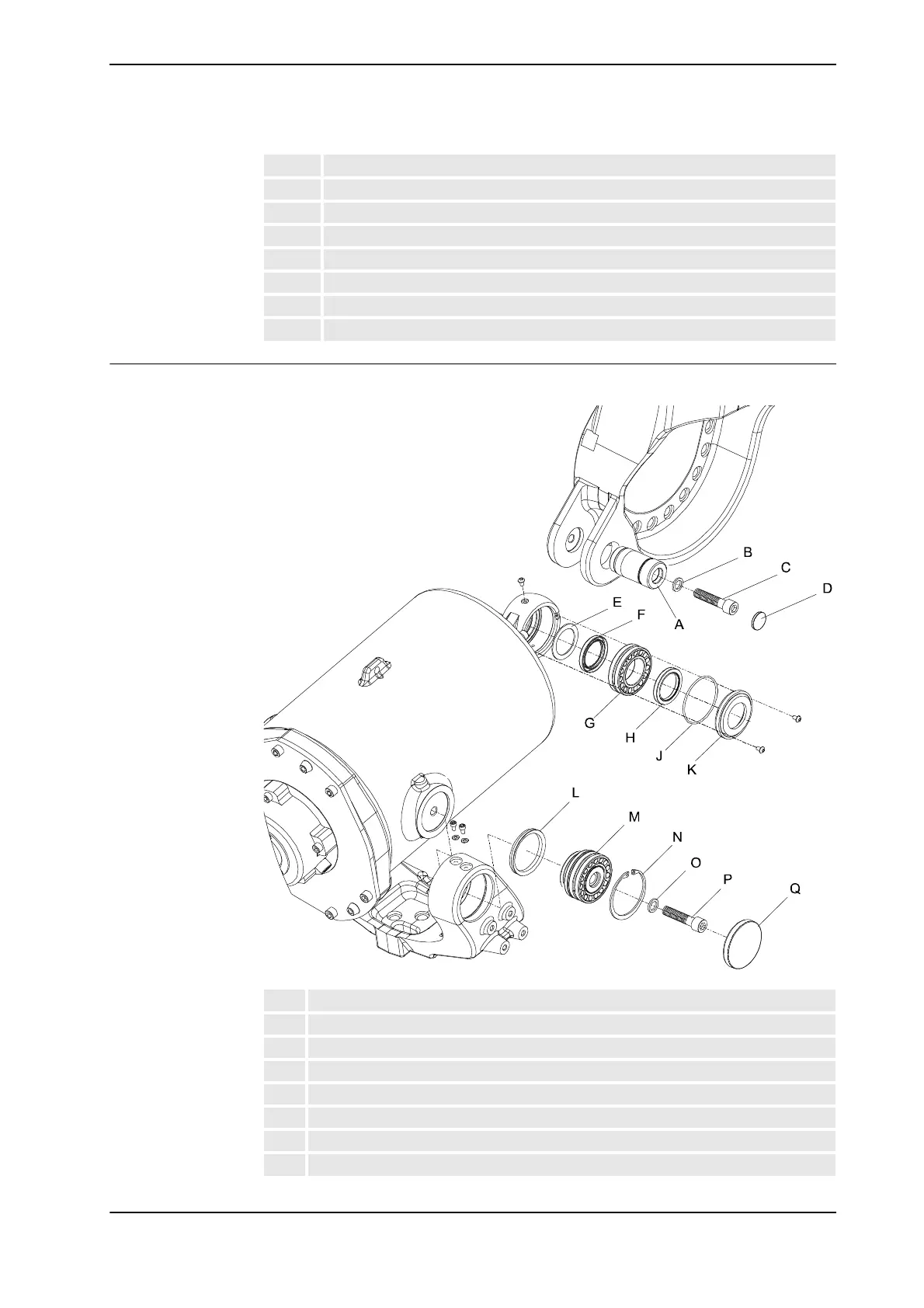

Location of bearing, Design 2
xx0900000066
E Shaft
F Retaining ring, bore
H VK-cover
J VK-cover
K Retaining ring, bore
L Cradle bearing kit
M Hex socket head cap screw M16x70
N Sealing washer
A Shaft
B Washer
C Hex socket head cap screw M16x70
D VK-cover
E Washer
F Radial sealing with dust lip 50x68x8
G Spherical roller bearing
H Radial sealing with dust lip 50x68x8
Continued
Continues on next page
