7 Reference information
7.8. Dismounting and mounting tool 3HAC028920-001
3HAC026876-001 Revision: F414
© Copyright 2007-2010 ABB. All rights reserved.
Tool description

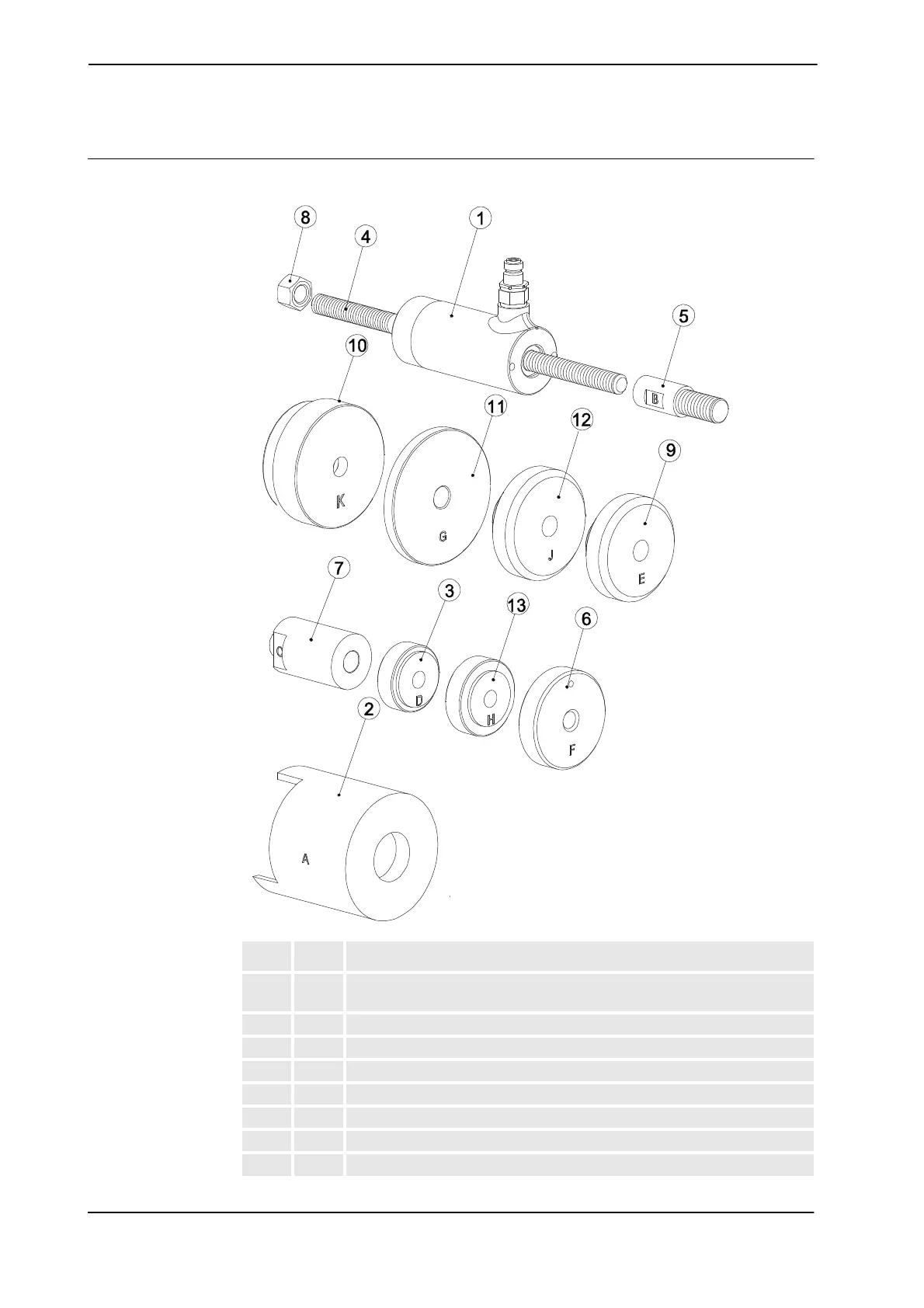

xx0900000024
Item Mark Description
1 Hydraulic cylinder not included in tool 3HAC028920-001 (ordered sepa-
rately).
2 A Press tool D=103
3 D Press tool D=54
4 Threaded bar, M16
5 B Adapter M16/M20
6 F Knurled nut D=80
7 C Slide hammer / Distance
8 Nut M16
Continued
Continues on next page
