ABB IRB 930 - Page 199

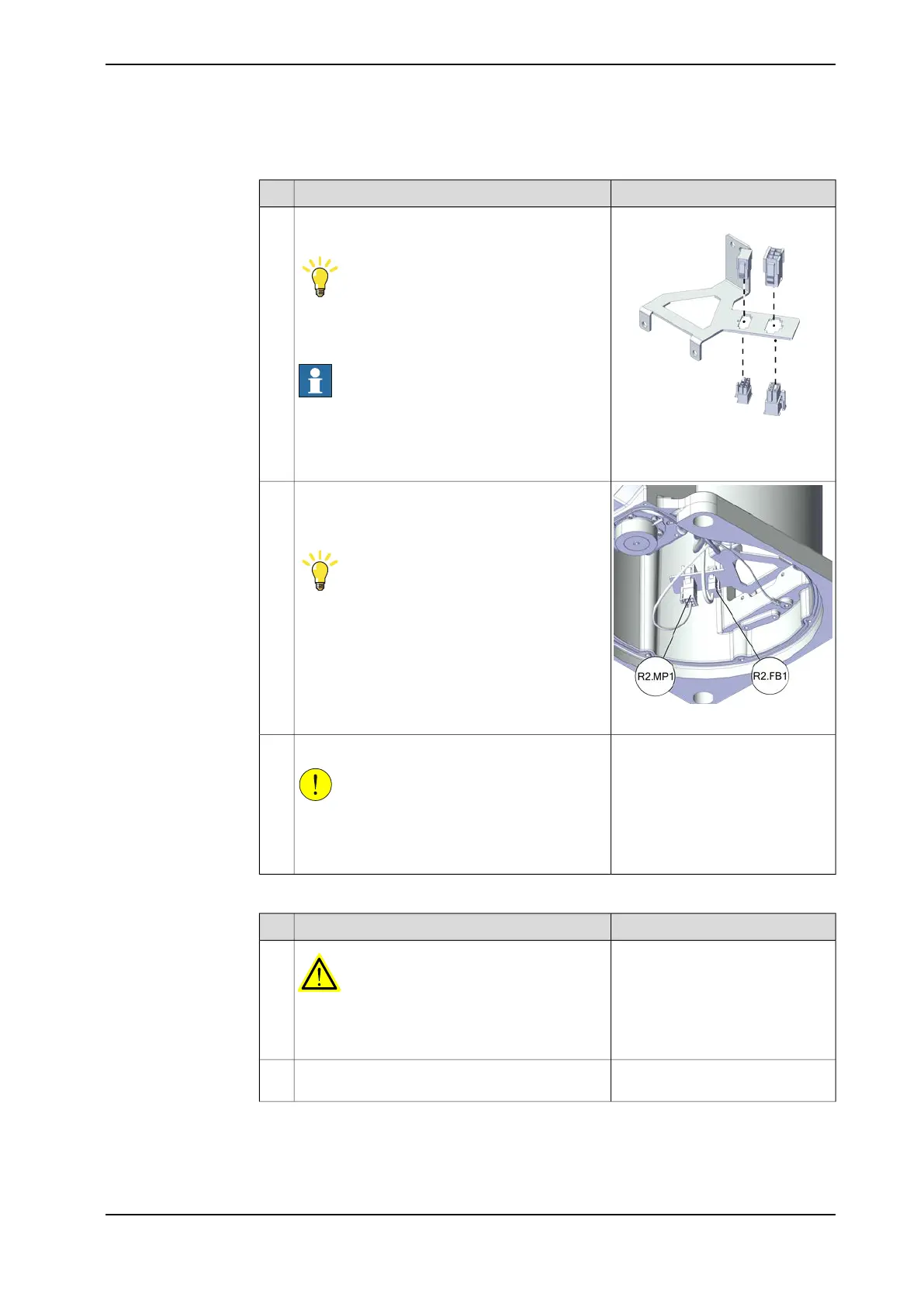

Reconnecting the connectors for axis-1 motor
NoteAction
xx2300000505
Insert the female head of the connectors to the
bracket accordingly.
Tip
The mistake proofing measure has been applied
to the connectors, the connectors may be dam-
aged if excessive force is used.
Note
The harness are not visible due to the cleanness
requirements of the illustration. They are still ex-
isting inside the cable ferrule in the actual situ-
ation.
1
xx2300000504
Reconnect the connectors.
• R2.MP1
• R2.FB1
Tip
See the number markings on the connectors for
help to find the corresponding connector.
2
Route the cabling behind the axis-1 motor.
CAUTION
Correct cable routing is highly important.
If the cables are routed and secured incorrectly
the cables can be damaged.
3
Refitting the base bracket
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
Lay the main harness in a natural state without
distortion.
2
Continues on next page
Product manual - IRB 930 199
3HAC086009-001 Revision: A
© Copyright 2023 ABB. All rights reserved.
5 Repair
5.4.1 Replacing the base
Continued
