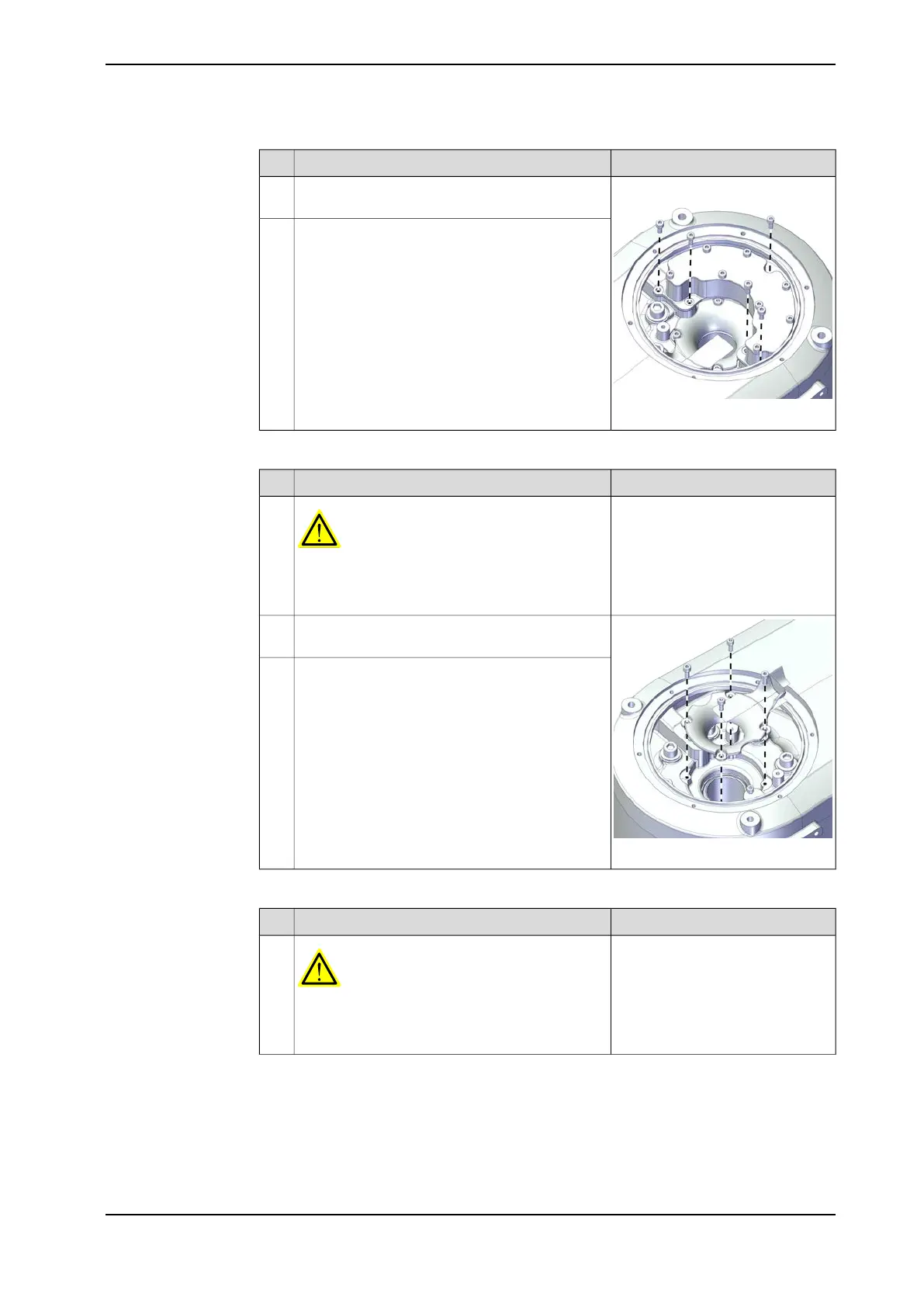

ABB IRB 930 - Page 239

NoteAction
xx2300000511
Remove the screws on the oil tank to the inner
arm.
2
Remove the oil tank.3
Removing the protection tube
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
xx2300000513
Remove the screws on the protection tube to the
inner arm.
2
Remove the protection tube.3
Removing the base from inner arm
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
Continues on next page
Product manual - IRB 930 239
3HAC086009-001 Revision: A
© Copyright 2023 ABB. All rights reserved.
5 Repair
5.5.1 Replacing the inner arm
Continued
