ABB IRB 930 - Page 501

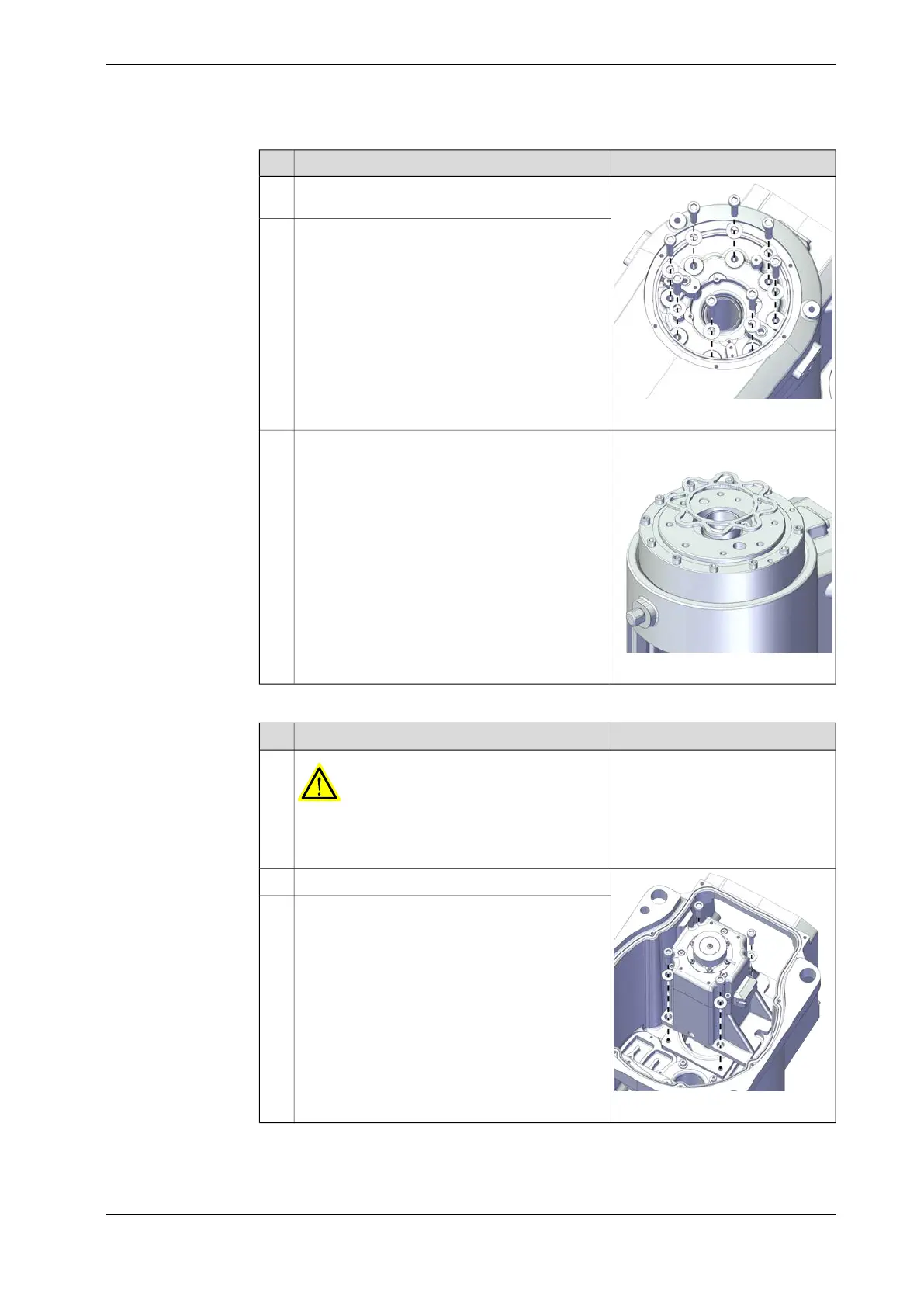

NoteAction
xx2300000514
Remove the screws and washers on the inner to
the axis-1 gear unit.
2
Disconnect the axis-1 gear to the inner arm.3
xx2300000602
Remove the BassSwing gasket on the axis-1 gear
unit.
4
Removing the axis-1 motor sub-assembly
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
xx2300000512
Remove the screws and washers.2
Remove the motor.3
