-EN Rev. E Operating instruction SCK Gas Sampling System 109
Proceed as follows to connect power supply lines:
Step Procedure
1
On the control cabinet: Turn off the main switch.
2

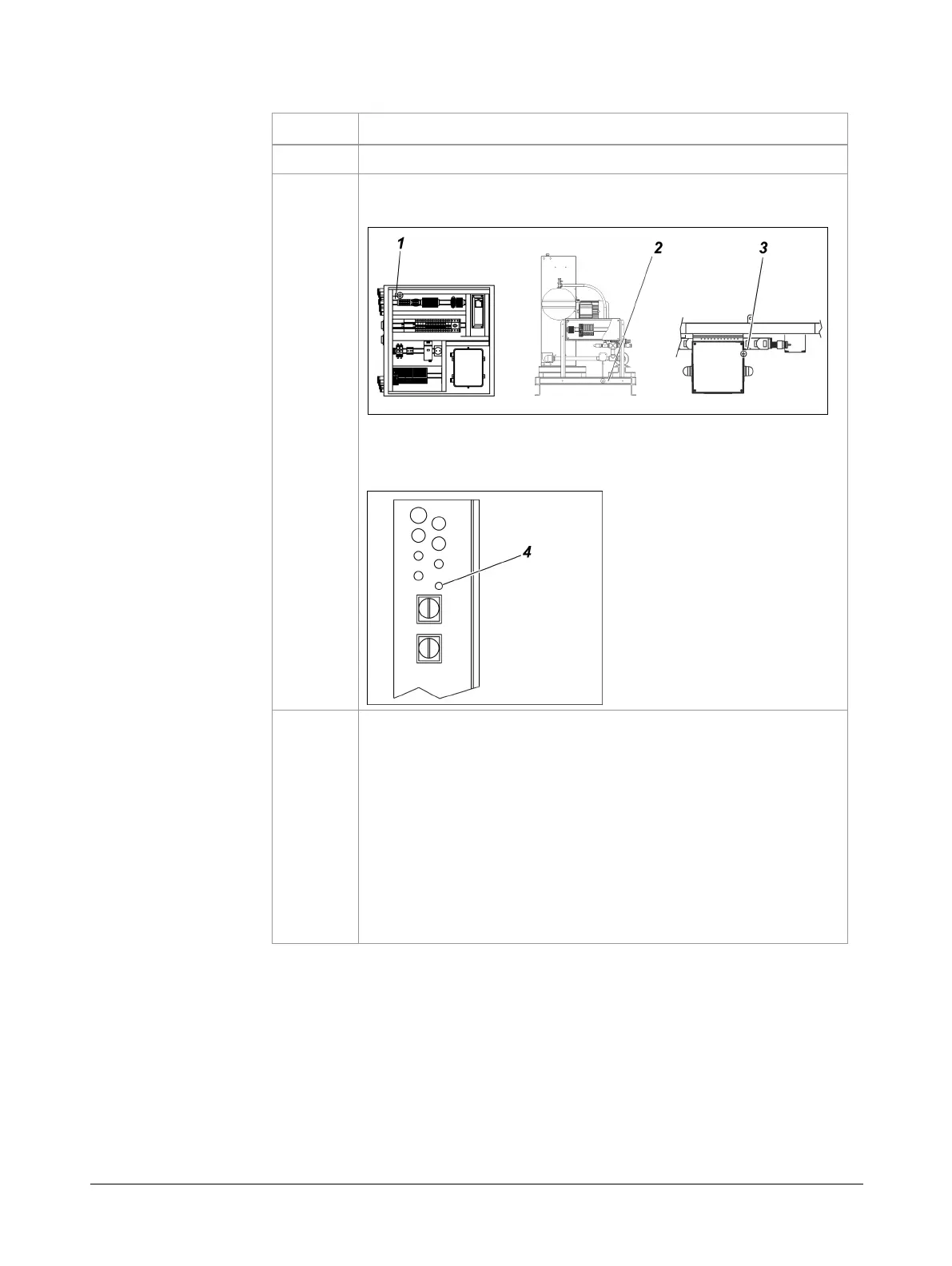

Affix ground cable to ground bolt of control cabinet
(1)
, cooling
module
(2)
and probe retractor
(3)
.
In order to ground the control cabinet, run the ground cable
through cable connection M16
(4)
on the side wall of the con-
trol cabinet:
3
Install external electric lines in accordance with the specifica-
tions of the electrical connection plan (see appendix). This
applies to:
 230/400 VAC supply cable
 UPS supply cable 230 VAC (optional)
 Signal cable for movable protective installation
 Signal cable for external warning horn
 System status signal cable
 Profibus cable to analyzer cabinet (option "Profibus DP")
 Modbus cable to analyzer cabinet (option "ACX")
