User interface: Parameter screen

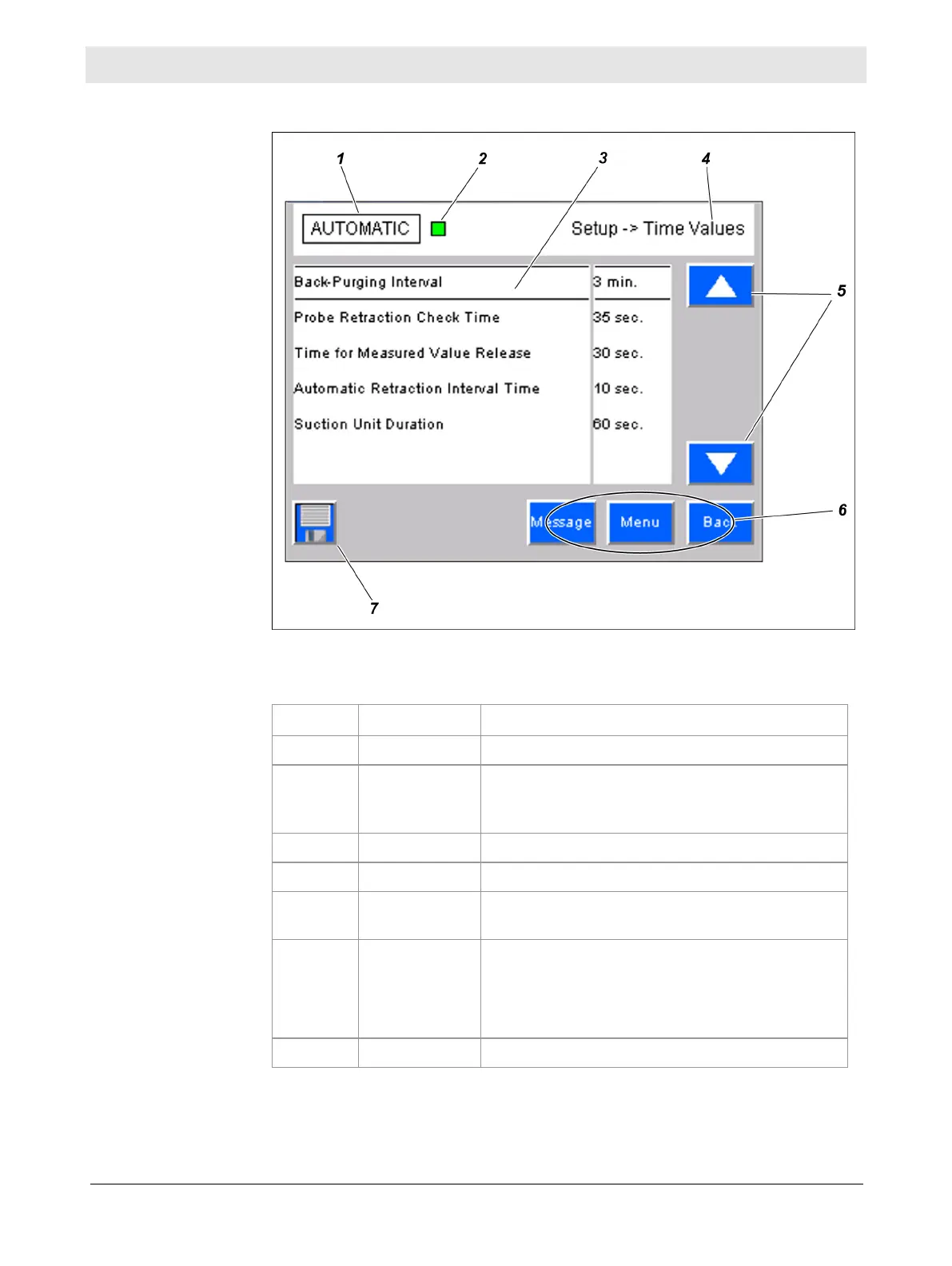

This is a typical parameter screen:
The various areas of the screen have the following functions:
No. Designation Function
1
Mode Displays the mode (AUTOMATIC, MANUAL)
2
System status
lights
Displays the current system status (normal
operation, error, maintenance requirement,
maintenance)
3
Display area List of parameters
4
Current menu Menu path display
5
Screen
navigation
Allows navigation in the parameter list
6
Navigation
area
Allows the following functions:
 jump to Message menu
 jump to main menu
 jump to previous menu
7
Save Saves parameter settings
Illustration
Screen areas
