Transport the system in the company
Risk of injury in the area of the gas sampling system due to moving or fall-
ing parts, anti-freeze, lubricating oil
Wear general personal protective equipment:
 Closed overalls with long trousers and long sleeves
 Safety shoes
 Safety gloves suitable for mechanical work
 Safety glasses
 Protective helmet
 If necessary, additional protective equipment if prescribed by the opera-
tor.
Danger of crushing when lifting or lowering the transport unit
 Only appropriately trained personnel may transport the transport units and
only with the aid of the recommended transport equipment.
 Do not stand under suspended loads.
 Follow the transport instructions in these operating instructions care-
fully.
Observe the following instructions with regard to transport in the company:
Module
Weight
Transport conditions
Retractor
including
probe
max. 500 kg
 Probe tip must be adequately fixed to the retractor (e.g. with a
load strap) in order to avoid bouncing, that may damage the roll-
ers and rails.
 Use the two enclosed transport supports for transport in the
company (see illustration in Probe retractor on page 24).

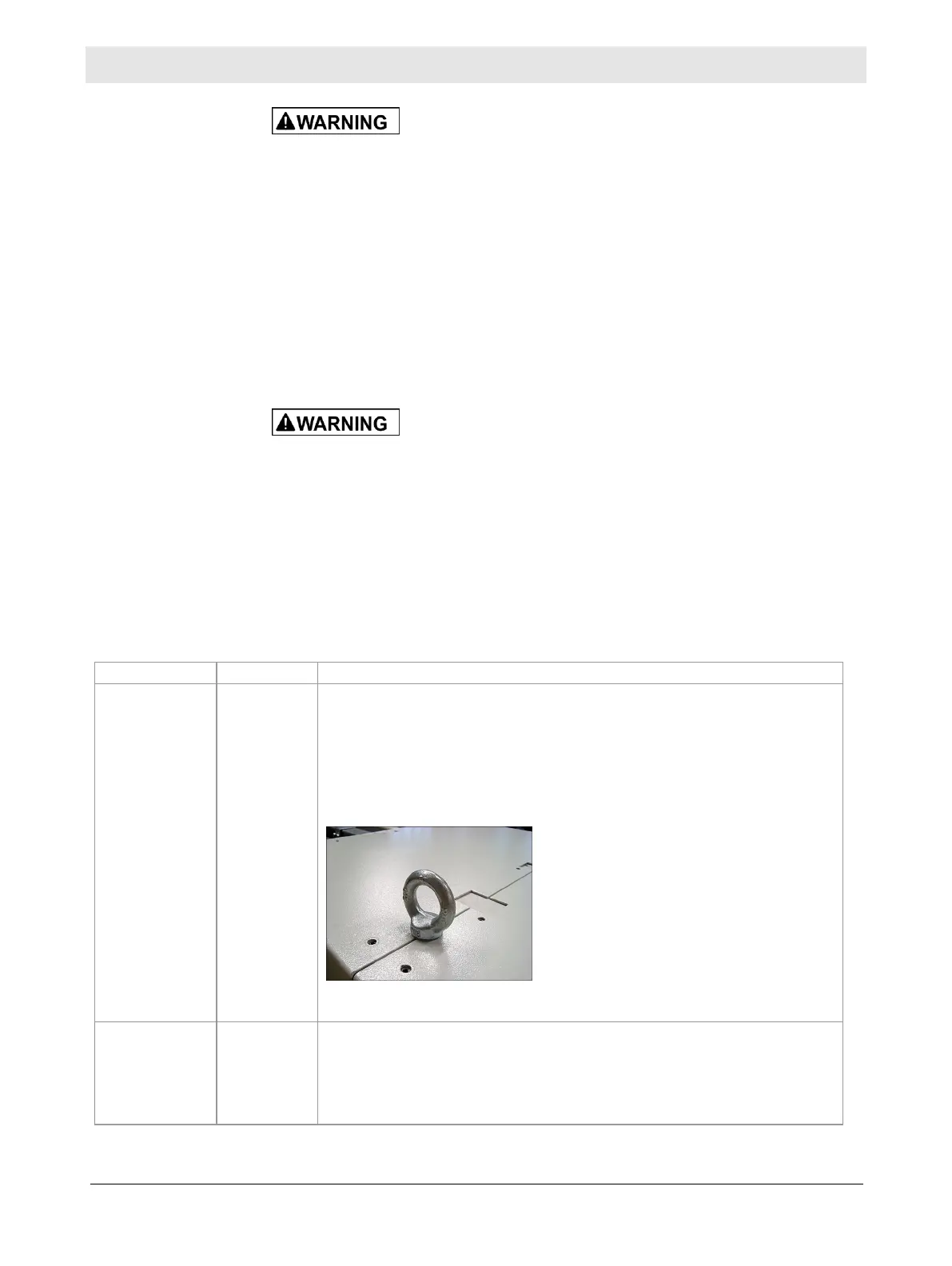

 Lifting gear may only be attached at the designated attachment
points (transport lugs).
 Transport recommendation: Crane
Note: Do not transport using a fork-lift truck.
Cooling mod-
ule
250 kg

Protect cooling fins with a board to avoid damage.
 Only store after draining all water.
 Lifting gear may only be attached at the designated attachment
points (transport lugs).

Transport recommendation: For-lift truck or crane
Mechanical and
material dangers
Heavy transport
units
Transporting the
modules
