User interface: Message screen

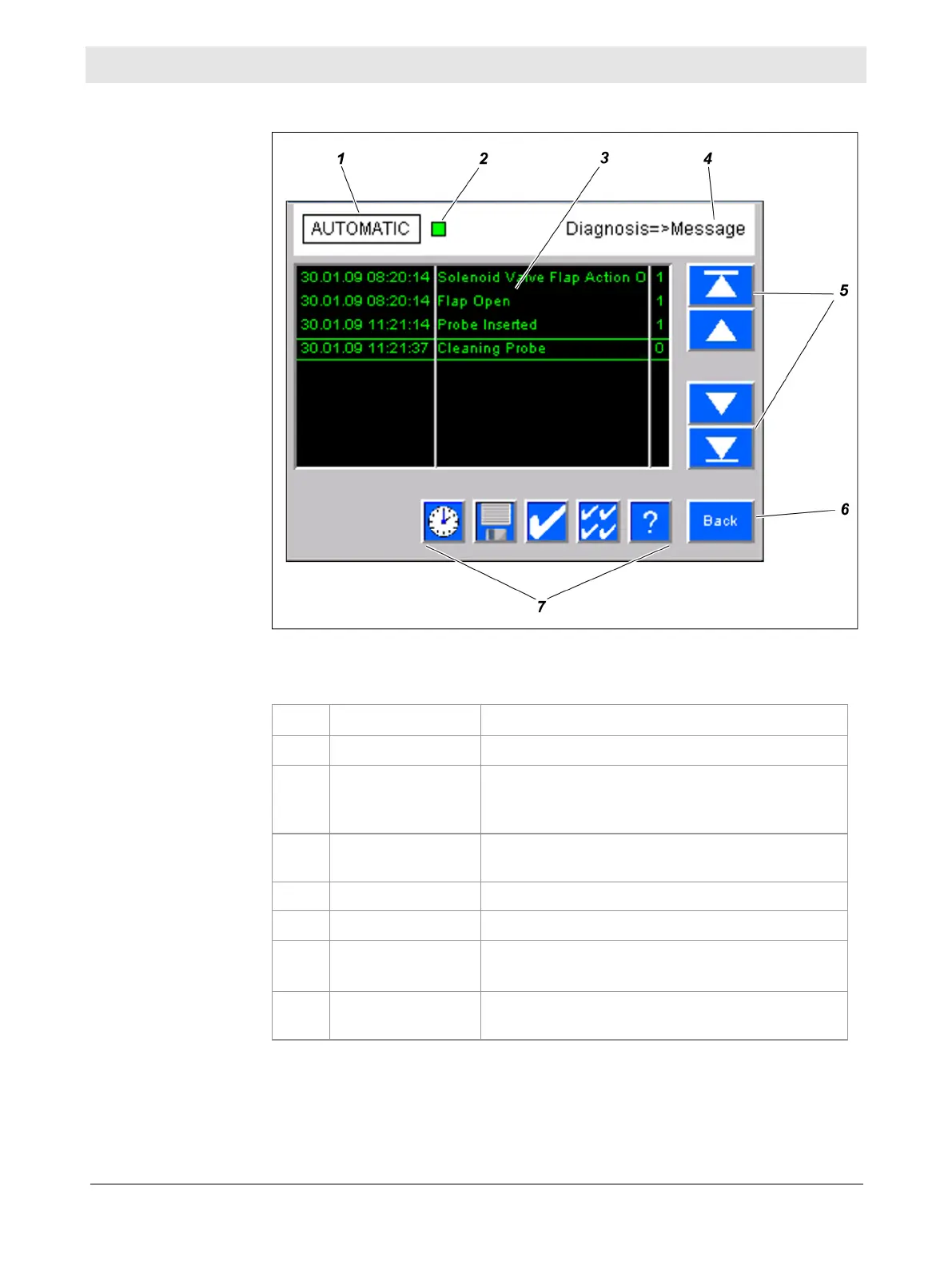

This is a typical message screen:
The various areas of the screen have the following functions:
No. Designation Function
1
Mode Displays the mode (AUTOMATIC, MANUAL)
2
System status
lights
Displays the current system status (normal
operation, error, maintenance requirement,
maintenance)
3
Display area Chronological list of messages with descrip-
tion of error and status
4
Current menu Menu path display
5
Scrollbar Scroll up and down in the logbook
6
Navigation area Allows the following functions:
jump to previous menu
7
Screen functions Allows functions such as save history, reset
message, etc. (see next page)
Illustration
To Next Page
