38 Operating instruction SCK Gas Sampling System OI/SCK-EN Rev. E
User interface: Operation screen

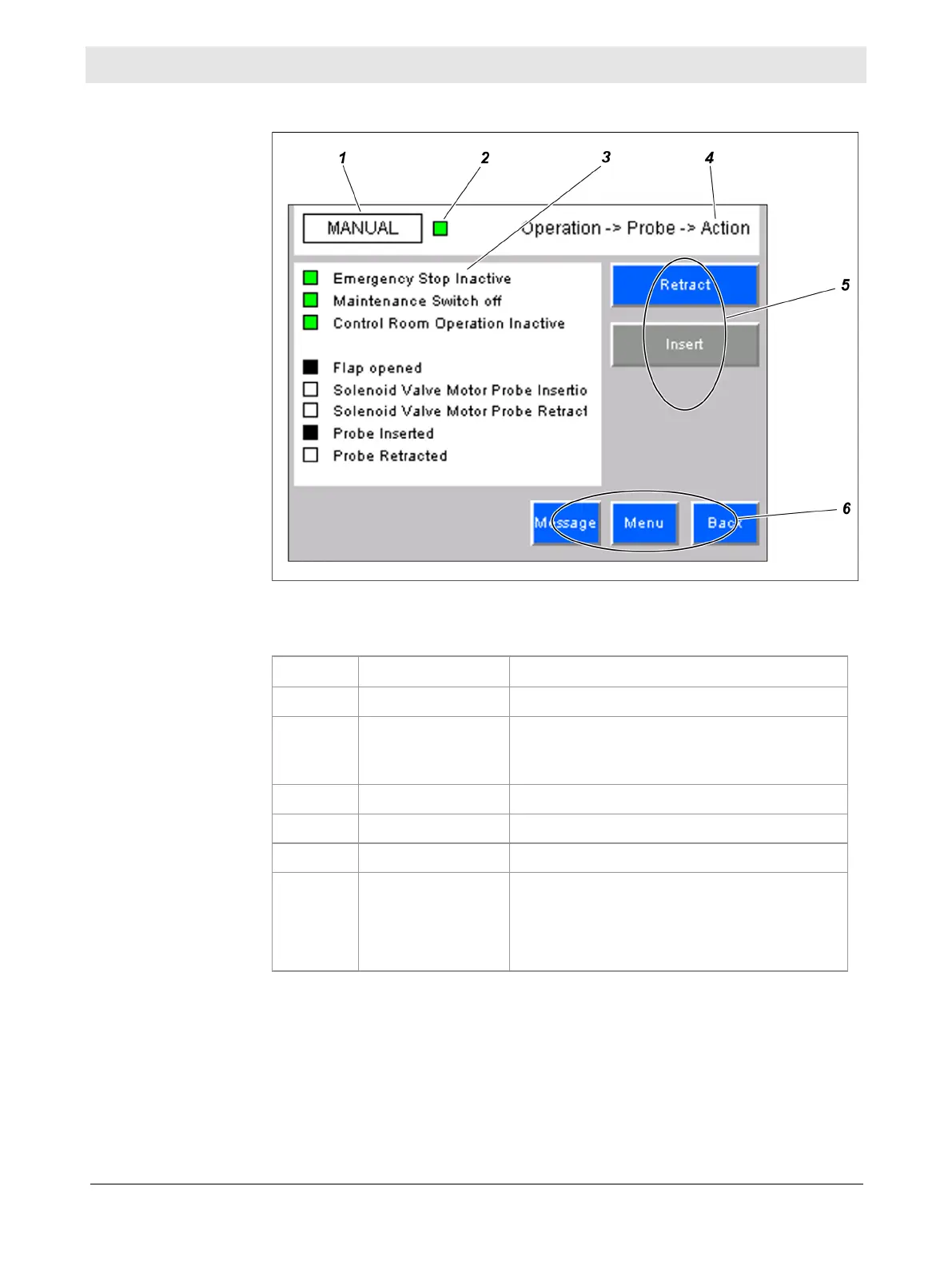

This is a typical operation screen:
The various areas of the screen have the following functions:
No. Designation Function
1
Mode Displays the mode (AUTOMATIC, MANUAL)
2
System status
lights
Displays the current system status (normal
operation, error, maintenance requirement,
maintenance)
3
Display area Current menu display area
4
Current menu Menu path display
5
Screen functions Displays screen functions and submenus
6
Navigation area Allows the following functions:
 jump to Message menu
 jump to main menu
 jump to previous menu
Illustration
Screen areas
