Controls and displays
The control cabinet is the central control point of the sampling system. The
electric power supply and signals for the entire sampling system are connect-
ed and distributed here. It is contains the display and operating unit for moni-
toring and operating the system.
The control program is equipped with various locking mechanisms that pre-
vent damage to the gas sampling probe due to incorrect operation or failure
of individual modules. If not all locking conditions are met, operation is not
possible. This safeguard is only overridden by personnel safety measures.

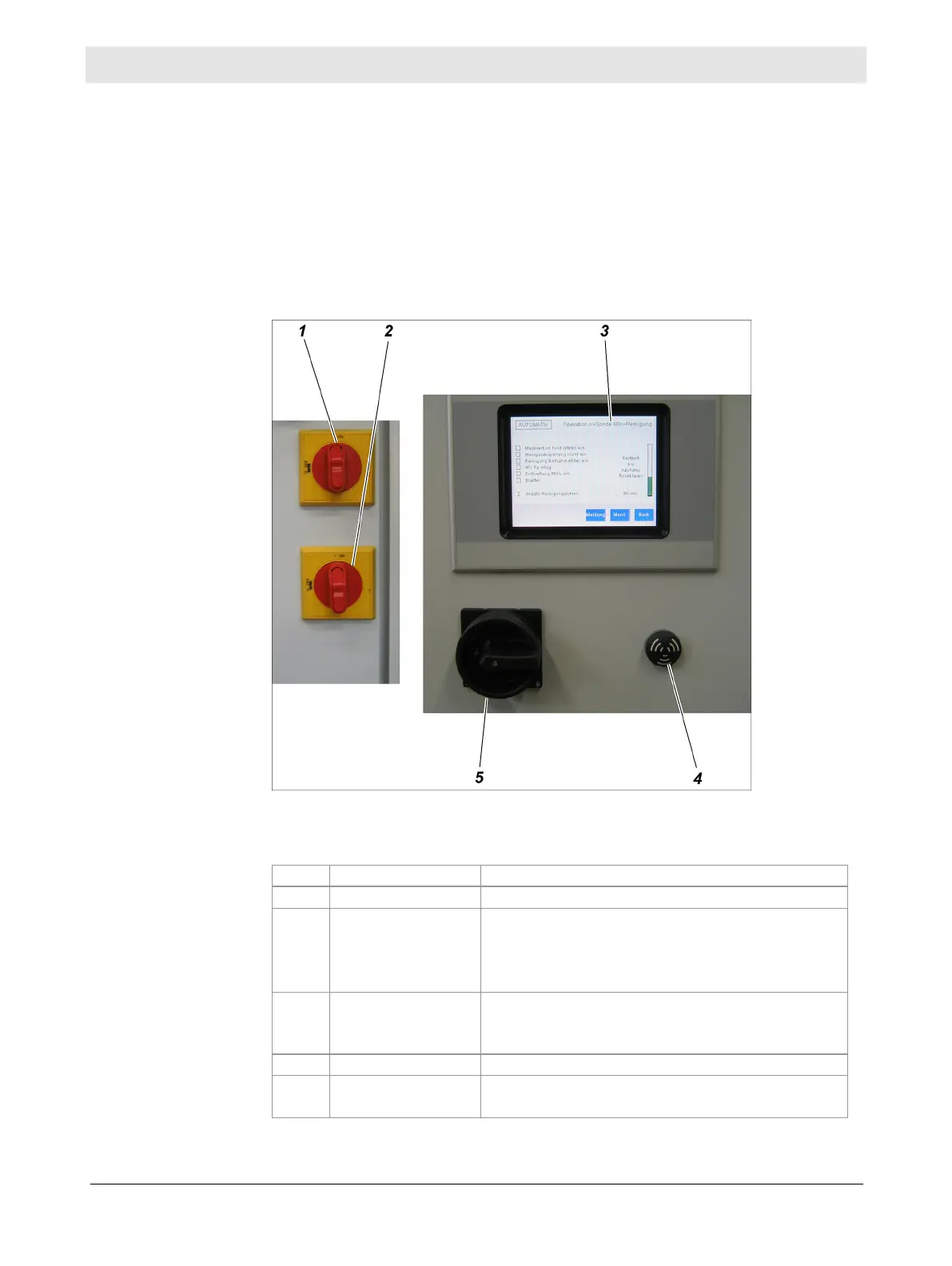

The picture shows controls on the control cabinet (side view left, front oper-
ating panel right):
The controls and displays on the control cabinet have the following function:
No.
Designation
Function
1
Main switch

Switches power supply on and off
2
Uninterruptible
power supply
switch
(optional)

Switches uninterruptible power supply on
and off
3
Touchscreen  Display and operating unit for monitoring
the system; for operation see
Description of
the controller on page 35
4
Warning buzzer

See Protective installations on page 59
5
Service switch

Puts the system into service mode

Cancels service mode
There are additional controls and displays on the retractor:
Control cabinet
Controls on the
control cabinet
Function of controls
Other controls
