26 SensyMaster FMT430, FMT450 THERMAL MASS FLOWMETER | OI/FMT430/450-EN REV. B
4 Product identification
Name plate
Note
The name plates displayed are examples. The device
identification plates affixed to the device can differ from this
representation.
1
Type designation
2
CE mark
3
Power supply
4
IP- / NEMA IP rating
5
Ambient temperature range
(T
amb
)
6
Sensor element design
7
Sensor installation length
8
Wetted material
9
Sensor connection
j
Measuring medium temperature
range (T
medium
)
k
‘Read operating instruction’
symbol
j
‘Hot surface’ symbol
m
‘Disposal’ symbol
n
Manufacturer’s address
o
Manufacturing date
(month/year)
p
Ex marking
q
Device firmware update field
r
Device firmware revision
s
Order code
t
Serial number

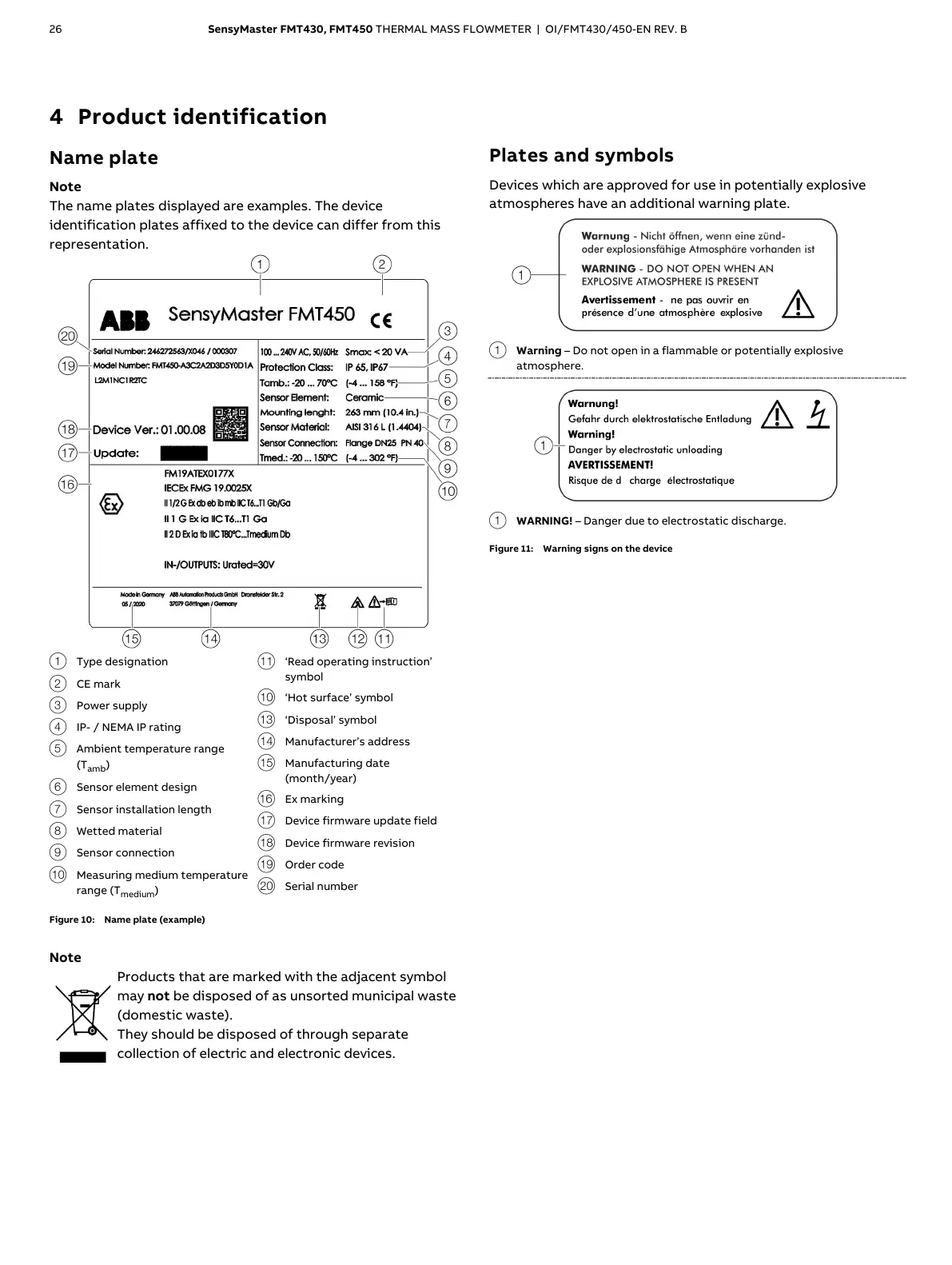

Figure 10: Name plate (example)
Note
Products that are marked with the adjacent symbol
may
not be disposed of as unsorted municipal waste
(domestic waste).
They should be disposed of through separate
collection of electric and electronic devices.
Plates and symbols
Devices which are approved for use in potentially explosive
atmospheres have an additional warning plate.
1
Warning – Do not open in a flammable or potentially explosive
atmosphere.
1
WARNING! – Danger due to electrostatic discharge.
Figure 11: Warning signs on the device
