Connection to integral mount design
Dual- compartment housing
Single-compartment housing
1
Terminals for power supply
2
Cover for power supply terminals
3
Terminals for inputs and outputs
4
Terminal for potential equalization
5
LCD indicator
6
Bracket for LCD indicator (park position)

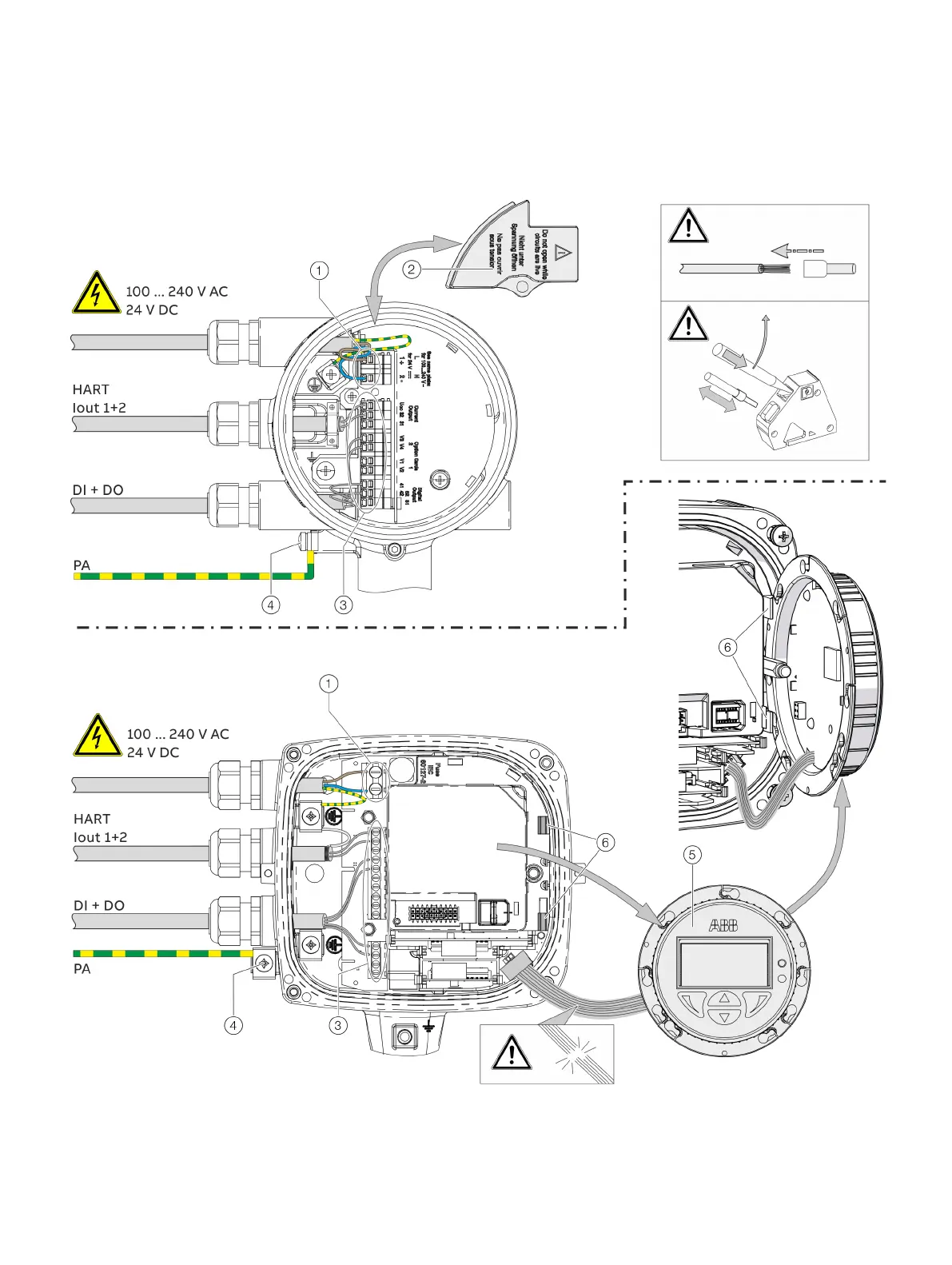

Figure 59: Connection to device (example), PA = potential equalization
