ABB SensyMaster FMT430 - Welding Adapter with Threaded Connection in Accordance with DIN 11851

36 SensyMaster FMT430, FMT450 THERMAL MASS FLOWMETER | OI/FMT430/450-EN REV. B
… 6 Installation
… Assembly of the welding adapter with flange or threaded connector

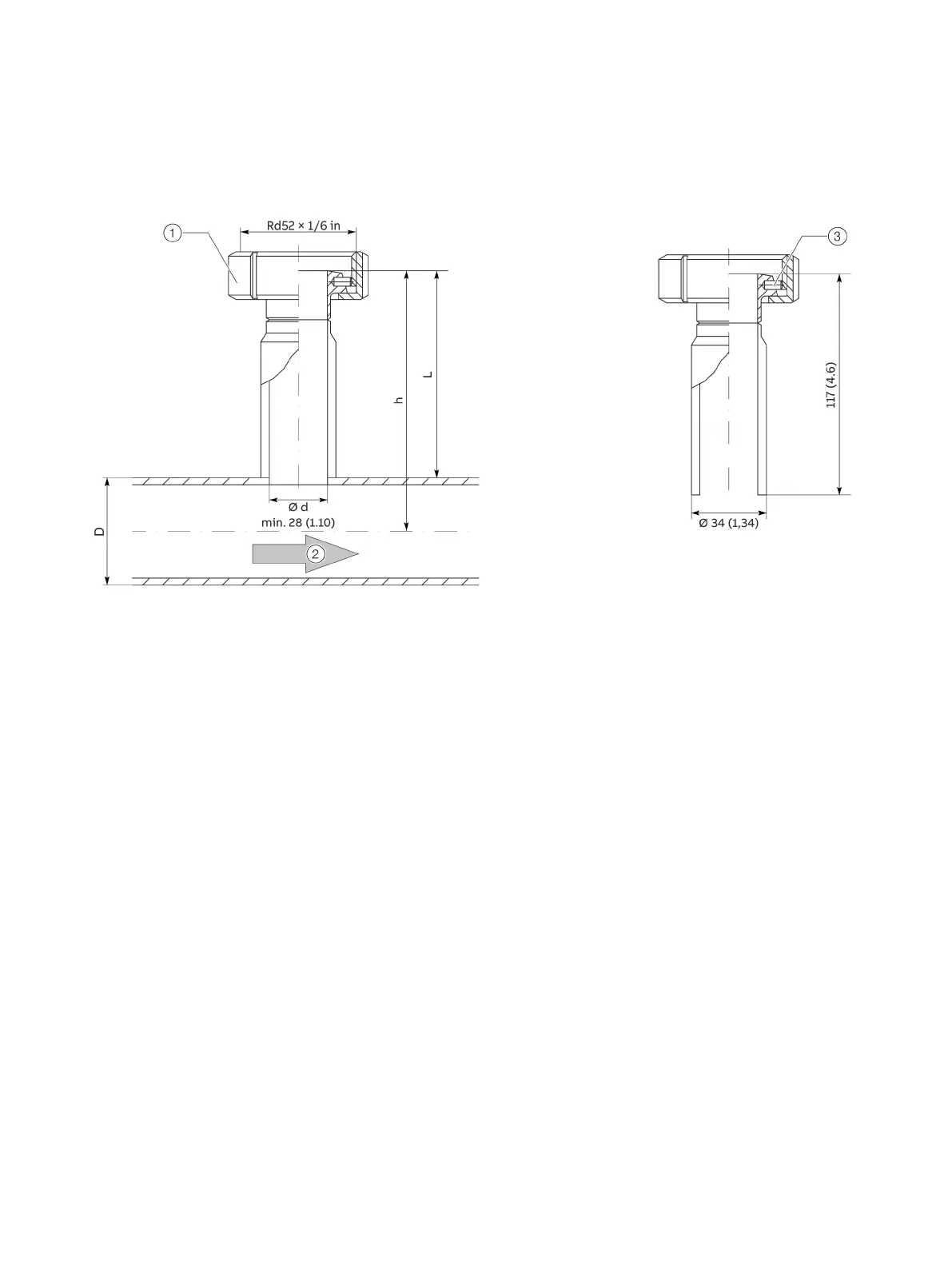

Welding adapter with threaded connection in accordance with DIN 11851
Dimensions in mm (in)
1
Union nut
2
Flow direction
3
Centering pin
Figure 22: Dimensions in mm (in)
