ABB SensyMaster FMT430 - Connection to Remote Mount Design; Transmitter

66 SensyMaster FMT430, FMT450 THERMAL MASS FLOWMETER | OI/FMT430/450-EN REV. B
Connection to remote mount design
Transmitter
Dual- compartment housing
A
Upper terminal box (back side)
B
Lower terminal box
C
Signal cable to sensor
1
Terminals for power supply
2
Cover for power supply terminals
3
Terminals for signal cable
4
Terminals for inputs and outputs
5
Terminal for potential equalization

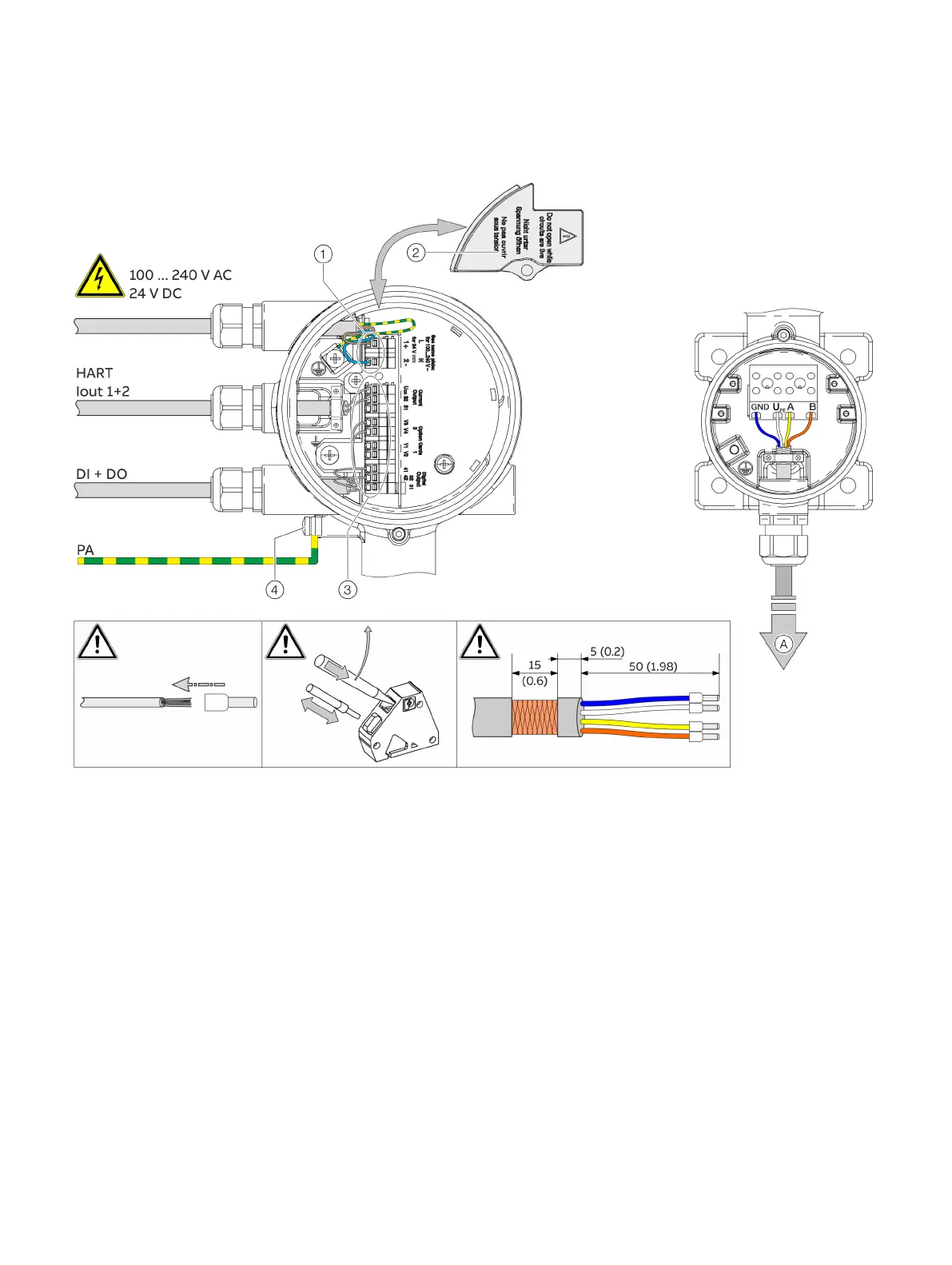

Figure 60: Electrical connection to transmitter in remote mount design [example, dimensions in mm (in)]
