52 SensyMaster FMT430, FMT450 THERMAL MASS FLOWMETER | OI/FMT430/450-EN REV. B
… 6 Installation
… Installing the plug-in cards
1
Cover
2
LCD indicator
3
Frontend board (FEB, with integral mount design only)
4
Slot OC2
5
Slot OC1
6
Plug-in cards

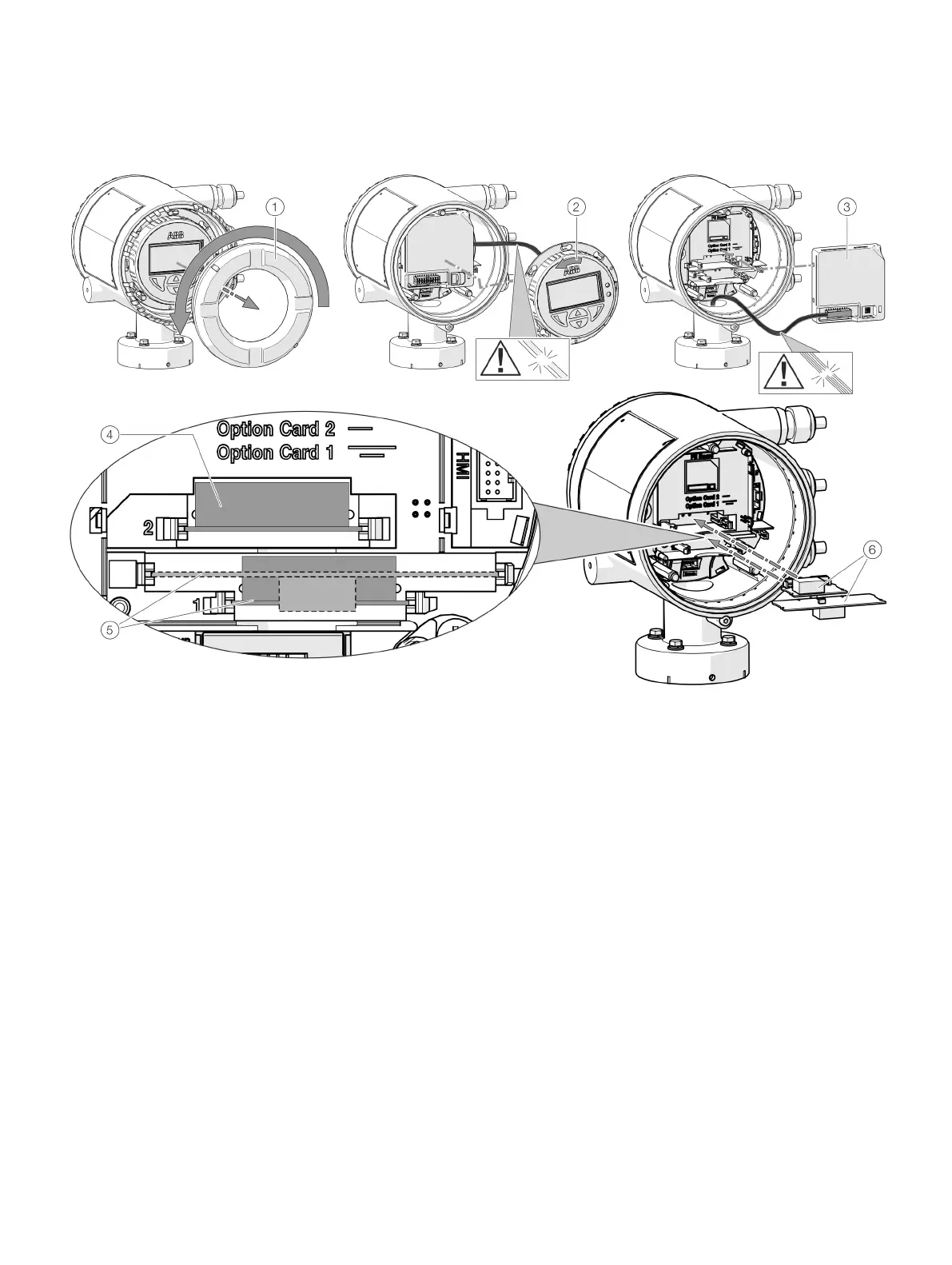

Figure 38: Installation of plug-in cards (example, dual-compartment housing)
